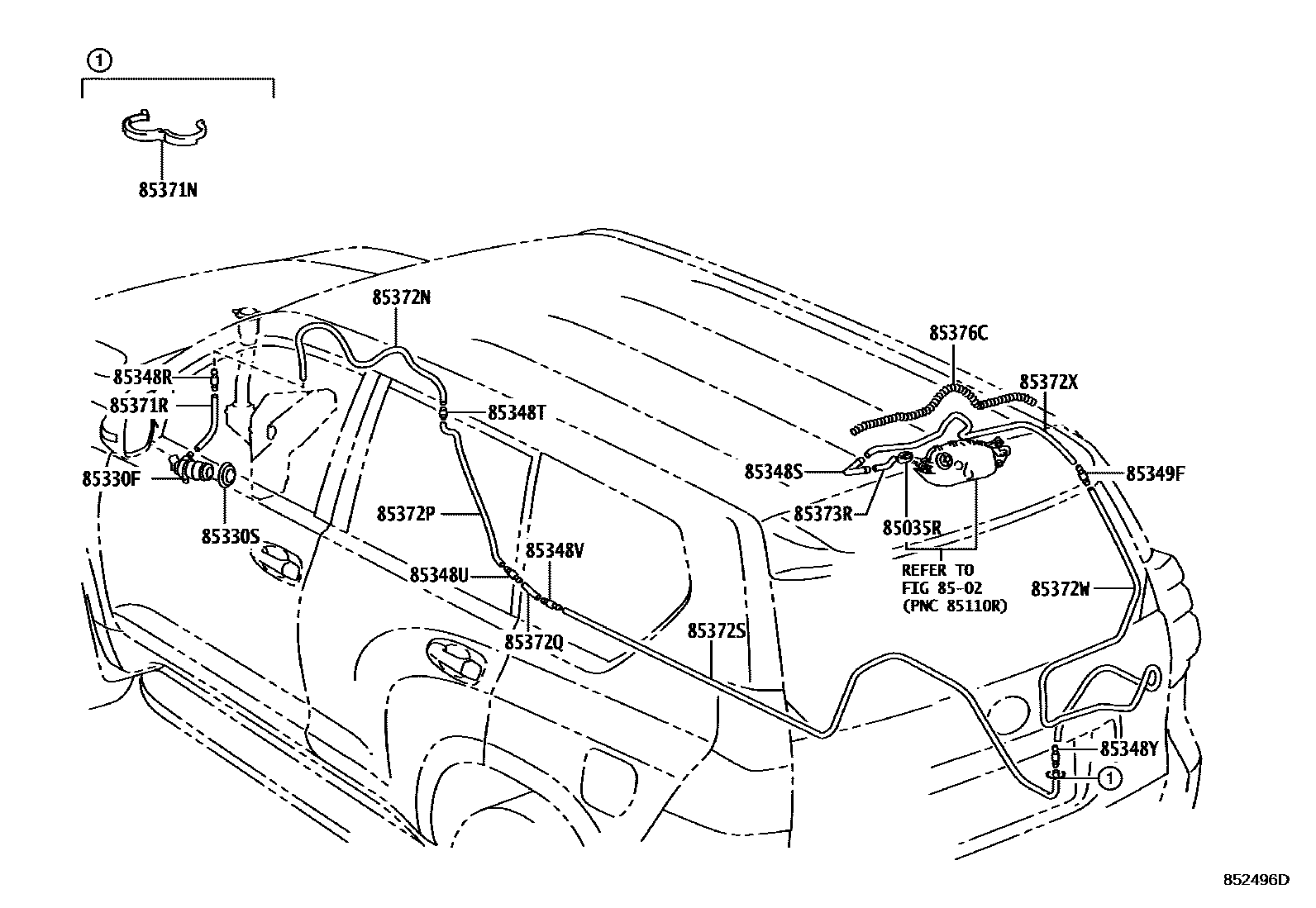

REAR WASHER
8502
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=240
L=240,TX-L PACKAGE
L=240,TX-L NAVI PACKAGE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1100
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=520
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=50
L=50,SPARE TIRE-WITH(BACK DOOR)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3250
L=3250,SPARE TIRE-WITH(BACK DOOR)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1750
L=1810,SPARE TIRE-WITH(BACK DOOR)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=470)
L=1450(*H,L=180),SPARE TIRE-WITH(BACK DOOR)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=25)
L=1450(*H,L=25),SPARE TIRE-WITH(BACK DOOR)
85376CSPRING, WASHER HOSE
21 parts on this diagram · 2 diagrams in section
