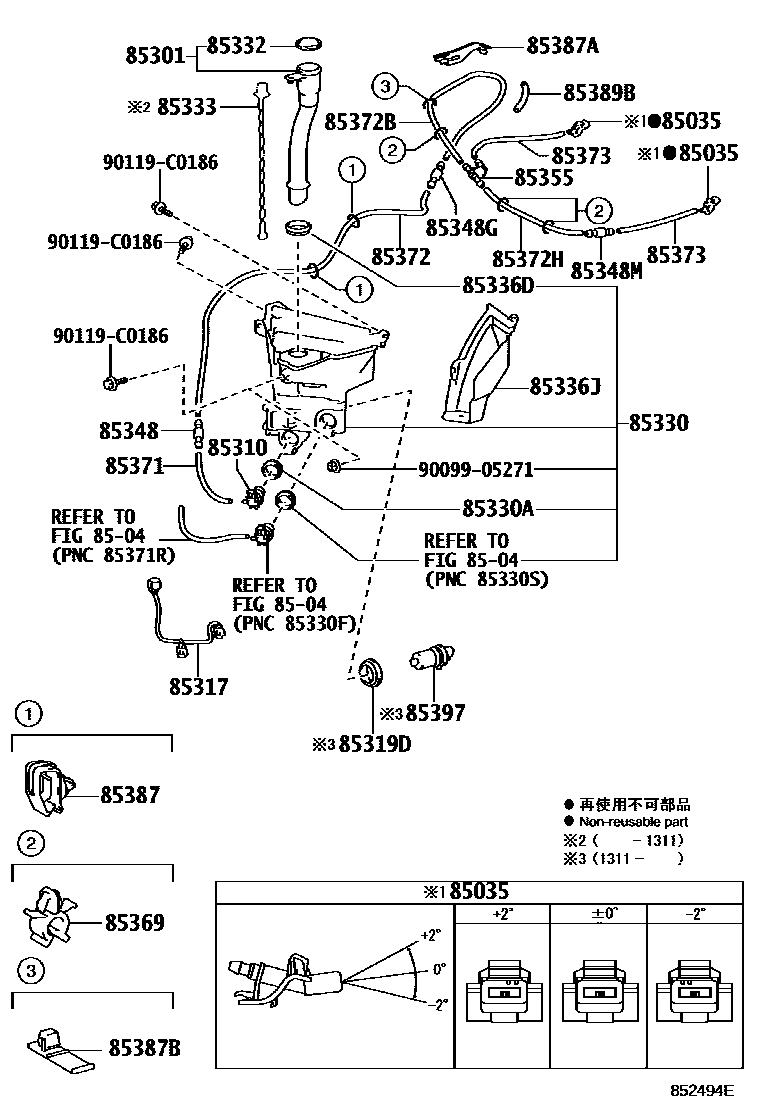

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE -2
ANGLE +2
ANGLE +2
8504
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85317WIRING ASSY, WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
TX-L NAVI PACKAGE
TX-L PACKAGE
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=160
L=160,TX-L PACKAGE
L=160,TX-L NAVI PACKAGE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1130
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1010
L=90
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=470
L=40
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=270
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
9009905271
main90099-05271
90119C0186
main90119-C0186
29 parts on this diagram · 4 diagrams in section
