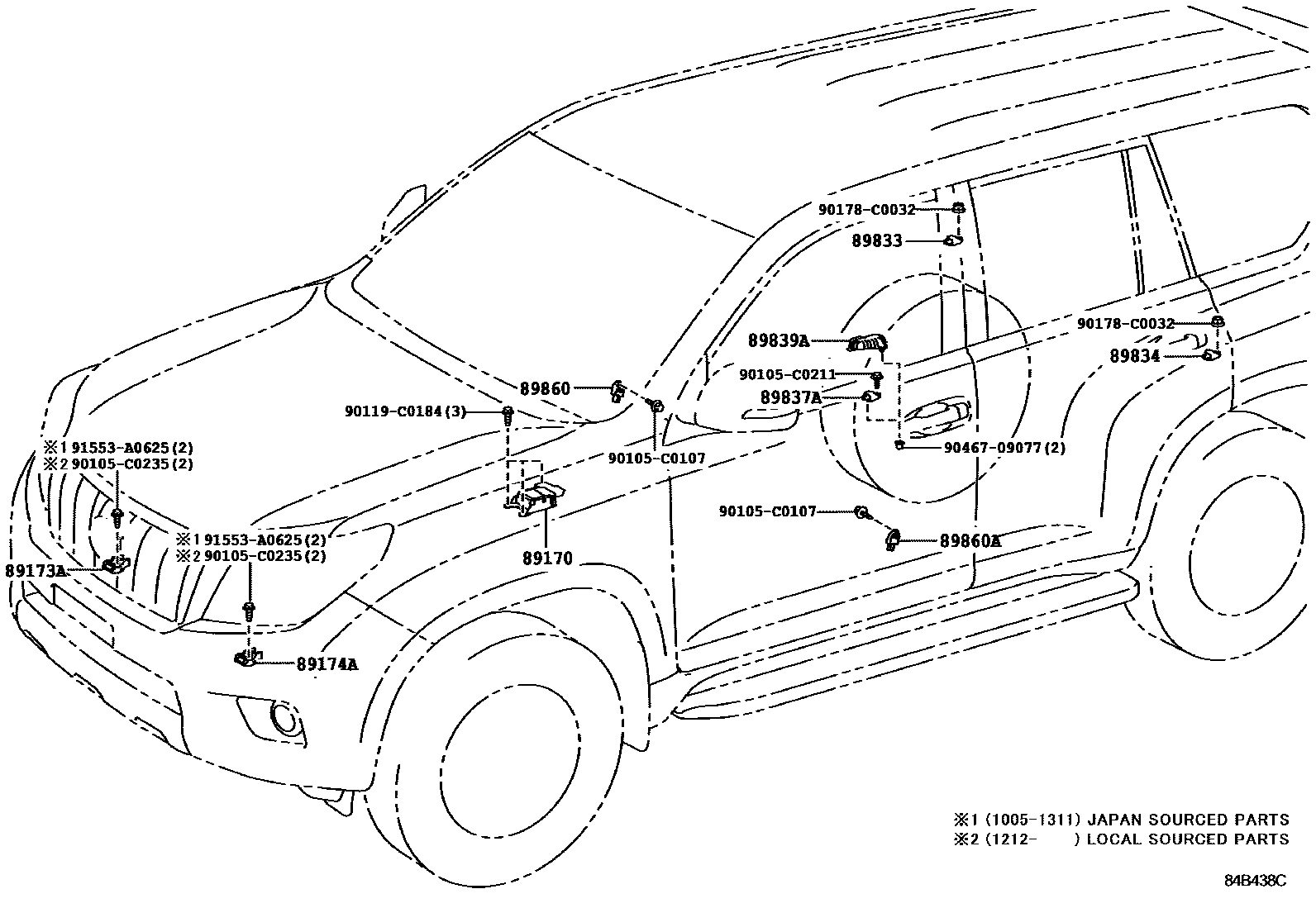

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-0G010iGRJ150201005-201311

main89170-0G020iGRJ150,TRJ150201311-201711

main89170-0G030iGRJ152201711-202006

89173ASENSOR, AIRBAG, FRONT RH

main89173-09660iGRJ150201005-201012

sub89173-09810

main89173-09810iGRJ150201012-202006

89174ASENSOR, AIRBAG, FRONT LH

main89173-09660iGRJ150201005-201012

sub89173-09810

main89173-09810iGRJ150201012-202006

89833SENSOR, AIRBAG, REAR RH

main89831-0G020iGRJ150201005-201011

sub89831-0G040

main89831-0G040iGRJ150201012-202006

89834SENSOR, AIRBAG, REAR LH

main89831-0G020iGRJ150201005-201011

sub89831-0G040

main89831-0G040iGRJ150201012-202006

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89837-0G010iGRJ150201005-201011

sub89837-0G020

main89837-0G020iGRJ150201012-202006

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-60010iGRJ150201005-202006

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0G010iGRJ150201005-201011

sub89831-0G030

main89831-0G030iGRJ150201012-202006

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0G010iGRJ150201005-201011

sub89831-0G030

main89831-0G030iGRJ150201012-202006

90105C0107

main90105-C0107

90105C0211

main90105-C0211

90105C0235

main90105-C0235

90119C0184

main90119-C0184

90178C0032

main90178-C0032

9046709077

main90467-09077

91553A0625

main91553-A0625

16 parts on this diagram · 1 diagram in section
