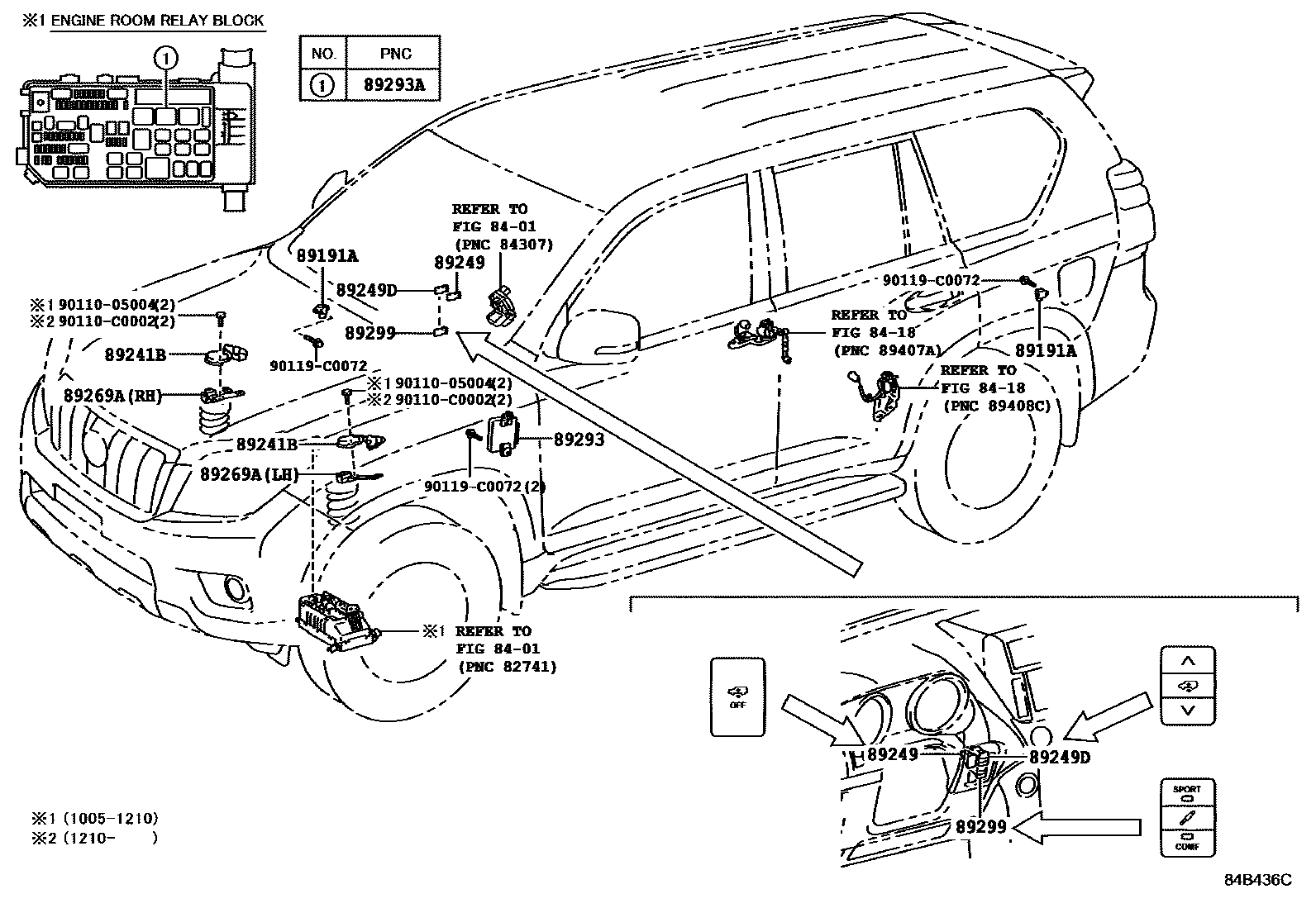

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

8401

8418

89191ASENSOR, ACCELERATION

89241BACTUATOR, ABSORBER CONTROL

89249SWITCH, ABSORBER CONTROL

main89249-60030

main89249-60040

89249DSWITCH, ABSORBER CONTROL NO.2

89269ABRACKET, SUSPENSION CONTROL

89293COMPUTER, SUSPENSION CONTROL

main90987-T2004

main89293-60060

main89293-60061

main89293-60062

main89293-60063

main89293-60120

89293ARELAY, SUSPENSION CONTROL

89299SWITCH, SUSPENSION CONTROL

main89299-0G010

main89299-60080

9011005004

main90110-05004

90110C0002

main90110-C0002

90119C0072

main90119-C0072

13 parts on this diagram · 2 diagrams in section
