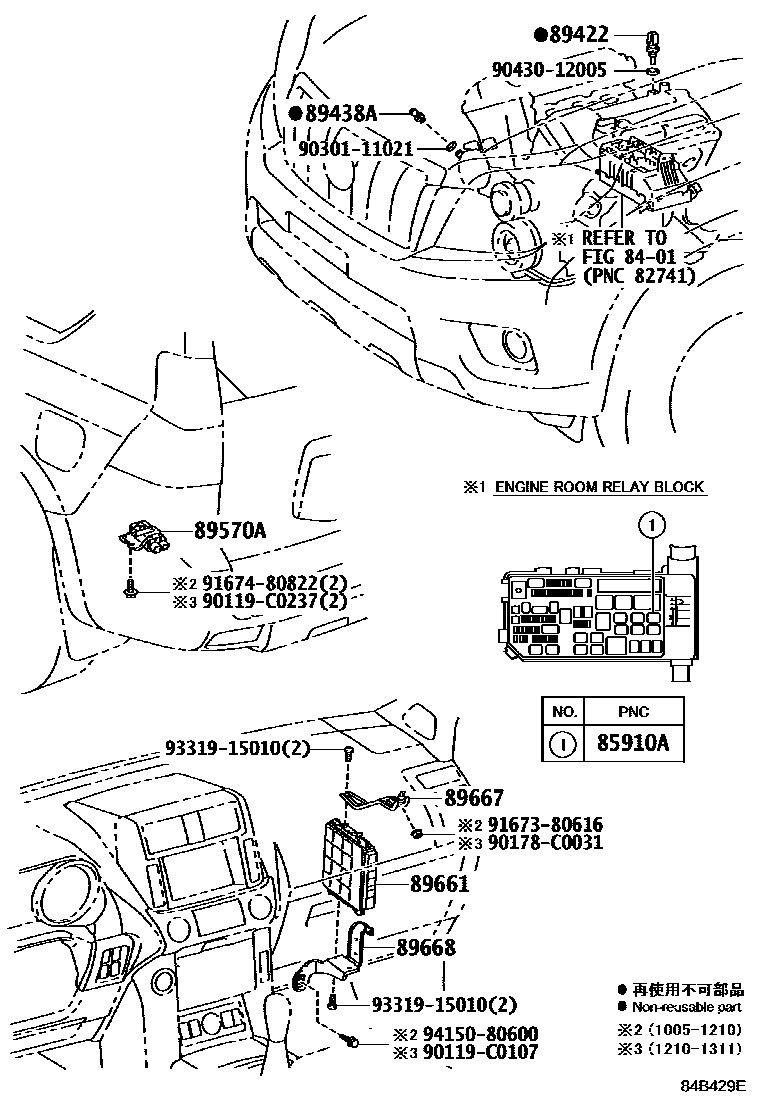

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-T2005iGRJ150,TRJ150201005-201711

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRJ150201005-201711

main89422-47010iGRJ152201509-202006

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iTRJ15#201503-201610

main89438-71010iTRJ152201611-201711

main89448-34020iGRJ150201005-201509

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60170iGRJ150201005-201509

main89570-60230iGRJ152201509-202006

89661COMPUTER, ENGINE CONTROL

main89661-0G010iGRJ150201311-201509

main89661-0G020iGRJ152201509-201711

main89661-0G030iTRJ152..5F201509-201711

main89661-0G040iTRJ152..6FC201509-201711

sub89661-0G041

main89661-0G050iGRJ152201711-202006

DENSO

main89661-60L00iGRJ150201005-201208

main89661-60P90iGRJ150201208-201311

main89661-60X70iTRJ150..5F201503-201509

main89661-60X80iTRJ150..4FC201503-201509

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60270iGRJ150201005-201509

main89667-60290iGRJ152201509-202006

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60290iGRJ150201005-201509

main89668-60300iGRJ152,TRJ152201509-202006

90119C0107

main90119-C0107

90119C0237

main90119-C0237

90178C0031

main90178-C0031

9030111021

main90301-11021

9043012005

main90430-12005

9167380616

main91673-80616

9167480822

main91674-80822

9331915010

main93319-15010

9415080600

main94150-80600

17 parts on this diagram · 3 diagrams in section
