METER

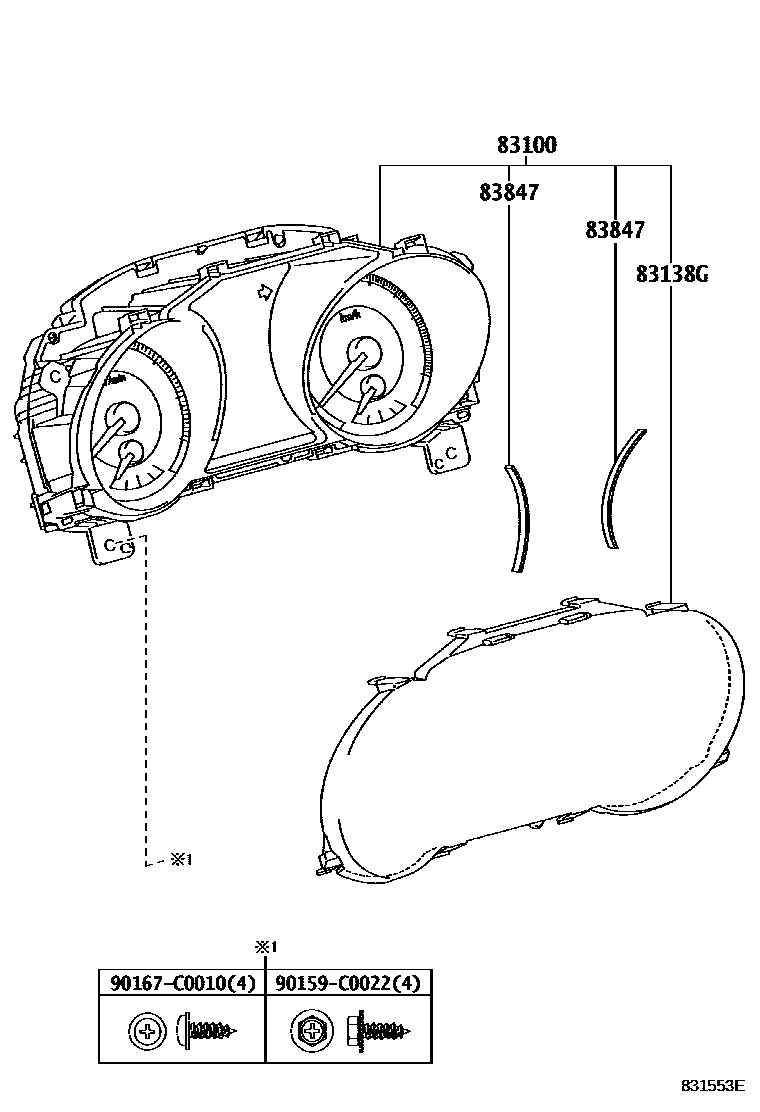

Parts diagram

83100METER ASSY, COMBINATION

main83800-0G010i201005-201106

main83800-0G011i201107-201208

main83800-0G012i201208-201311

main83800-0G020i201005-201106

TX-L PACKAGE

main83800-0G021i201107-201208

TX-L PACKAGE

main83800-0G022i201208-201311

TX-L PACKAGE

main83800-0G040i201311-201509

main83800-0G050i201311-201509

TX-L PACKAGE

main83800-0G060i201509-201711

main83800-0G070i201509-201711

TX-L PACKAGE

main83800-0G080i201509-201711

main83800-0G090i201509-201711

main83800-0G100i201711-201802

YAZAKI

main83800-0G101i201803-202006

YAZAKI

main83800-0G110i201711-201802

YAZAKI,TX-L NAVI PACKAGE

main83800-0G110i201711-201802

YAZAKI

main83800-0G110i201711-201802

YAZAKI,TX-L PACKAGE

main83800-0G111i201803-201911

YAZAKI

main83800-0G111i201803-201911

YAZAKI,TX-L PACKAGE

main83800-0G111i201803-201911

YAZAKI,TX-L NAVI PACKAGE

main83800-0G130i201911-202006

YAZAKI

main83800-0G130i201911-202006

YAZAKI,TX-L NAVI PACKAGE

main83800-0G130i201911-202006

YAZAKI,TX-L PACKAGE

main83800-6AM90i201503-201509

main83800-6AN00i201503-201509

83138GGLASS, COMBINATION METER

main83852-0G040i201311-201711

main83852-0G050i201311-201711

TX-L PACKAGE

main83852-60M20i201005-201509

main83852-60P80i201005-201311

TX-L PACKAGE

main83852-6BL00i201711-202006

main83852-6BP10i201711-202006

TX-L PACKAGE

main83852-6BP10i201711-202006

TX-L NAVI PACKAGE

83847CUSHION, COMBINATION SPEEDOMETER, NO.1

main83847-0G040i201311-201711

main83847-60P80i201005-201509

90159C0022

main90159-C0022

90167C0010

main90167-C0010

5 parts on this diagram · 3 diagrams in section
