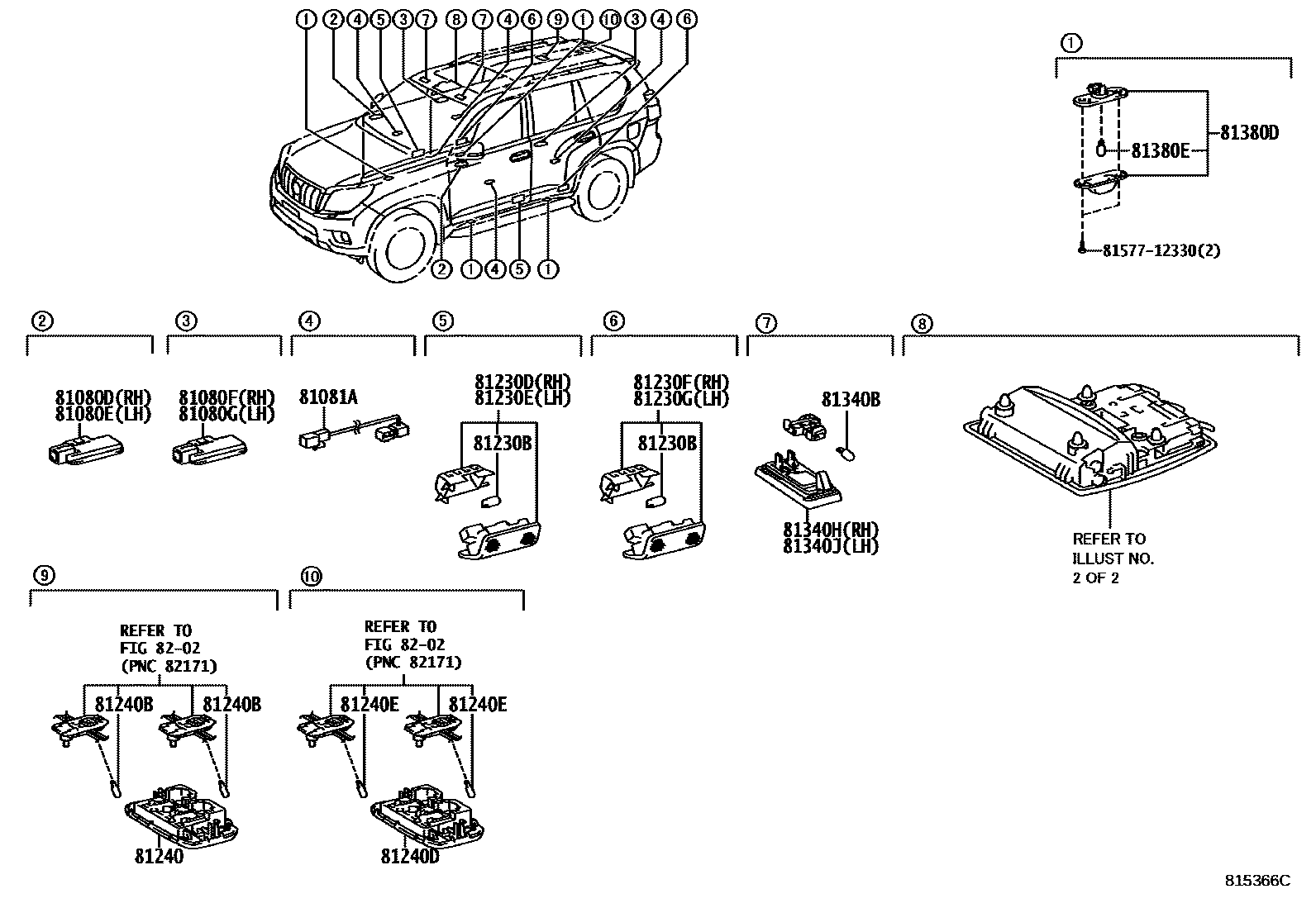

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
AUDIO-AVN & JBL & 14SPEAKER
TX-L PACKAGE&VX LEATHER PACKAGE&VXCOSM
VX-L COLOR LEATHER & COSM.PACK
VX-L COLOR LEATHER & COSM.PACK&AUDIO-AVN & JBL & 14SPEAKER
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
VX-L COLOR LEATHER & COSM.PACK
VX-L COLOR LEATHER & COSM.PACK&AUDIO-AVN & JBL & 14SPEAKER
AUDIO-AVN & JBL & 14SPEAKER
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
sub81080-60250
TX-L PACKAGE&VX LEATHER PACKAGE&VXCOSM&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
TX-L PACKAGE&VX COLOR LEATHER & COSM.PACK&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLATPOWER
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
12V 5W
81240DLAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,FLAXEN,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
81240EBULB, ROOM LAMP, NO.2
12V 8W
12V 5W
12V 5W,REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
81340BBULB (FOR VANITY LAMP)
12V 8W
81340HLAMP ASSY, VANITY, RH
SAND BEIGE,TRIM0#
81340JLAMP ASSY, VANITY, LH
SAND BEIGE,TRIM0#
81380DLAMP ASSY, STEP
STD PACKAGE
FLEET PACK
81380EBULB (FOR STEP LAMP)
FLEET PACK
STD PACKAGE
8202
8157712330
main81577-12330
22 parts on this diagram · 4 diagrams in section
