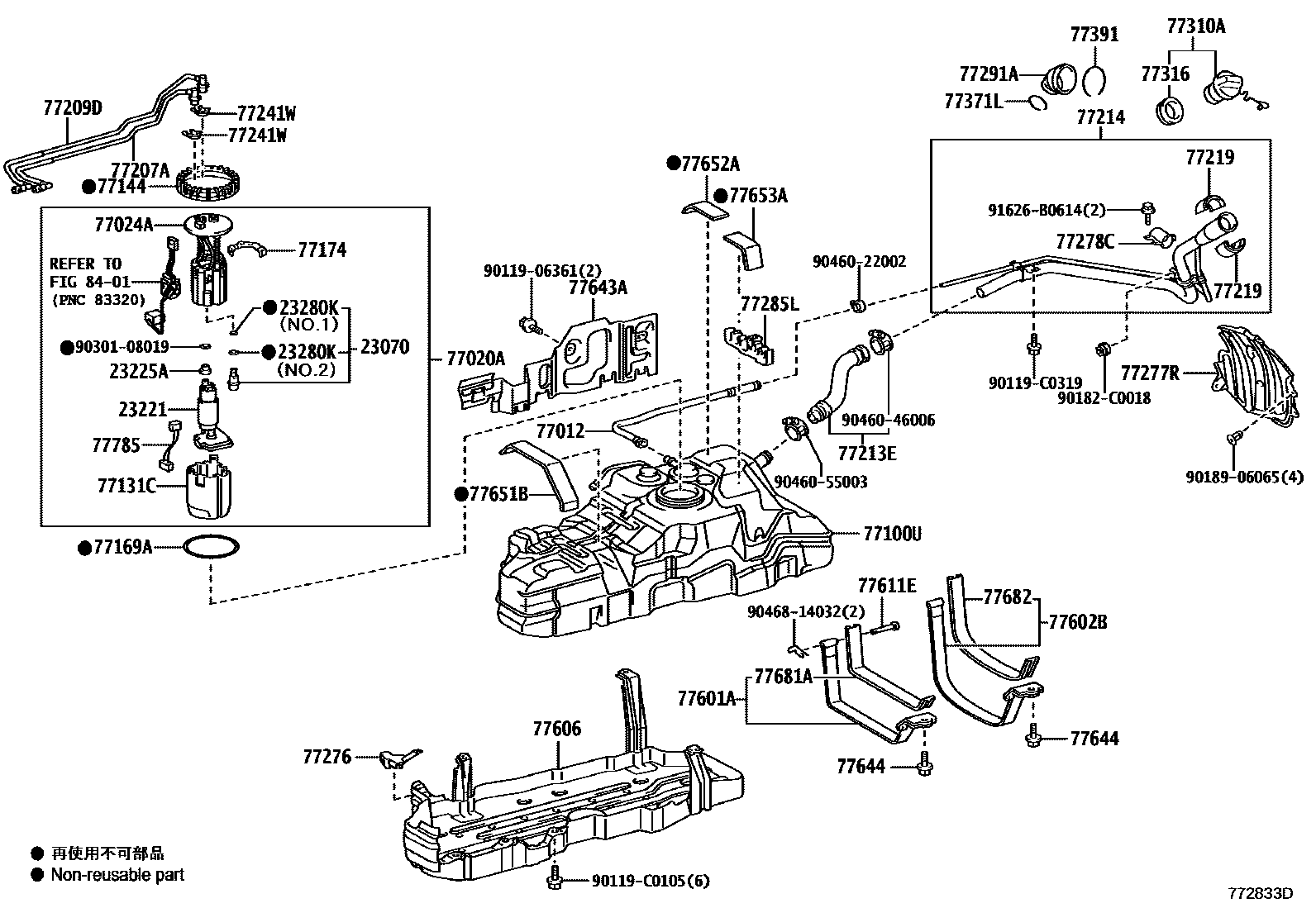

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
MARK 23070-31030
MARK 23070-36010
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77207ATUBE SUB-ASSY, FUEL RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77214PIPE, FUEL TANK FILLER
77219COVER, FUEL TANK FILLER PIPE
77241WCLIP, TUBE JOINT
77276PROTECTOR, FUEL HOSE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77285LCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
(L)
(J)
77371LRING, FUEL TANK FILLER PIPE SHIELD
77391RING, FUEL INLET BOX
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611EPIN, FUEL TANK BAND
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
8401
9011906361
main90119-06361
90119C0105
main90119-C0105
90119C0319
main90119-C0319
90182C0018
main90182-C0018
9018906065
main90189-06065
9030108019
main90301-08019
9046022002
main90460-22002
9046046006
main90460-46006
9046055003
main90460-55003
9046814032
main90468-14032
91626B0614
main91626-B0614
51 parts on this diagram · 9 diagrams in section
