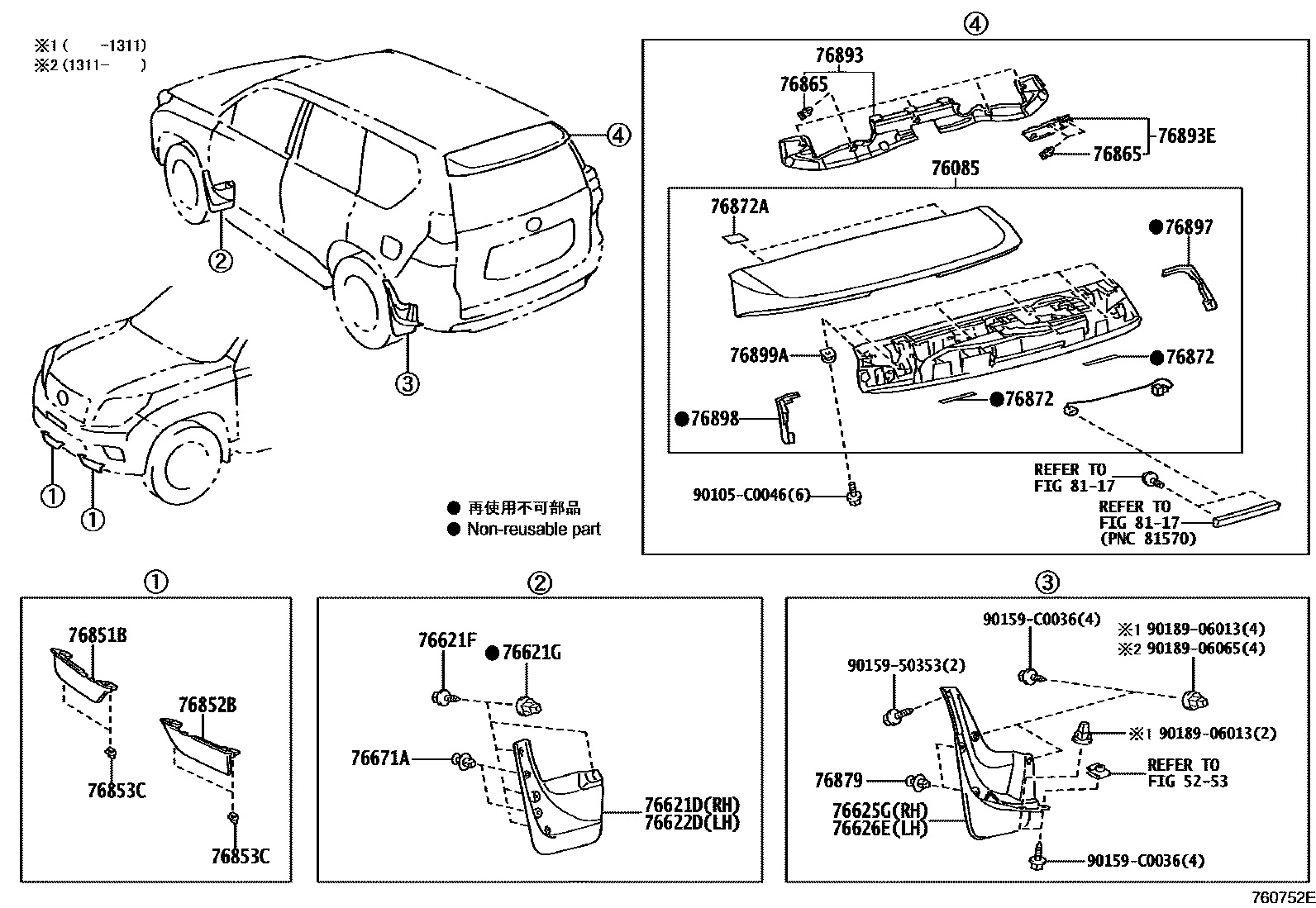

SPOILER & SIDE MUDGUARD
5253
76085SPOILER SUB-ASSY, REAR
SUPER WHITE 2,040
SILVER ME.,1F7
DK.STEEL ME.,1H2
BLACK,202
GREEN M.M.,6V2
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME,1F7
BLACK,202
ATTITUDE BLACK MC.,218
BRONZE M.M,4T3
DK.GREEN.MC,6V4
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
VINTAGE BROWN PEARL CS.,4X4
DK.GREEN MC.,6V4
76621DMUDGUARD, FRONT FENDER, RH
76621FSCREW, NO.1
76621GGROMMET, NO.1
76622DMUDGUARD, FRONT FENDER, LH
76625GMUDGUARD, QUARTER PANEL, REAR RH
SUPER WHITE 2,040
SILVER ME.,1F7
DK. STEEL MC.,1H2
BLACK,202
GREEN M.M.,6V2
76626EMUDGUARD, QUARTER PANEL, REAR LH
SUPER WHITE 2,040
SILVER ME.,1F7
DK. STEEL MC.,1H2
BLACK,202
GREEN M.M.,6V2
76851BSPOILER, FRONT, RH
76852BSPOILER, FRONT, LH
76853CRETAINER, FRONT SPOILER, NO.1
76865RETAINER, REAR SPOILER, NO.1
SPARE TIRE-WITH(BACK DOOR)
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76879CLIP, REAR SPOILER, NO.1
76893COVER, REAR SPOILER, NO.1
76893ECOVER, REAR SPOILER, RH
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76899ANUT, REAR SPOILER
8117
90105C0046
main90105-C0046
9015950353
main90159-50353
90159C0036
main90159-C0036
9018906013
main90189-06013
9018906065
main90189-06065
27 parts on this diagram · 2 diagrams in section
