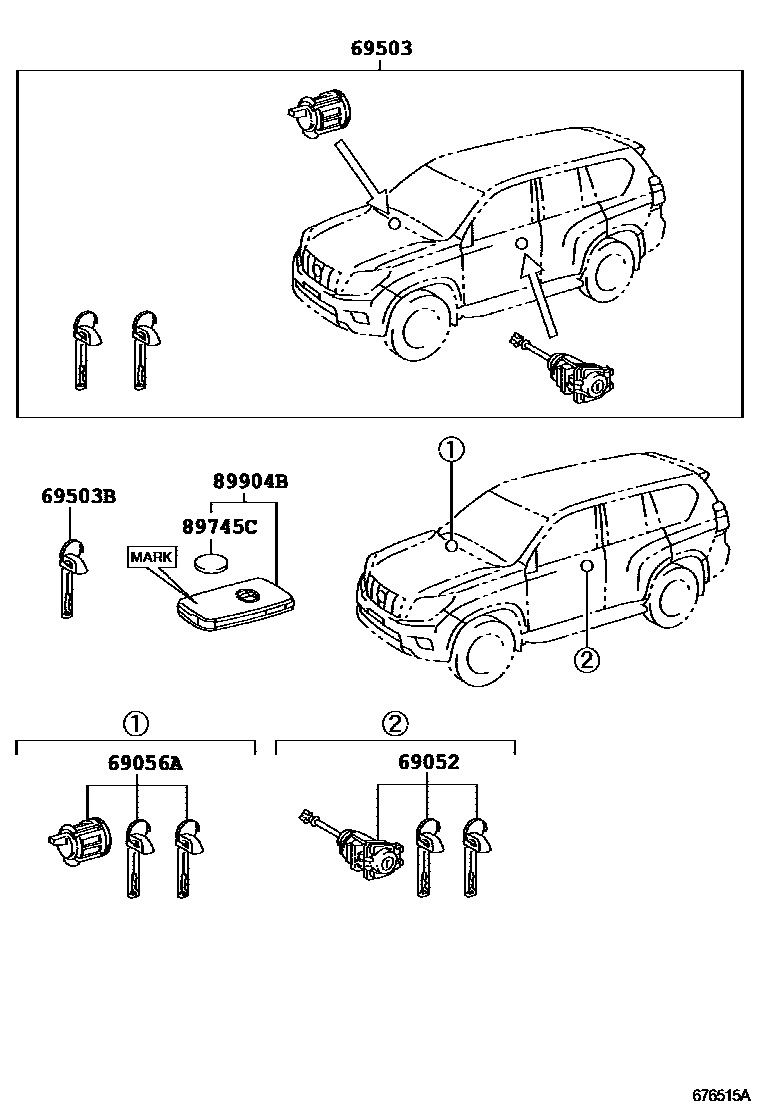

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0G010iGRJ150201005-201208

main69052-0G020iGRJ150201208-201711

main69052-0G030iGRJ152201711-202006

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-0G010iGRJ150201005-201208

main69056-0G020iGRJ150201208-201711

main69056-0G030iGRJ152201711-202006

69503CYLINDER SET, LOCK

main69005-0G010iGRJ150201005-201208

main69005-0G020iGRJ150201208-201711

main69005-0G030iGRJ152201711-202006

69503BKEY, CUT

main69515-12310iGRJ152,TRJ152201208-201711

MASTER KEY,W(*68)

main69515-30310iGRJ150201005-201208

MASTER KEY,W(*68)

main69515-47020iGRJ152201711-202006

MASTER KEY,W(*68)

sub69515-16100

89745CBATTERY, TRANSMITTER

main89745-45010iGRJ152..TX201711-202006

CR2032,TX-L PACKAGE

sub89745-50020

main89745-45010iGRJ150201208-201711

sub89745-50020

main89745-45010iGRJ152..TX201711-202006

CR2032,TX-L PACKAGE&SPARE TIRE-WITH(BACK DOOR)

sub89745-50020

main89745-45010iGRJ152..TX201711-202006

CR2032,TX-L NAVI PACKAGE

sub89745-50020

main89745-45010iGRJ152..TX201711-202006

CR2032,TX-L NAVI PACKAGE&SPARE TIRE-WITH(BACK DOOR)

sub89745-50020

main89745-45010iGRJ152..TX201711-202006

CR2032

sub89745-50020

main89745-50020iGRJ152..TX201711-201911

CR2032

main89745-52020iGRJ150201005-201208

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-0G010iGRJ150201005-201208

MARK 14ADK-01

sub89904-0G011

main89904-0G020iGRJ150201107-201110

MARK 14ACC-02

sub89904-0G021

main89904-0G030iGRJ152,TRJ152201208-201711

MARK 14AGL-02

main89904-0G050iGRJ152..VX201711-202006

TX-L NAVI PACKAGE,TYPE B: DENSO

main89904-0G050iGRJ152..TX201711-202006

TX-L PACKAGE,TYPE B: DENSO

main89904-0G050iGRJ152..TX201711-202006

TYPE B: DENSO

main89904-0G100iGRJ152..TX201711-202006

TYPE B: TOKAI RIKA

6 parts on this diagram · 3 diagrams in section
