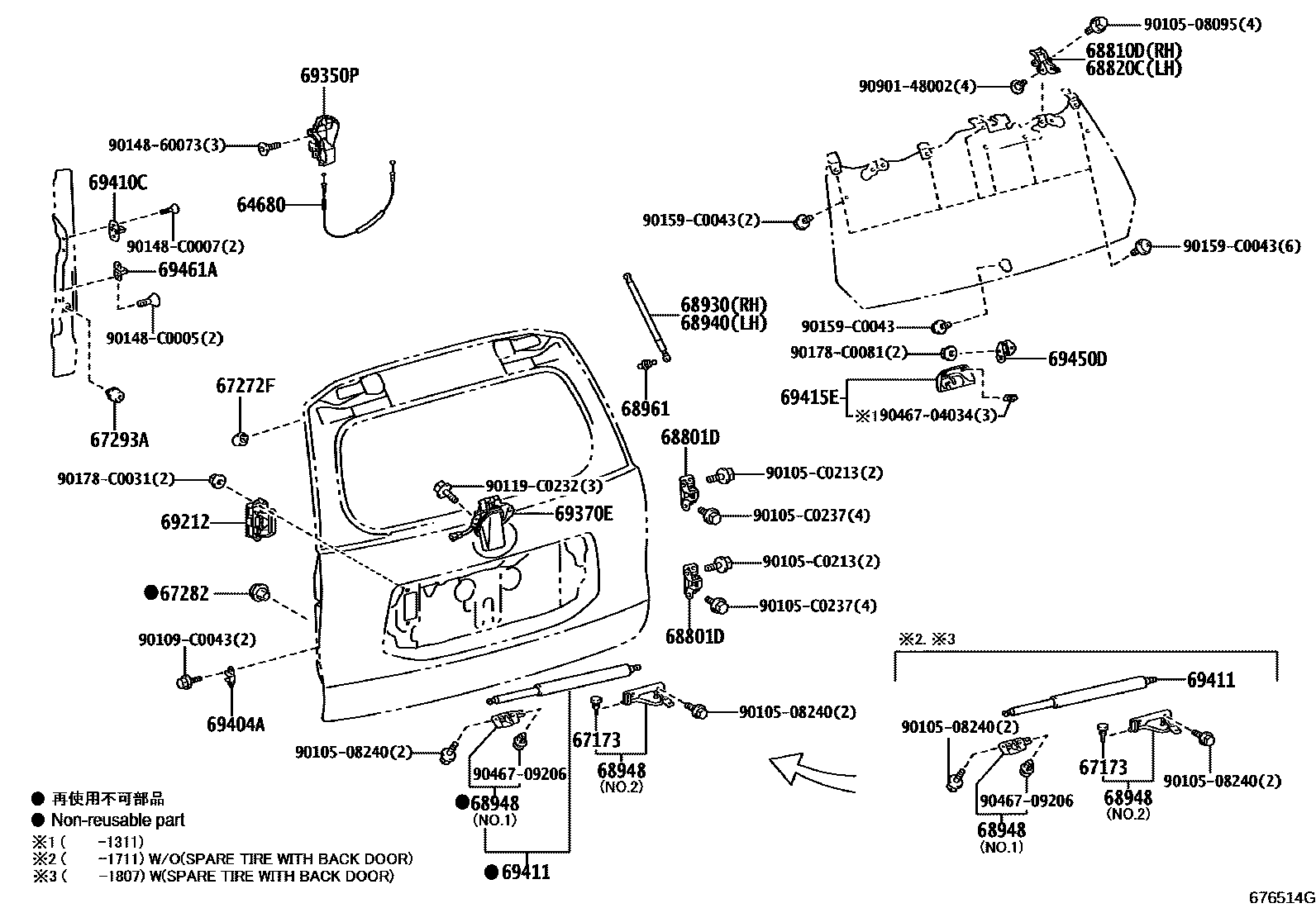

BACK DOOR LOCK & HINGE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-0G010iGRJ152,TRJ152201005-202006

67173CUSHION, BACK DOOR

main90541-03005iGRJ150201005-202006

67272FCUSHION, BACK DOOR STOPPER, NO.2

main67272-0G010iGRJ150201005-202006

67282STOPPER, BACK DOOR, NO.1

main67282-46010iGRJ150201005-202006

67293ACUSHION, BACK DOOR STOPPER

main67293-0G010iGRJ150201005-202006

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-60050iGRJ150201005-201403

sub68801-60051

main68801-60051iGRJ150,TRJ150201404-201511

sub68801-60052

main68801-60052iGRJ152201512-202006

68810DHINGE ASSY, BACK DOOR, RH

main68810-60050iGRJ150201005-201203

sub68810-60051

main68810-60051iGRJ150201204-201711

main68810-60051iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

68820CHINGE ASSY, BACK DOOR, LH

main68820-60010iGRJ150201005-201203

sub68820-60011

main68820-60011iGRJ150201204-201711

main68820-60011iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

68930STAY ASSY, BACK WINDOW, RH

main68930-0G010iGRJ150201005-201711

main68930-0G010iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

68940STAY ASSY, BACK WINDOW, LH

main68940-0G010iGRJ150201005-201711

main68940-0G010iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0G010iGRJ152201212-202006

NO.1:REFER ILLUST.

main68948-0G020iGRJ152,TRJ152201212-202006

NO.2:REFER ILLUST.

main68948-60010iGRJ150201005-201212

NO.1:REFER ILLUST.

main68948-60020iGRJ150201005-201212

NO.2:REFER ILLUST.

68961BOLT, BACK DOOR STAY

main68961-20140iGRJ150201005-201711

main68961-20140iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

69212HANDLE, BACK DOOR OUTSIDE, LH

main69190-60010iGRJ150201005-201211

sub69190-60011

main69190-60011iGRJ150201212-201502

sub69190-60012

main69190-60012iGRJ150,TRJ150201503-202006

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69110-0G010iGRJ150201005-201202

sub69110-0G011

main69110-0G011iGRJ150201203-201302

sub69110-0G012

main69110-0G012iGRJ150201303-201511

sub69110-0G013

main69110-0G013iGRJ152,TRJ152201512-202006

69370ELOCK ASSY, BACK WINDOW

main69370-60020iGRJ150201005-201711

main69370-60020iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-60011iGRJ150201005-201508

main69403-60020iGRJ152,TRJ152201509-202006

sub69403-60021

sub90119-06911

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-60020iGRJ150201005-201408

main69430-0G010iGRJ150,TRJ150201408-202006

69411CHECK, BACK DOOR

main68650-09050iGRJ152201505-202006

main68650-0G011iGRJ150201005-201111

sub68650-0G012

main68650-0G012iGRJ150,TRJ150201112-201504

sub68650-0G013

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-0G010iGRJ150,TRJ150201212-201711

main69415-0G010iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

main69415-60010iGRJ150201005-201212

69450DSTRIKER ASSY, BACK WINDOW LOCK

main69450-60050iGRJ150201005-201711

main69450-60050iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

69461ASTOPPER, BACK DOOR SIDE MALE

main69461-60010iGRJ152,TRJ152201005-202006

9010508095

main90105-08095

9010508240

main90105-08240

90105C0213

main90105-C0213

90105C0237

main90105-C0237

90109C0043

main90109-C0043

90119C0232

main90119-C0232

9014860073

main90148-60073

90148C0005

main90148-C0005

90148C0007

main90148-C0007

90159C0043

main90159-C0043

90178C0031

main90178-C0031

90178C0081

main90178-C0081

9046704034

main90467-04034

9046709206

main90467-09206

9090148002

main90901-48002

36 parts on this diagram · 1 diagram in section
