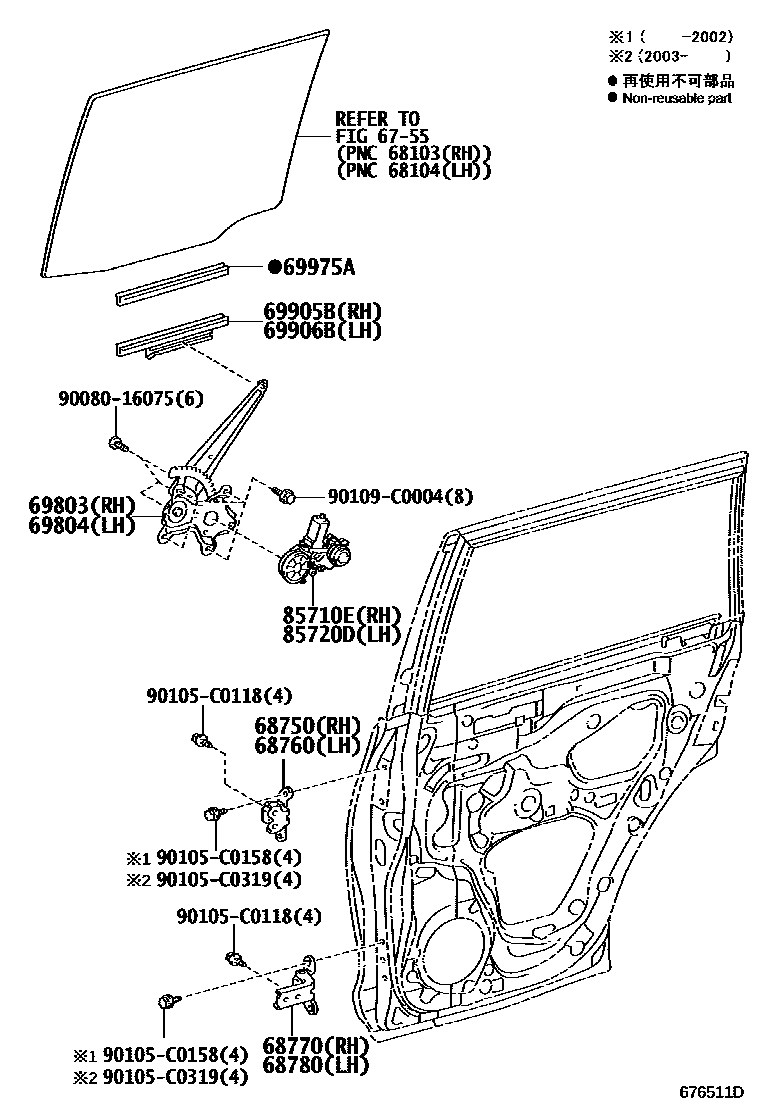

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P011iGRJ150201005-202006

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P011iGRJ150201005-202006

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D021iGRJ150201005-202006

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D021iGRJ150201005-202006

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0G010iGRJ150201005-202006

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0G010iGRJ150201005-202006

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52050iGRJ150201005-202006

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52050iGRJ150201005-202006

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iGRJ150201005-202006

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0G020iGRJ150201005-202006

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0G020iGRJ150201005-202006

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0158

main90105-C0158

90105C0319

main90105-C0319

90109C0004

main90109-C0004

17 parts on this diagram · 1 diagram in section
