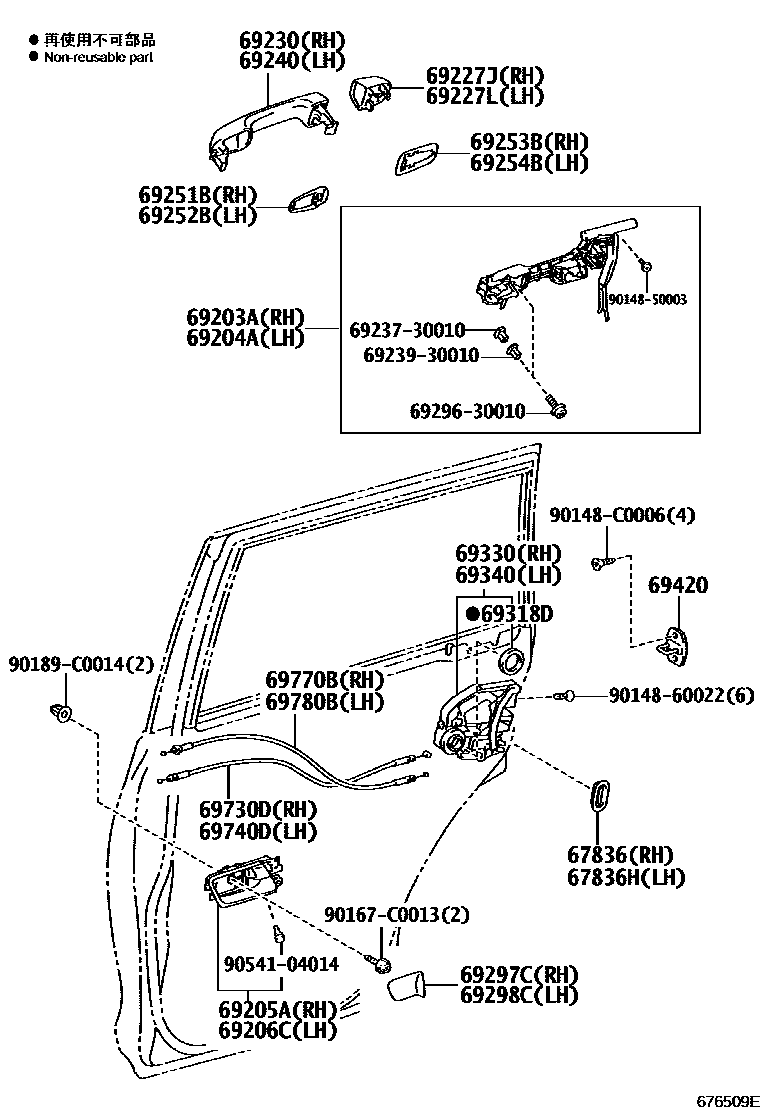

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iGRJ150201005-201607

main67836-60010iGRJ152,TRJ152201608-202006

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iGRJ150201005-201607

main67836-60010iGRJ152201608-202006

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0G010iGRJ150201005-202006

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0G010iGRJ150201005-202006

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main67605-0G010-C1iGRJ150201311-201508

BLACK,TRIM2#

sub67605-0G011

main67605-0G010-E0iGRJ150201005-201311

DK. BROWN,TRIM0#

sub67605-0G011

main67605-0G010-E2iGRJ150201311-201508

ORCHID BROWN,TRIM0#

sub67605-0G011

main67605-0G011-C1iGRJ152201509-201711

BLACK,TRIM2#

main67605-0G011-E2iGRJ152201509-201711

ORCHID BROWN,TRIM0#

main67605-0G020-C1iTRJ15#201503-201711

BLACK,TRIM2#

main67605-0G020-E1iTRJ15#201503-201711

ORCHID BROWN,TRIM0#

main67605-0G050-C0iGRJ152201711-202006

BLACK,TRIM2#

main67605-0G050-E0iGRJ152201711-202006

ORCHID BROWN,TRIM4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main67606-0G010-C1iGRJ150201311-201508

BLACK,TRIM2#

sub67606-0G011

main67606-0G010-E0iGRJ150201005-201311

DK. BROWN,TRIM0#

sub67606-0G011

main67606-0G010-E2iGRJ150201311-201508

ORCHID BROWN,TRIM0#

sub67606-0G011

main67606-0G011-C1iGRJ152201509-201711

BLACK,TRIM2#

main67606-0G011-E2iGRJ152201509-201711

ORCHID BROWN,TRIM0#

main67606-0G020-C1iTRJ15#201503-201711

BLACK,TRIM2#

main67606-0G020-E1iTRJ15#201503-201711

ORCHID BROWN,TRIM0#

main67606-0G050-C0iGRJ152201711-202006

BLACK,TRIM2#

main67606-0G050-E0iGRJ152201711-202006

ORCHID BROWN,TRIM4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69250-0G010-A0iGRJ150201005-202006

SUPER WHITE 2,040

main69250-0G010-A1iGRJ152201503-202006

WHITE PEARL CS.,070

main69250-0G010-B0iGRJ150201005-202006

SILVER ME.,1F7

main69250-0G010-B1iGRJ150201005-201311

DK. STEEL MC.,1H2

main69250-0G010-C0iGRJ150201005-201408

BLACK,202

main69250-0G010-C1iGRJ152201503-202006

ATTITUDE BLACK MC.,218

main69250-0G010-E0iGRJ15#,TRJ15#201311-201711

BRONZE M.M.,4T3

main69250-0G010-E1iGRJ152201711-202006

VINTAGE BROWN PEARL CS.,4X4

main69250-0G010-G0iGRJ150201005-201311

GREEN M.M.,6V2

main69250-0G010-G1iGRJ152201311-202006

DK.GREEN MC.,6V4

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69250-0G010-A0iGRJ15#,TRJ15#201005-202006

SUPER WHITE 2,040

main69250-0G010-A1iGRJ152201503-202006

WHITE PEARL CS.,070

main69250-0G010-B0iGRJ152201005-202006

SILVER ME.,1F7

main69250-0G010-B1iGRJ150201005-201311

DK. STEEL MC.,1H2

main69250-0G010-C0iGRJ150201005-201408

BLACK,202

main69250-0G010-C1iGRJ15#,TRJ15#201503-202006

ATTITUDE BLACK MC.,218

main69250-0G010-E0iGRJ15#,TRJ15#201311-201711

BRONZE M.M.,4T3

main69250-0G010-E1iGRJ152201711-202006

VINTAGE BROWN PEARL CS.,4X4

main69250-0G010-G0iGRJ150201005-201311

GREEN M.M.,6V2

main69250-0G010-G1iGRJ15#,TRJ15#201311-202006

DK.GREEN MC.,6V4

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-0G010-A0iGRJ152201005-202006

SUPER WHITE 2,040

main69211-0G010-A1iGRJ15#,TRJ15#201503-202006

WHITE PEARL CS.,070

main69211-0G010-B0iGRJ15#,TRJ15#201005-202006

SILVER ME.,1F7

main69211-0G010-B1iGRJ150201005-201311

DK. STEEL MC.,1H2

main69211-0G010-C0iGRJ150201005-201408

BLACK,202

main69211-0G010-C1iGRJ152201503-202006

ATTITUDE BLACK MC.,218

main69211-0G010-E0iGRJ15#,TRJ15#201311-201711

BRONZE M.M.,4T3

main69211-0G010-E1iGRJ152201711-202006

VINTAGE BROWN PEARL CS.,4X4

main69211-0G010-G0iGRJ150201005-201311

GREEN M.M.,6V2

main69211-0G010-G1iGRJ152201311-202006

DK.GREEN MC.,6V4

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-0G010-A0iGRJ15#,TRJ15#201005-202006

SUPER WHITE 2,040

main69211-0G010-A1iGRJ15#,TRJ15#201503-202006

WHITE PEARL CS.,070

main69211-0G010-B0iGRJ15#,TRJ15#201005-202006

SILVER ME.,1F7

main69211-0G010-B1iGRJ150201005-201311

DK. STEEL MC.,1H2

main69211-0G010-C0iGRJ150201005-201408

BLACK,202

main69211-0G010-C1iGRJ152201503-202006

ATTITUDE BLACK MC.,218

main69211-0G010-E0iGRJ15#,TRJ15#201311-201711

BRONZE M.M.,4T3

main69211-0G010-E1iGRJ152201711-202006

VINTAGE BROWN PEARL CS.,4X4

main69211-0G010-G0iGRJ150201005-201311

GREEN M.M.,6V2

main69211-0G010-G1iGRJ152201311-202006

DK.GREEN MC.,6V4

69251BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 RH

main69241-0G010iGRJ152201005-202006

69252BPAD, REAR DOOR OUTSIDE HANDLE, NO.1 LH

main69241-0G010iGRJ150201005-202006

69253BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH

main69242-0G010iGRJ150201005-202006

69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH

main69242-0G010iGRJ150,TRJ150201005-202006

69297CBEZEL, DOOR INSIDE HANDLE, NO.2 RH

main69297-0G010-C0iGRJ15#,TRJ15#201311-202006

BLACK,TRIM2#

main69297-0G010-E0iGRJ150201212-201311

DK. BROWN,TRIM0#

main69297-0G010-E1iGRJ15#,TRJ15#201311-201711

ORCHID BROWN,TRIM0#

main69297-0G010-E1iGRJ152201711-202006

ORCHID BROWN,TRIM4#

main69297-60020-E0iGRJ150201005-201212

DK. BROWN,TRIM0#

69298CBEZEL, DOOR INSIDE HANDLE, NO.2 LH

main69298-0G010-C0iGRJ152201311-202006

BLACK,TRIM2#

main69298-0G010-E0iGRJ150201212-201311

DK. BROWN,TRIM0#

main69298-0G010-E1iGRJ15#,TRJ15#201311-201711

ORCHID BROWN,TRIM0#

main69298-0G010-E1iGRJ152201711-202006

ORCHID BROWN,TRIM4#

main69298-60020-E0iGRJ150201005-201212

DK. BROWN,TRIM0#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGRJ152,TRJ152201005-202006

69330LOCK ASSY, REAR DOOR, RH

main69050-06111iGRJ150201005-202006

69340LOCK ASSY, REAR DOOR, LH

main69060-06111iGRJ152,TRJ152201005-202006

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0P010iGRJ150201005-202006

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0G010iGRJ150201005-202006

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0G010iGRJ150201005-202006

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0G010iGRJ150201005-202006

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0G010iGRJ150201005-202006

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6923930010PIN, BACK DOOR OUTSIDE HANDLE

main69239-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014860022

main90148-60022

90148C0006

main90148-C0006

90167C0013

main90167-C0013

90189C0014

main90189-C0014

9054104014

main90541-04014

32 parts on this diagram · 1 diagram in section
