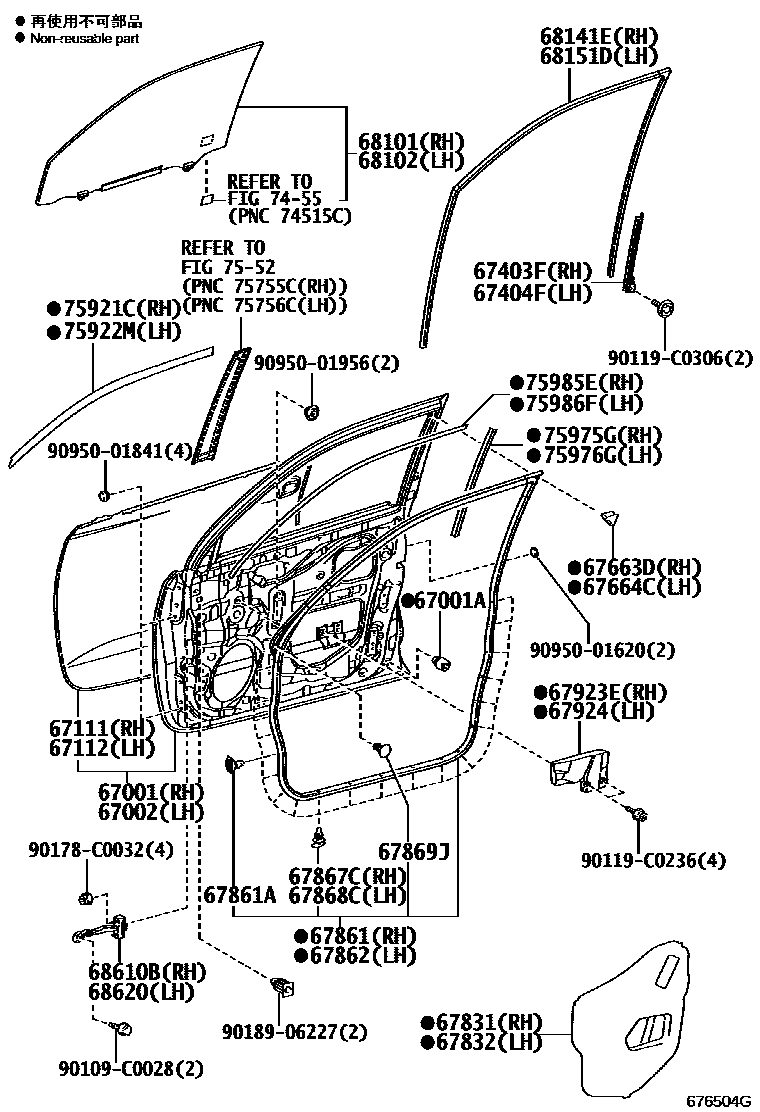

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-60710iGRJ150201005-201412

sub67001-60711

main67001-60711iGRJ150,TRJ150201501-202006

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iGRJ150201005-202006

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-60710iGRJ150201005-201412

sub67002-60711

main67002-60711iGRJ150,TRJ150201501-202006

67111PANEL, FRONT DOOR, OUTER RH

main67111-60370iGRJ150201005-202006

67112PANEL, FRONT DOOR, OUTER LH

main67112-60370iGRJ150201005-202006

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0G010iGRJ150201005-202006

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0G010iGRJ150201005-202006

67663DGARNISH, DOOR FRAME, RH

main67663-48010iGRJ150201005-202006

67664CGARNISH, DOOR FRAME, LH

main67664-48010iGRJ150201005-202006

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0G010iGRJ150201005-202006

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0G010iGRJ150201005-202006

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0G020iGRJ150201005-202006

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-60010iGRJ150201005-202006

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0G020iGRJ150201005-202006

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iGRJ150201005-202006

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iGRJ150201005-202006

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-24010iGRJ150201005-202006

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0G010iGRJ150201005-202006

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0G010iGRJ150201005-202006

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0G030iGRJ150201005-201711

*UVCT,T=5.0,GREEN

sub68101-0G031

main68101-0G030iGRJ152201711-201911

sub68101-0G031

main68101-0G031iGRJ152201912-202006

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0G030iGRJ150201005-201711

*UVCT,T=5.0,GREEN

sub68102-0G031

main68102-0G030iGRJ152201711-201911

sub68102-0G031

main68102-0G031iGRJ152201912-202006

68141ERUN, FRONT DOOR GLASS, RH

main68141-0G020iGRJ150201005-202006

68151DRUN, FRONT DOOR GLASS, LH

main68151-0G020iGRJ150201005-202006

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0G010iGRJ150201005-201312

sub68610-0G011

main68610-0G011iGRJ150,TRJ150201401-201606

sub68610-0G020

sub68620-0G010

main68610-0G020iGRJ152,TRJ152201606-202006

68620CHECK ASSY, FRONT DOOR, LH

main68610-0G010iGRJ150201005-201312

sub68610-0G011

main68610-0G011iGRJ150,TRJ150201401-201606

sub68610-0G020

sub68620-0G010

main68620-0G010iGRJ152,TRJ152201606-202006

7455

7552

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0G030iGRJ150201005-202006

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0G030iGRJ150201005-202006

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-0G020iGRJ150201005-202006

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-0G020iGRJ150201005-202006

75985ESTRIPE, FRONT DOOR OUTSIDE, RH

main75985-0G040iGRJ150201005-202006

75986FSTRIPE, FRONT DOOR OUTSIDE, LH

main75986-0G040iGRJ150201005-202006

90109C0028

main90109-C0028

90119C0236

main90119-C0236

90119C0306

main90119-C0306

90178C0032

main90178-C0032

9018906227

main90189-06227

9095001620

main90950-01620

9095001841

main90950-01841

9095001956

main90950-01956

41 parts on this diagram · 3 diagrams in section
