SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5752
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61235BBRACKET, ASSIST GRIP
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401FREINFORCEMENT SUB-ASSY, ROCKER PANEL, RH
61619AREINFORCEMENT, QUARTER PANEL
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
sub61631-60921
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61707LPANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH
61719CBRACKET, ROOF SIDE RAIL, RH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61757BRETAINER, DECK SIDE TRIM, LOWER
REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61824CPAD, NOISE SHUTTER, NO.1
61825CPAD, NOISE SHUTTER, NO.2
65565PATCH, SIDE PANEL REAR END, RH
90119C0072
main90119-C0072
90119C0116
main90119-C0116
91621J0612
main91621-J0612

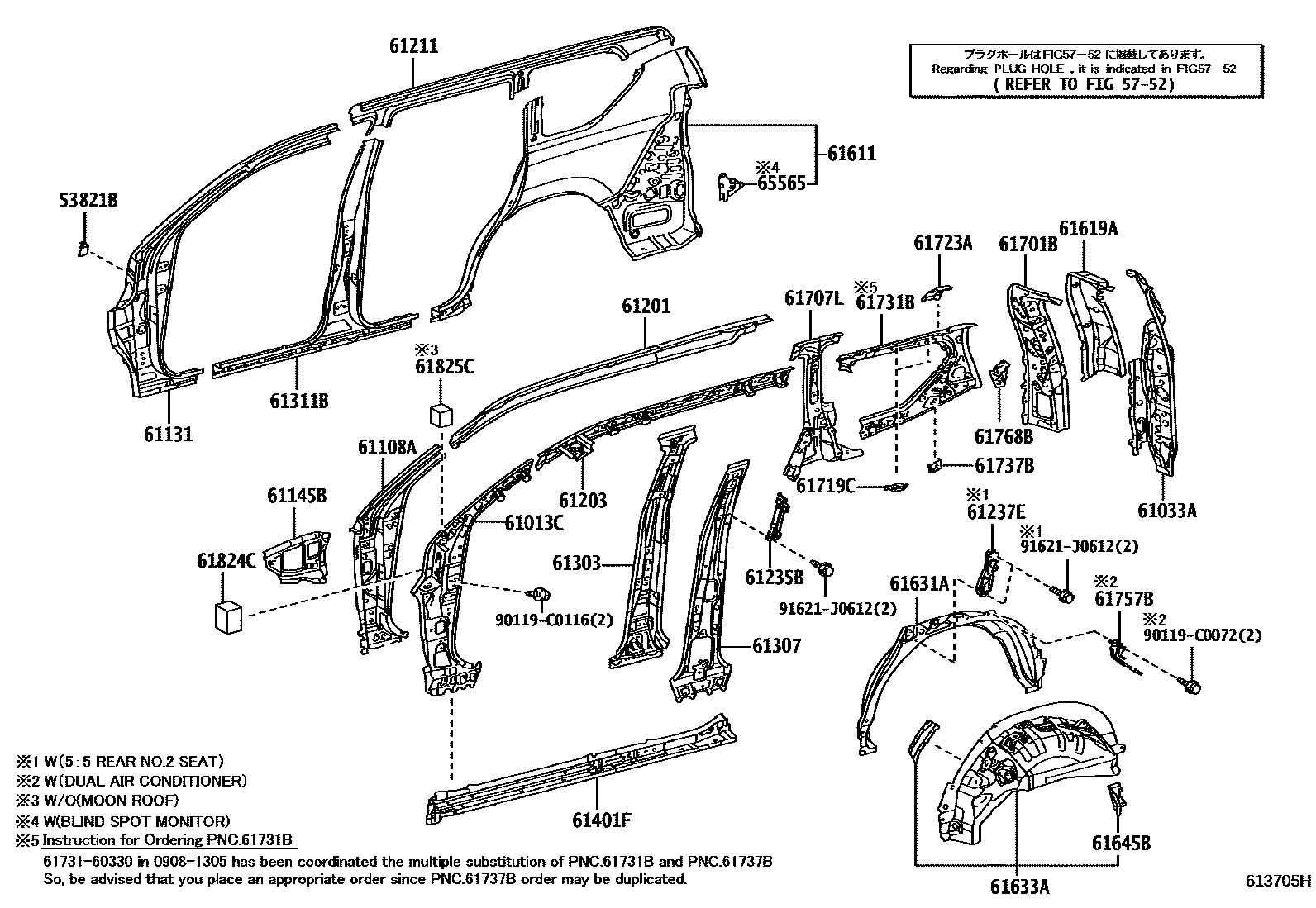

35 parts on this diagram · 2 diagrams in section
