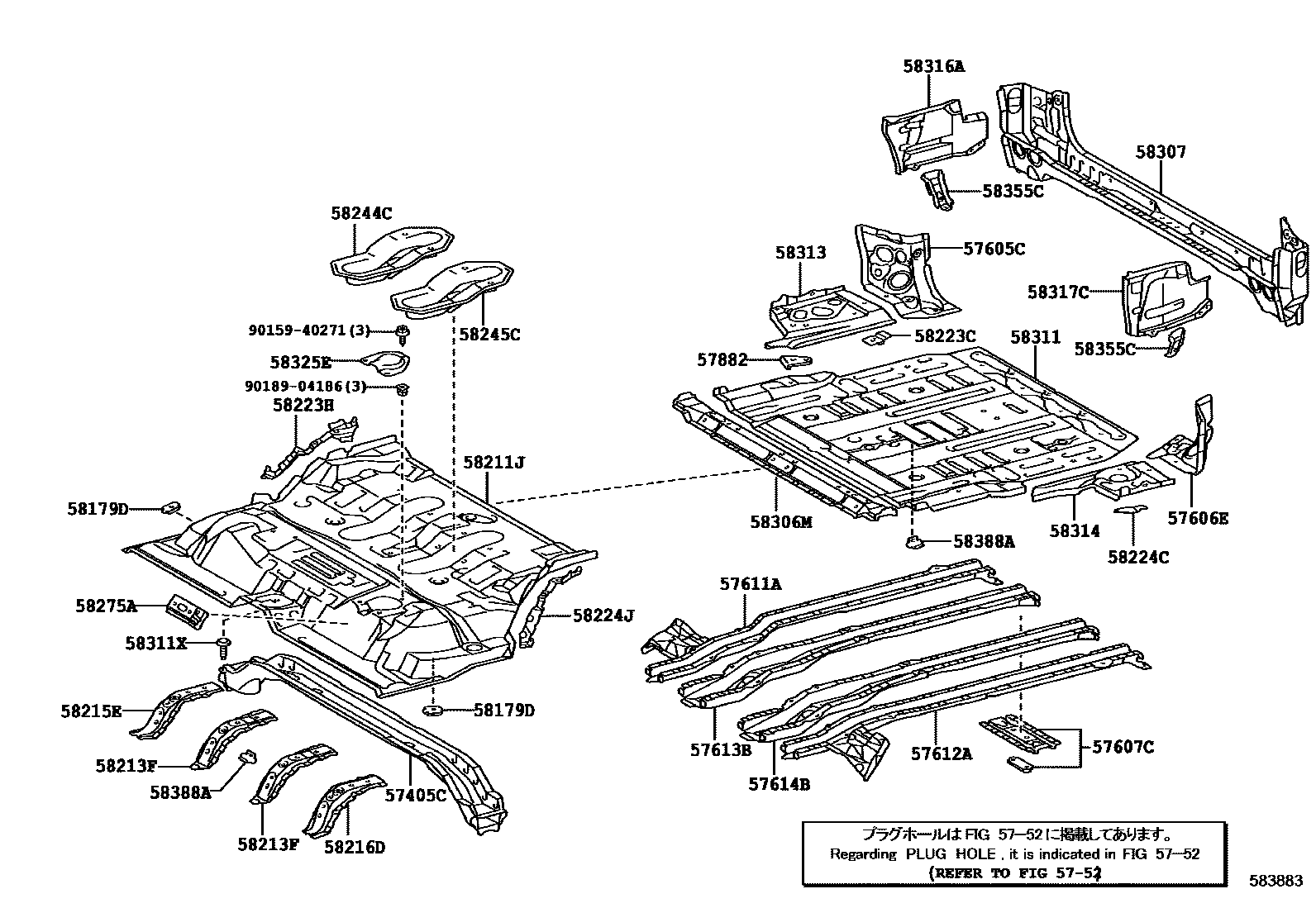

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57405CMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-60010iGRJ152201005-202006

5752

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-60250iGRJ152..VX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main57605-60250iGRJ152201005-202006

main57605-60260iGRJ152,TRJ152..TX201311-201711

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-60250iGRJ150201005-202006

main57606-60250iGRJ150..VX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main57606-60260iGRJ152,TRJ152..TX201311-201711

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0G010iGRJ152201311-202006

main57607-60040iGRJ150201005-201311

57611AMEMBER, REAR FLOOR SIDE, RH

main57601-0G010iGRJ152,TRJ152201311-202006

main57601-60200iGRJ150201005-201311

sub57601-60201

57612AMEMBER, REAR FLOOR SIDE, LH

main57602-0G010iGRJ152,TRJ152201311-202006

main57602-60160iGRJ150201005-201311

sub57602-60161

57613BMEMBER, REAR FLOOR SIDE CENTER, RH

main57603-0G010iGRJ152..TX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main57603-0G010iGRJ152201711-202006

main57603-0G020iGRJ152,TRJ152..TX201311-201711

main57603-60260iGRJ150201005-201311

sub57603-60261

57614BMEMBER, REAR FLOOR SIDE, CENTER LH

main57603-0G010iGRJ150..VX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main57603-0G010iGRJ152201711-202006

main57603-60260iGRJ150201005-201311

sub57603-60261

main57604-0G010iGRJ150,TRJ150..TX201311-201711

57882REINFORCEMENT, BELT ANCHOR, NO.4

main57882-0G010iGRJ152201711-202006

main57882-0G010iGRJ150..VX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main57882-60040iGRJ150201005-201311

58179DBRACKET, CLAMP FLOOR

main58179-0G010iGRJ150..VX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58179-0G010iGRJ152201711-202006

main58179-60030iGRJ150201005-201311

58211JPAN, CENTER FLOOR

main58211-0G010iGRJ150201005-202006

main58211-0G010iGRJ150..VX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58211-0G020iGRJ152,TRJ152..TX201311-201711

58213FREINFORCEMENT, CENTER FLOOR PANEL

main58213-0G010iGRJ150,TRJ150201311-202006

main58213-60050iGRJ150201005-201311

58215EBRACKET, REAR SEAT MOUNTING, RH

main58215-0G010iGRJ152,TRJ152201311-202006

main58215-60040iGRJ150201005-201311

sub58215-60041

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-0G010iGRJ152201311-202006

main58216-60030iGRJ150201005-201311

sub58216-60031

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-0G010iGRJ152..TX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58223-0G010iGRJ152201711-202006

main58223-60020iGRJ150201005-201311

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58221-60020iGRJ150,TRJ150201005-202006

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-0G010iGRJ152..TX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58224-0G010iGRJ152201711-202006

main58224-60010iGRJ150201005-201311

58224JREINFORCEMENT, FLOOR PANEL SIDE, LH

main58222-60020iGRJ150201005-202006

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58245-0G010iGRJ152..TX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58245-0G010iGRJ152201711-202006

main58245-0G020iGRJ150,TRJ150..TX201311-201711

main58245-60020iGRJ150201005-201311

58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH

main58245-0G010iGRJ150..TX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58245-0G010iGRJ152201711-202006

main58245-0G030iGRJ152,TRJ152..TX201311-201711

main58245-60020iGRJ150201005-201311

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-60020iGRJ150201005-202006

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-0G010iGRJ152201311-202006

main58306-60090iGRJ150201005-201311

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-60280iGRJ150201005-201811

sub58307-60281

main58307-60281iGRJ152201812-202006

58311PAN, REAR FLOOR

main58311-0G010iGRJ150201005-202006

main58311-0G010iGRJ150..VX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58311-0G020iGRJ152,TRJ152..TX201311-201711

58311XBOLT, REAR FLOOR WELD

main90115-06166iGRJ150201005-201311

main90115-06166iGRJ150..TX201311-201412

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main90115-C0014iGRJ152,TRJ152..TX201412-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main90115-C0014iGRJ152201711-202006

58313PANEL, REAR FLOOR SIDE, RH

main58313-0G010iGRJ152201005-202006

main58313-0G010iGRJ150..TX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58313-0G020iGRJ150,TRJ150..TX201311-201711

58314PANEL, REAR FLOOR SIDE, LH

main58314-0G010iGRJ150..TX201311-201711

TX-L PACKAGE&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main58314-0G010iGRJ150201005-202006

main58314-0G020iGRJ152,TRJ152..TX201311-201711

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-35040iGRJ152201005-202006

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-35030iGRJ150201005-202006

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0G010iGRJ150201005-202006

58355CBRACKET, REAR BUMPER ARM

main58355-60020iGRJ150201005-202006

58388ABRACKET,REAR FLOOR PLATE

main89966-60010iGRJ150201005-202006

9015940271

main90159-40271

9018904186

main90189-04186

35 parts on this diagram · 2 diagrams in section
