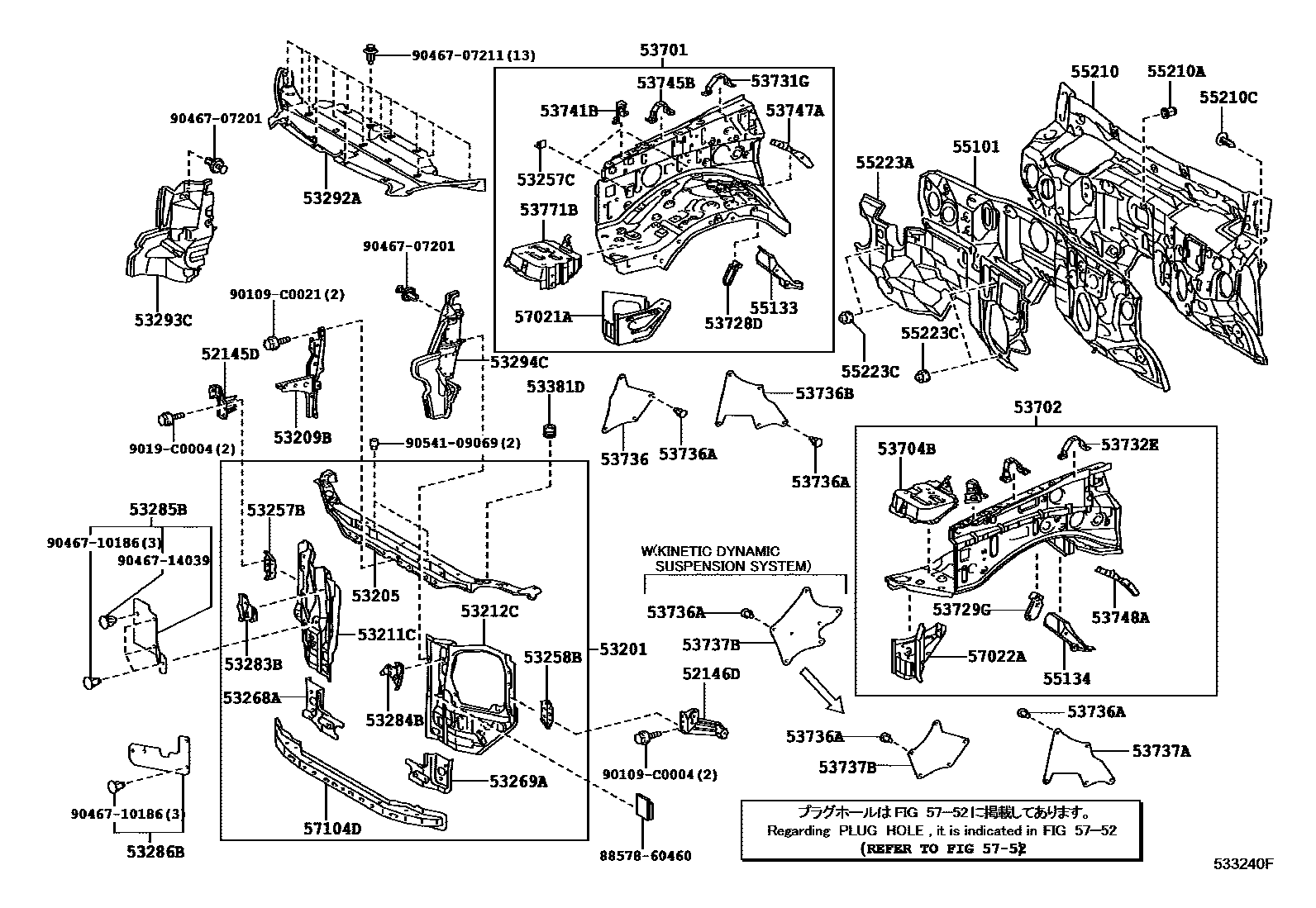

FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257CBRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53292ASEAL, RADIATOR SUPPORT, UPPER
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53381DBUMPER, HOOD TO FRONT SHROUD
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-60E30
sub53701-60E50
sub53701-60F41
sub53701-60F21
sub53701-60F70
53702APRON SUB-ASSY, FRONT FENDER, LH
sub53702-60B20
sub53702-60B50
sub53702-60B60
sub53702-60C00
sub53702-6A301
53728DBRACKET, FENDER APRON, RH
53729GBRACKET, FENDER APRON, LH
53731GREINFORCEMENT, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53736SEAL, FRONT FENDER APRON, RH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
53737BSEAL, FRONT FENDER APRON, LH
53741BPLATE, FENDER APRON REINFORCE, RH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
55101PANEL SUB-ASSY, DASH
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
55210ACLIP
55210CCLIP
55223CCLIP
57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
8857860460PAKING, COOLER AIR DUCT
main88578-60460
90109C0004
main90109-C0004
90109C0021
main90109-C0021
9046707201
main90467-07201
9046707211
main90467-07211
9046710186
main90467-10186
9046714039
main90467-14039
9054109069
main90541-09069
57 parts on this diagram · 3 diagrams in section
