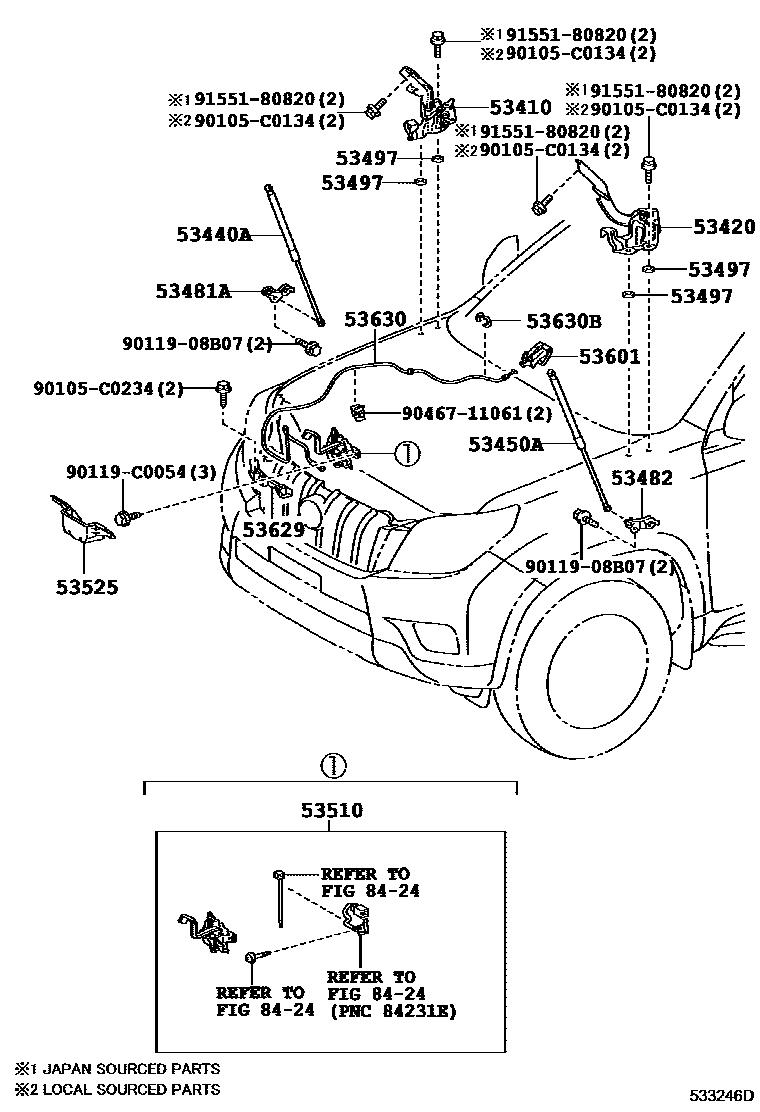

HOOD LOCK & HINGE

0001 1 0002 1 0003 1

53410HINGE ASSY, HOOD, RH

main53410-60080iGRJ150,TRJ150201311-201509

main53410-60130iGRJ152201711-202006

53420HINGE ASSY, HOOD, LH

main53420-60070iGRJ150201005-201311

main53420-60120iGRJ152201711-202006

53440ASUPPORT ASSY, HOOD, RH

main53440-0G010iGRJ150201005-201311

main53440-0G020iGRJ150,TRJ150201311-201509

main53440-0G030iGRJ152201711-202006

53450ASUPPORT ASSY, HOOD, LH

main53450-0G010iGRJ150201005-201311

main53450-0G020iGRJ150,TRJ150201311-201509

main53450-0G030iGRJ152201711-202006

53481ABRACKET, HOOD SUPPORT, RH

main53481-0G010iGRJ150201005-201311

53482BRACKET, HOOD SUPPORT, LH

main53482-0G010iGRJ150201005-201311

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iGRJ152,TRJ152201311-201711

T=1.0

53510LOCK ASSY, HOOD

main53510-0G010iGRJ150201005-201311

main53510-0G020iGRJ150,TRJ150201311-201509

main53510-0G030iGRJ152201711-202006

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-0G020iGRJ150,TRJ150201311-201509

main53525-60050iGRJ150201005-201212

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D010-C0iGRJ152201711-202006

BLACK

sub53601-52010

53629COVER, HOOD LOCK CONTROL CABLE

main53629-0G010iGRJ152,TRJ152201311-201711

main53629-60090iGRJ150201005-201212

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0G020iGRJ150201005-201311

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-12120iGRJ150201005-201311

8424

90105C0134

main90105-C0134

90105C0234

main90105-C0234

9011908B07

main90119-08B07

90119C0054

main90119-C0054

9046711061

main90467-11061

9155180820

main91551-80820

20 parts on this diagram · 3 diagrams in section
