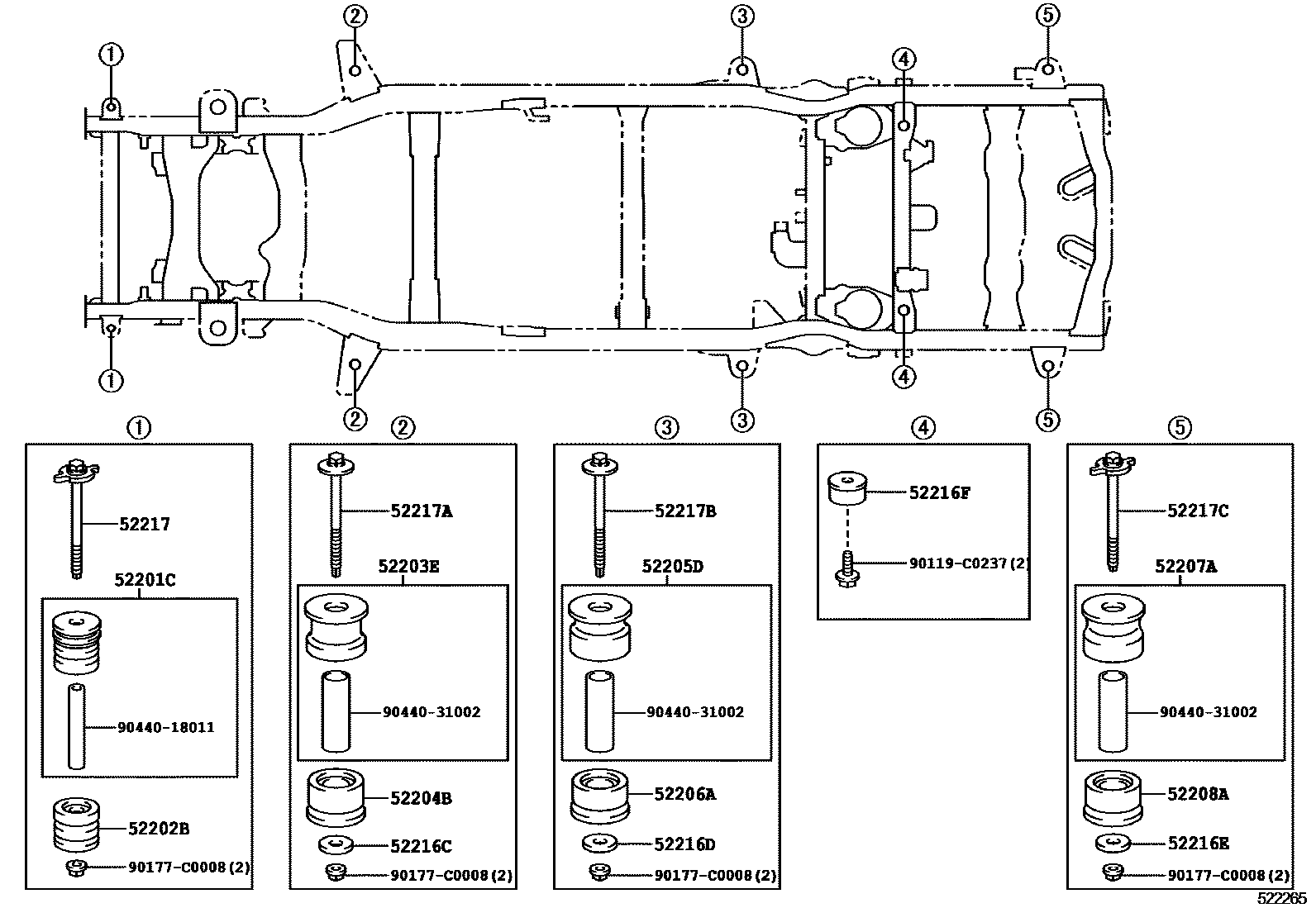

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0G010iGRJ150201005-202006

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0G010iGRJ150201005-202006

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0G010iGRJ150201005-202006

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0G010iGRJ150201005-202006

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0G010iGRJ150201005-202006

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0G010iGRJ150201005-202006

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-0G010iGRJ150201005-202006

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-0G010iGRJ150201005-202006

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-0G020iGRJ152,TRJ152201311-202006

main52216-60040iGRJ150201005-201311

52216DSTOPPER, CAB MOUNTING CUSHION

main52216-0G020iGRJ150,TRJ150201311-202006

main52216-60040iGRJ150201005-201311

52216ESTOPPER, CAB MOUNTING CUSHION

main52216-0G020iGRJ152,TRJ152201311-202006

main52216-60040iGRJ150201005-201311

52216FSTOPPER, CAB MOUNTING CUSHION

main52216-0G010iGRJ150201005-202006

52217BOLT, BODY MOUNTING

main52217-35180iGRJ150201005-201212

main90119-C0335iGRJ152,TRJ152201212-202006

52217ABOLT, BODY MOUNTING

main52217-35191iGRJ150201005-201212

main90105-C0250iGRJ150201212-202006

52217BBOLT, BODY MOUNTING

main52217-35191iGRJ150201005-201212

main90105-C0250iGRJ150201212-202006

52217CBOLT, BODY MOUNTING

main52217-35180iGRJ150201005-201212

main90119-C0335iGRJ150201212-202006

90119C0237

main90119-C0237

90177C0008

main90177-C0008

9044018011

main90440-18011

9044031002

main90440-31002

20 parts on this diagram · 1 diagram in section
