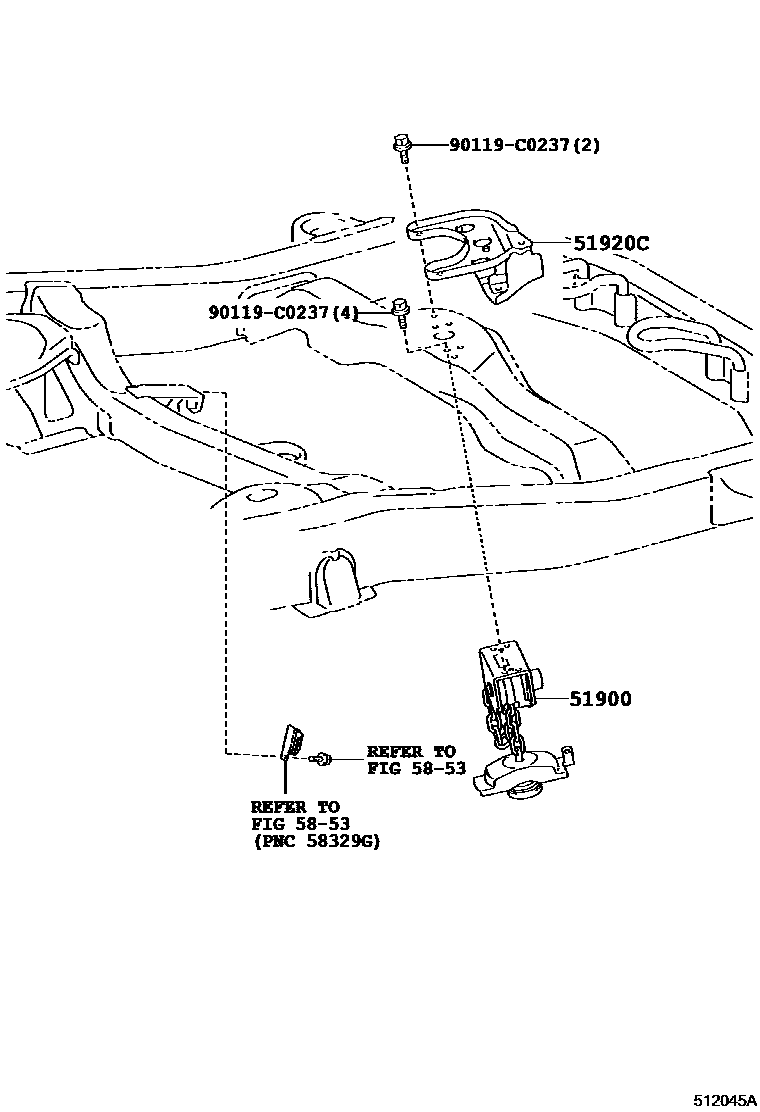

SPARE WHEEL CARRIER

0001 1SPARE TIRE = UNDER FRAME 0003 1SPARE TIRE = BACK DOOR

51900CARRIER ASSY, SPARE WHEEL

main51900-60331iGRJ150201005-201211

sub51900-60332

main51900-60332iGRJ150201212-201711

sub51900-60333

main51900-60332iGRJ152201711-201801

SPARE TIRE-WITH(BACK DOOR)

sub51900-60333

main51900-60333iGRJ152201802-202006

SPARE TIRE-WITH(BACK DOOR)

51920CBRACKET ASSY, SPARE WHEEL CARRIER

main51920-0G010iGRJ150201212-201711

main51920-0G010iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

main51920-60040iGRJ150201005-201212

5853

90119C0237

main90119-C0237

4 parts on this diagram · 2 diagrams in section
