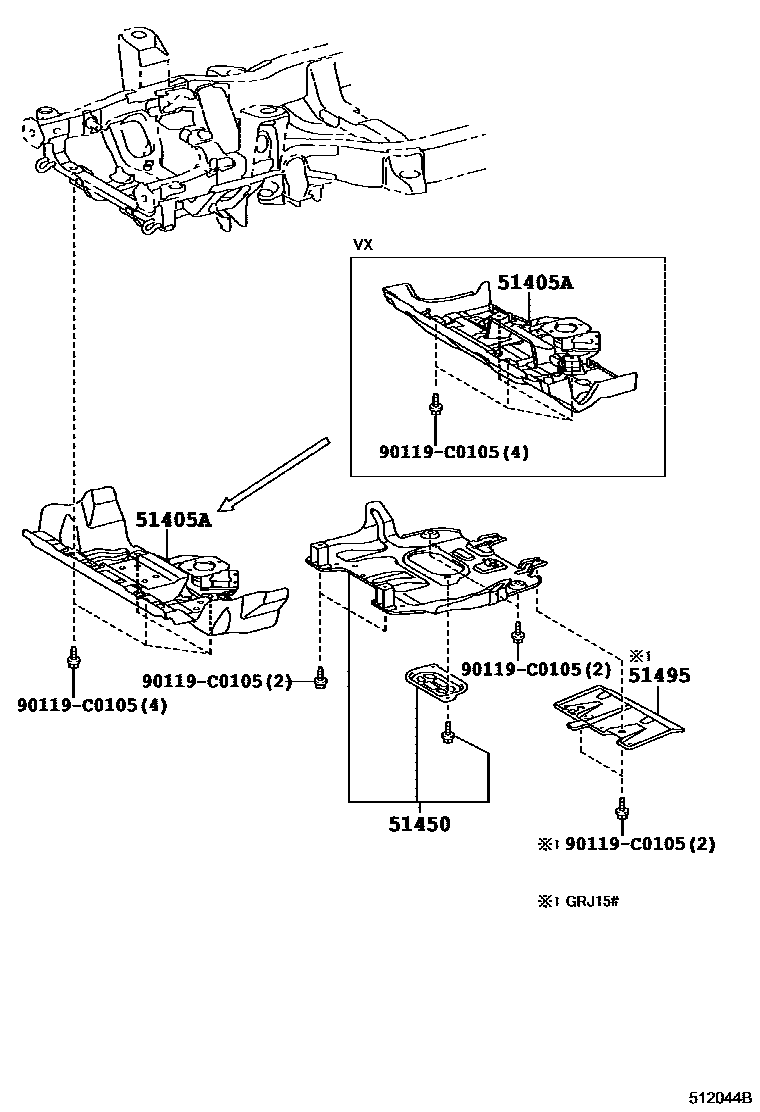

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-0G030iGRJ150..TX201005-202006

main51405-0G040iGRJ152..VX201005-202006

51450COVER ASSY, ENGINE UNDER, REAR

main51450-0G010iGRJ150201005-202006

51495COVER, TRANSMISSION UNDER

main51495-0G010iGRJ150201005-202006

90119C0105

main90119-C0105

4 parts on this diagram · 1 diagram in section
