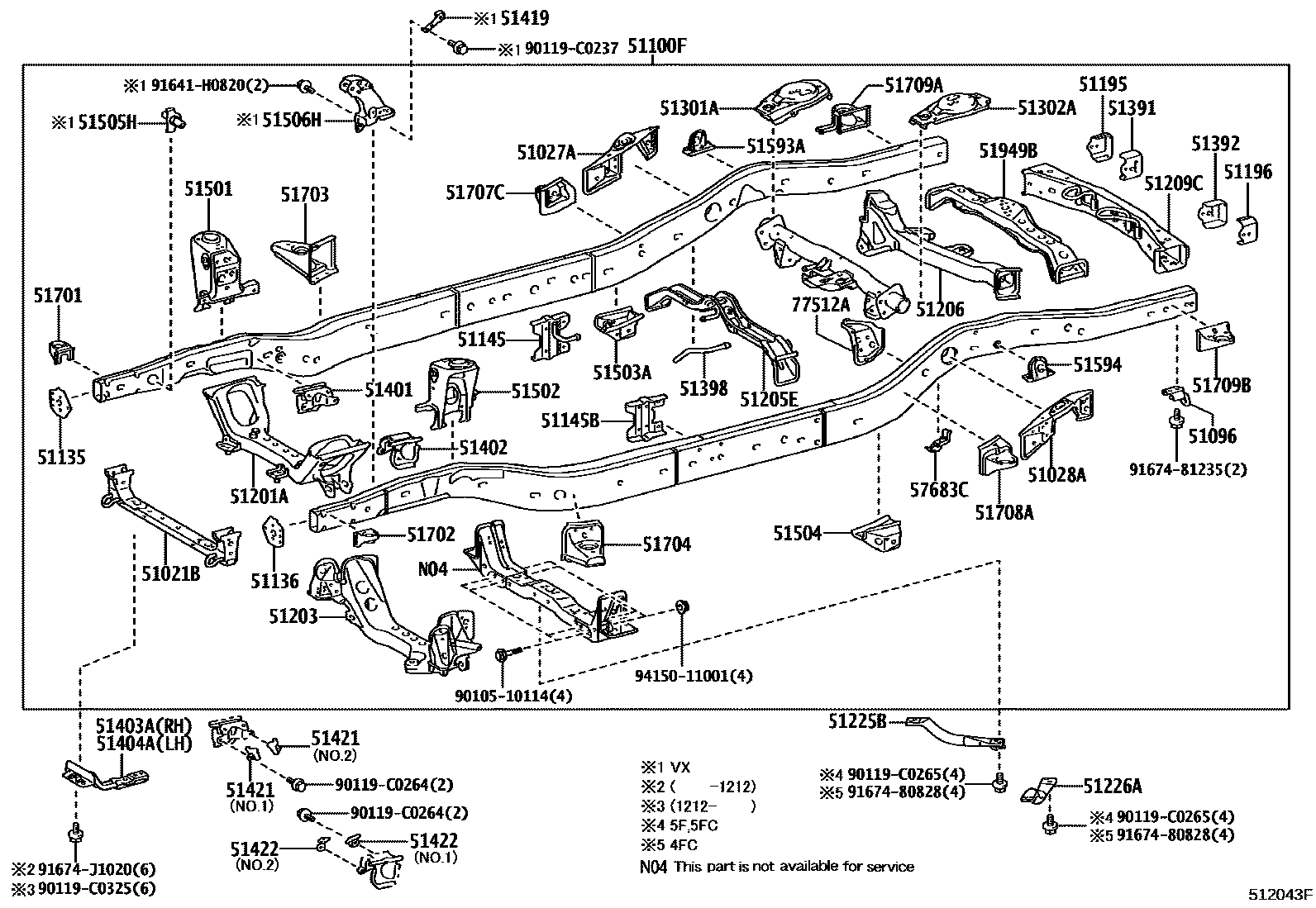

FRAME

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-60041iGRJ150201005-202006

51027ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, RH

main51027-60010iGRJ150,TRJ150..TX201005-202006

main51027-60030iGRJ152..VX201005-202006

51028ABRACKET SUB-ASSY, FRAME NO.4 CROSSMEMBER, LH

main51028-60020iGRJ150..TX201005-202006

main51028-60040iGRJ152..VX201005-202006

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51095-60030iGRJ150201005-202006

51100FFRAME SUB-ASSY

main51001-60L60iGRJ152..TX201005-202006

main51001-60L80iGRJ150..VX201005-201307

sub51001-60L81

main51001-60L81iGRJ152..VX201308-202006

main51001-60M40iTRJ152..6FC201503-201711

main51001-60M60iTRJ152..5F201503-201711

51135PLATE, FRAME SIDE RAIL, RH

main51135-60040iGRJ150201005-202006

51136PLATE, FRAME SIDE RAIL, LH

main51136-60060iGRJ150,TRJ150201005-202006

51145STIFFENER, FRAME SIDE RAIL

main510C1-60010iGRJ150201005-202006

51145BSTIFFENER, FRAME SIDE RAIL

main51146-60140iGRJ150201005-202006

51195PATCH, REAR FRAME RAIL, RH

main51191-60010iGRJ150201005-202006

51196PATCH, REAR FRAME RAIL, LH

main51192-60010iGRJ152,TRJ152201005-202006

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-60190iGRJ150201005-202006

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60300iGRJ150201005-202006

51205ECROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-60210iGRJ150201005-202006

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51206-60070iGRJ150,TRJ150..TX201005-202006

main51206-60080iGRJ150..VX201005-201211

sub51206-60081

main51206-60081iGRJ150..VX201212-202006

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-60220iGRJ150201005-202006

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-0G010iGRJ152;TRJ152..5F201212-202006

main51225-35040iGRJ150201005-201212

main51225-35050iTRJ152..6FC201503-201711

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-0G010iGRJ150201212-202006

main51226-35060iGRJ150201005-201212

main51226-35070iTRJ152..6FC201503-201711

51301ABRACKET SUB-ASSY, REAR SPRING, REAR RH

main51301-60050iGRJ150201005-202006

51302ABRACKET SUB-ASSY, REAR SPRING, REAR LH

main51302-60060iGRJ152,TRJ152201005-202006

51391GUSSET, FRAME REAR CROSSMEMBER, RH

main51391-60050iGRJ150201005-202006

51392GUSSET, FRAME REAR CROSSMEMBER, LH

main51392-60030iGRJ150201005-202006

51398BRACKET, EXHAUST PIPE SUPPORT

main17576-67050iGRJ150201005-202006

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-60110iGRJ152201005-202006

main51401-60120iTRJ150201503-201711

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-60110iGRJ150201005-202006

main51402-60120iTRJ152201503-201711

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-60020iGRJ150..TX201005-202006

main51403-60030iGRJ152..VX201005-202006

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51403-60020iGRJ150..TX201005-202006

main51403-60030iGRJ150..VX201005-202006

51419BRACKET, FRAME APRON SEAL

main51419-0G010iGRJ150..VX201212-202006

main51419-60010iGRJ150..VX201005-201212

51421BRACKET, ENGINE FRONT MOUNTING, RH

main12311-0P060iGRJ152201005-202006

NO.1:REFER ILLUST.

main12312-0P010iGRJ150201005-202006

NO.2:REFER ILLUST.

51422BRACKET, ENGINE FRONT MOUNTING, LH

main12311-0P060iGRJ150201005-202006

NO.1:REFER ILLUST.

main12315-0P070iGRJ152,TRJ152201005-202006

NO.2:REFER ILLUST.

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-60050iGRJ150201005-202006

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-60050iGRJ150201005-202006

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main5150C-60030iGRJ150201005-202006

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main5150D-60020iGRJ150201005-202006

51505HBRACKET SUB-ASSY, FRONT STABILIZER, RH

main51505-60050iGRJ150..VX201005-202006

51506HBRACKET SUB-ASSY, FRONT STABILIZER, LH

main51506-60080iGRJ150..VX201005-201207

sub51506-60081

main51506-60081iGRJ150..VX201208-201307

sub51506-60090

main51506-60090iGRJ150..VX201308-202006

51593ABRACKET, REAR SPRING BUMPER, RH

main51593-35030iGRJ150201005-202006

51594BRACKET, REAR SPRING BUMPER, LH

main51594-35030iGRJ150201005-202006

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60130iGRJ150201005-202006

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-60130iGRJ150201005-202006

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60110iGRJ150201005-202006

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60100iGRJ150201005-202006

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-60110iGRJ150201005-202006

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-60090iGRJ150201005-202006

51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-35040iGRJ150201005-202006

51709BBRACKET SUB-ASSY, BODY REAR END MOUNTING, LH

main51706-35060iGRJ150201005-202006

51949BCROSSMEMBER, SPARE WHEEL CARRIER

main51099-60040iGRJ150201005-202006

57683CBRACKET, FUEL TANK MOUNTING

main57683-35030iGRJ150201005-201207

sub57683-35031

main57683-35031iGRJ150201208-202006

77512ABRACKET, FUEL TANK, REAR

main77512-35120iGRJ150201005-201207

sub77512-35121

main77512-35121iGRJ150201208-202006

9010510114

main90105-10114

90119C0237

main90119-C0237

90119C0264

main90119-C0264

90119C0265

main90119-C0265

90119C0325

main90119-C0325

91641H0820

main91641-H0820

9167480828

main91674-80828

9167481235

main91674-81235

91674J1020

main91674-J1020

9415011001

main94150-11001

59 parts on this diagram · 1 diagram in section
