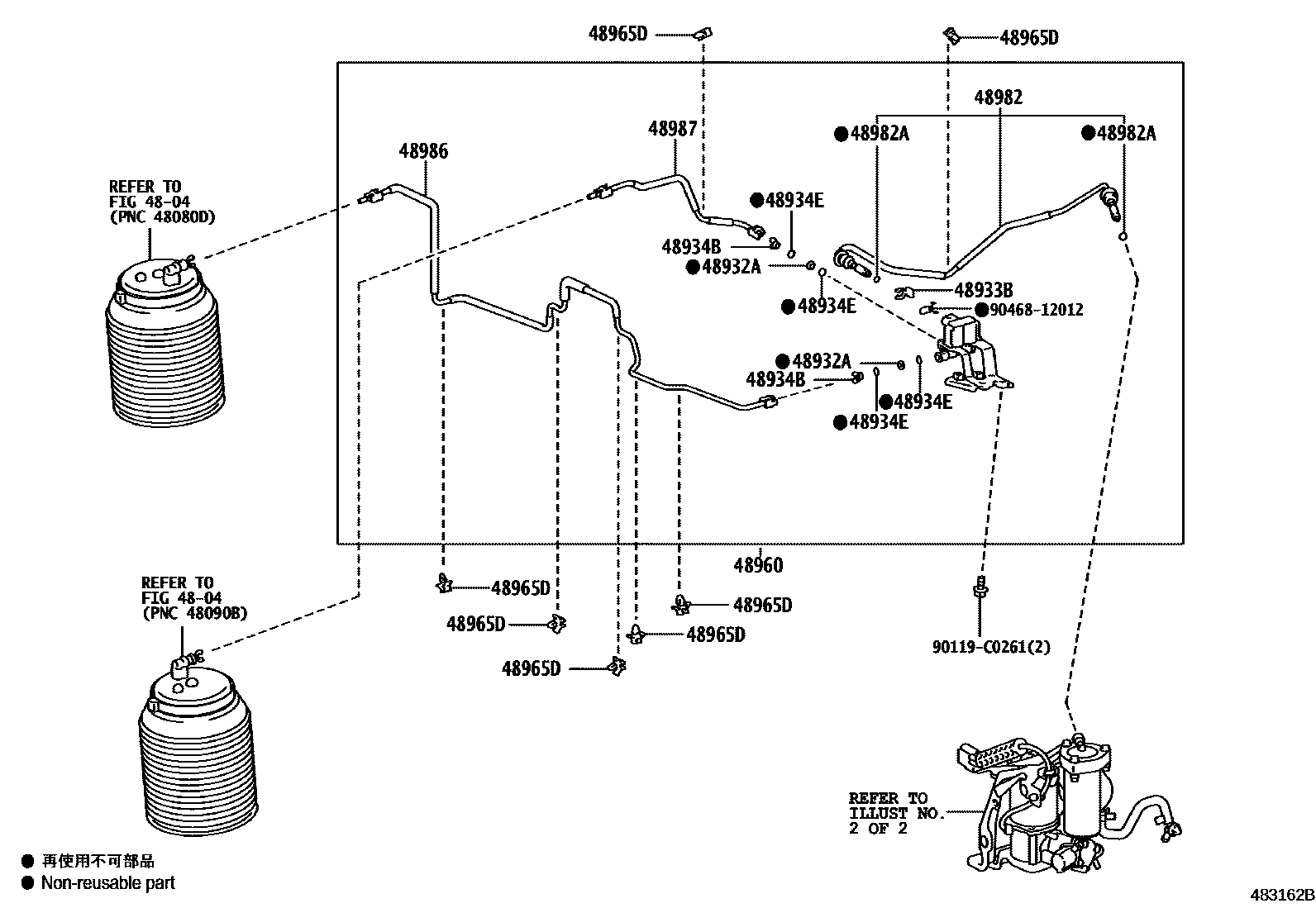

HEIGHT CONTROL (AUTO-LEVELER)

0001 1 0002 1

4804

48932APLATE, HEIGHT CONTROL TUBE

48933HOLDER, AIR CONNECTOR CLIP

main48933-30010

48933BHOLDER, REAR HEIGHT CONTROL AIR CONNECTOR CLIP

48934BCONNECTOR, HEIGHT CONTROL TUBE

48934ERING, O(FOR HEIGHT CONTROL TUBE CONNECTOR)

48960VALVE ASSY, HEIGHT CONTROL, NO.2

main48960-60010

48965DCLAMP, HEIGHT CONTROL TUBE, NO.2

48982TUBE, HEIGHT CONTROL, NO.2

main90301-04004

main48982-60080

48982ARING, O(FOR HEIGHT CONTROL TUBE NO.2)

48986TUBE, HEIGHT CONTROL, NO.6

main48986-60050

48987TUBE, HEIGHT CONTROL, NO.7

main48987-60040

90119C0261

main90119-C0261

9046812012

main90468-12012

14 parts on this diagram · 2 diagrams in section
