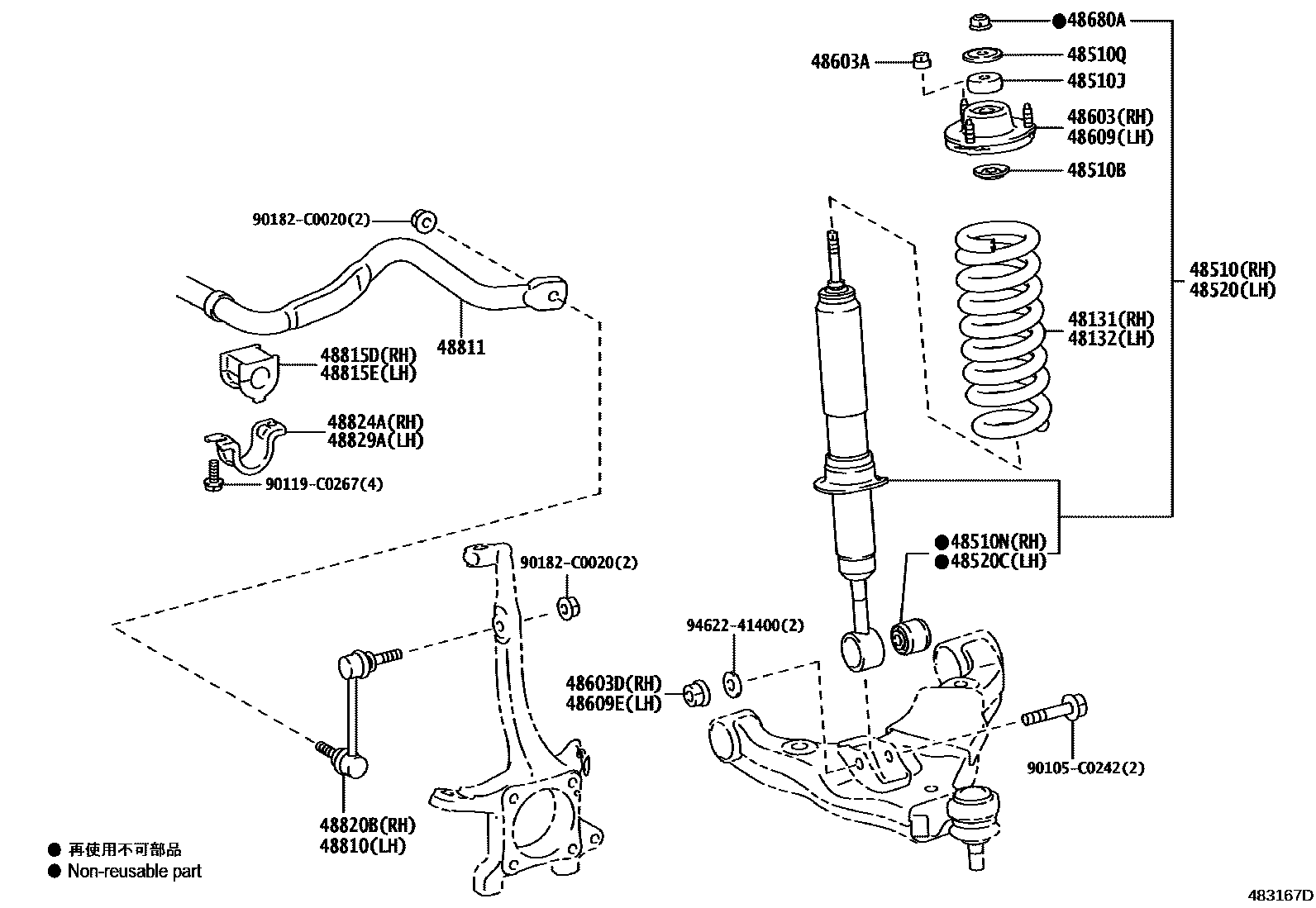

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0G020
MARK 48510-0G030
MARK 48510-0G040
MARK 48510-0G022
MARK 48510-0G041
MARK 48510-0G023
MARK 48510-0G042
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-0G020
MARK 48510-0G030
MARK 48510-0G040
MARK 48510-0G022
MARK 48510-0G041
MARK 48510-0G023
MARK 48510-0G042
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820LINK ASSY, FRONT STABILIZER
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
90105C0242
main90105-C0242
90119C0267
main90119-C0267
90182C0020
main90182-C0020
9462241400
main94622-41400
27 parts on this diagram · 3 diagrams in section
