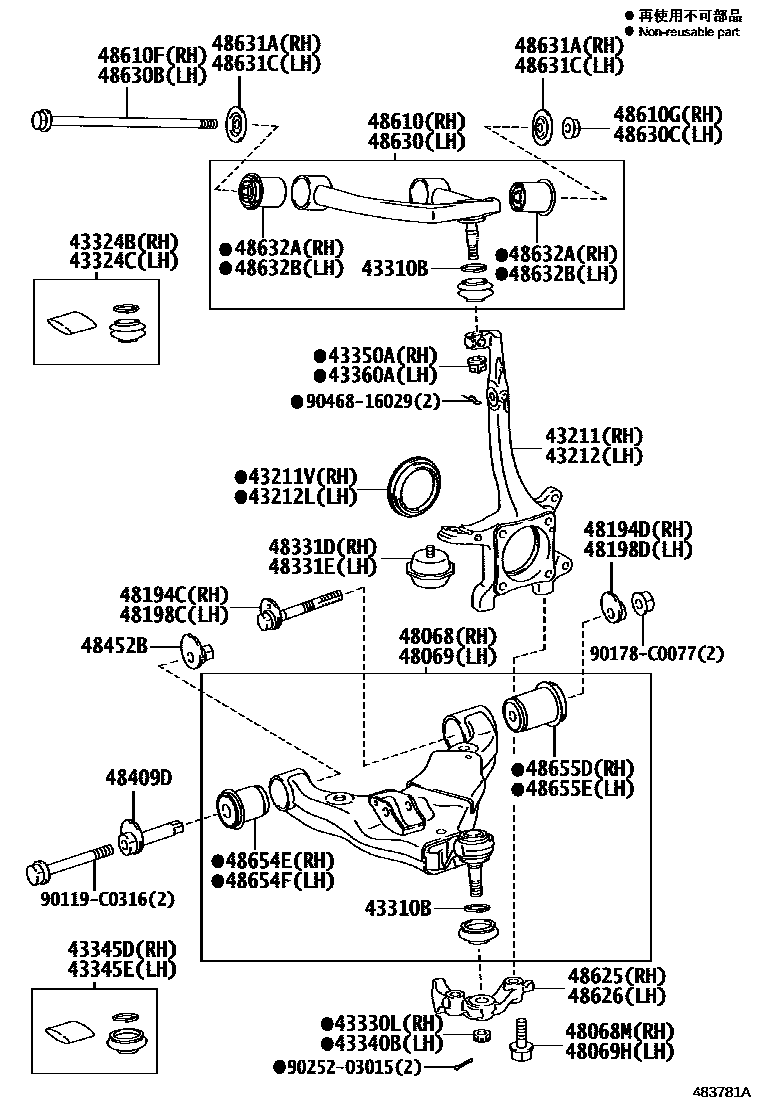

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
*483
*484
43211VSEAL, OIL (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
*483
*484
43212LSEAL, OIL (FOR STEERING KNUCKLE LH)
43310BRING, SET (FOR DUST COVER)
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43345DCOVER, LOWER BALL JOINT DUST, RH
43345ECOVER, LOWER BALL JOINT DUST, LH
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48331DBUMPER, FRONT SPRING, NO.1 RH
48331EBUMPER, FRONT SPRING, NO.1 LH
48409DCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST
48452BPLATE, FRONT SUSPENSION TOE ADJUST, NO.2
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)
48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)
48625ATTACHMENT, FRONT LOWER BALL JOINT, RH
48626ATTACHMENT, FRONT LOWER BALL JOINT, LH
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)
48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)
48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)
48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
90119C0316
main90119-C0316
90178C0077
main90178-C0077
9025203015
main90252-03015
9046816029
main90468-16029
45 parts on this diagram · 1 diagram in section
