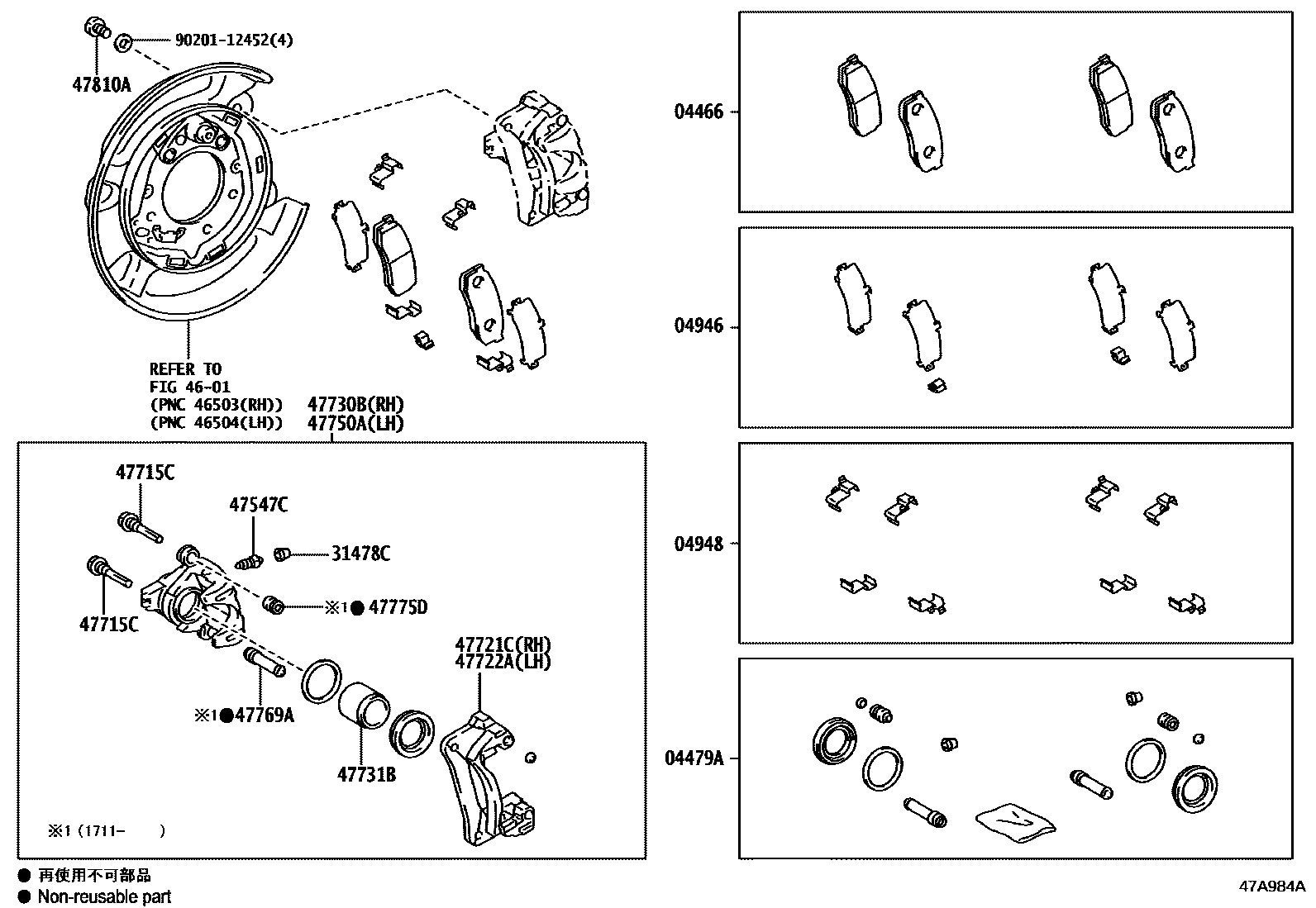

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-60140iGRJ15#,TRJ15#¥7,300201005-202006

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-60030iGRJ150¥1,200201005-202006

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-60140iGRJ150¥1,430201005-201411

sub04946-60141¥890

main04946-60141iGRJ150,TRJ150¥890201411-202006

04948FITTING KIT, DISC BRAKE, REAR

main04947-22050iGRJ150¥1,470201005-202006

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRJ150¥160201005-202006

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12010iGRJ152¥180201711-202006

main47547-12030iGRJ150,TRJ150¥400201005-201701

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-43010iGRJ152,TRJ152¥550201005-202006

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-60020iGRJ150¥4,000201005-202006

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-60020iGRJ150¥4,000201005-202006

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-34030iGRJ150¥21,500201005-202006

47731BPISTON, REAR DISC BRAKE

main47731-60020iGRJ150¥1,200201005-202006

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-34030iGRJ150¥21,500201005-202006

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-22010iGRJ152¥190201711-202006

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22010iGRJ152¥160201711-202006

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90101-12167iGRJ150¥110201005-202006

9020112452

main90201-12452¥170

17 parts on this diagram · 1 diagram in section
