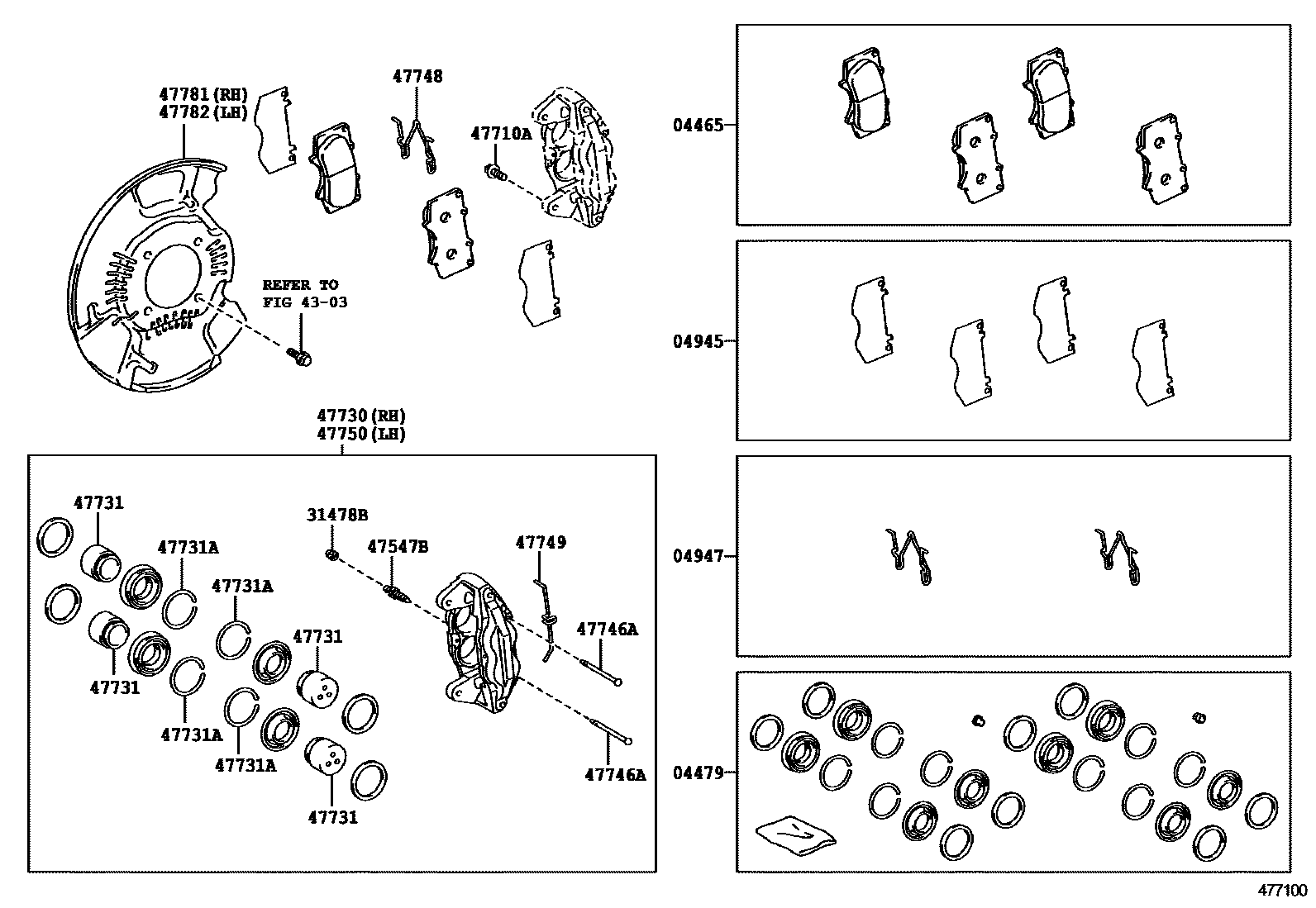

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-60320iGRJ150201005-202006

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60080iGRJ150201005-202006

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-60090iGRJ150201005-202006

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iGRJ150201005-202006

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGRJ150201005-202006

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iGRJ150201005-202006

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iGRJ150201005-201506

*12-1.25PX35-27

main90105-14198iGRJ15#,TRJ15#201506-202006

*14-1.5PX35-30.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-60300iGRJ150201005-201311

main47730-60300iGRJ150,TRJ150201311-201506

*483

main47730-60350iGRJ150,TRJ150201506-202006

*484

47731PISTON, FRONT DISC BRAKE

main47731-60300iGRJ150201005-202006

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-53002iGRJ150201005-202006

47746APIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)

main47735-60300iGRJ150201005-202006

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010iGRJ150201005-202006

47749CLIP, PIN HOLD

main47743-60280iGRJ150201005-202006

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-60300iGRJ150201005-201311

main47750-60300iGRJ150,TRJ150201311-201506

*483

main47750-60350iGRJ150,TRJ150201506-202006

*484

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-60140iGRJ150201005-202006

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-60140iGRJ150201005-202006

17 parts on this diagram · 1 diagram in section
