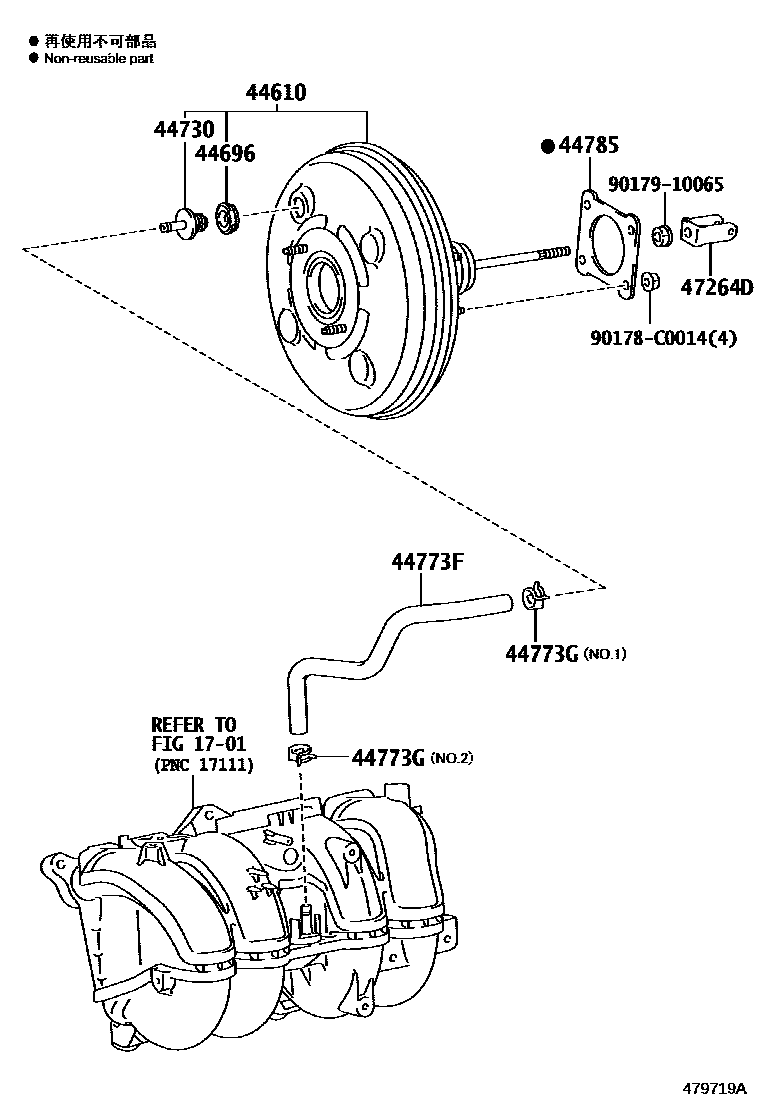

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-0G010iTRJ152201509-201711

main44610-60A10iTRJ150201503-201509

44696GROMMET, CHECK VALVE

main90080-48071iTRJ152201509-201711

main90480-24439iTRJ150201503-201509

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iTRJ150201503-201711

44773FHOSE, UNION TO CHECK VALVE

main44773-60300iTRJ150201503-201711

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iTRJ150201503-201711

NO.2

main96133-41500iTRJ152201503-201711

NO.1

44785GASKET, BRAKE BOOSTER

main44785-60030iTRJ152201503-201711

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0K050iTRJ150201503-201509

main47264-0N010iTRJ152201509-201711

90178C0014

main90178-C0014

9017910065

main90179-10065

10 parts on this diagram · 1 diagram in section
