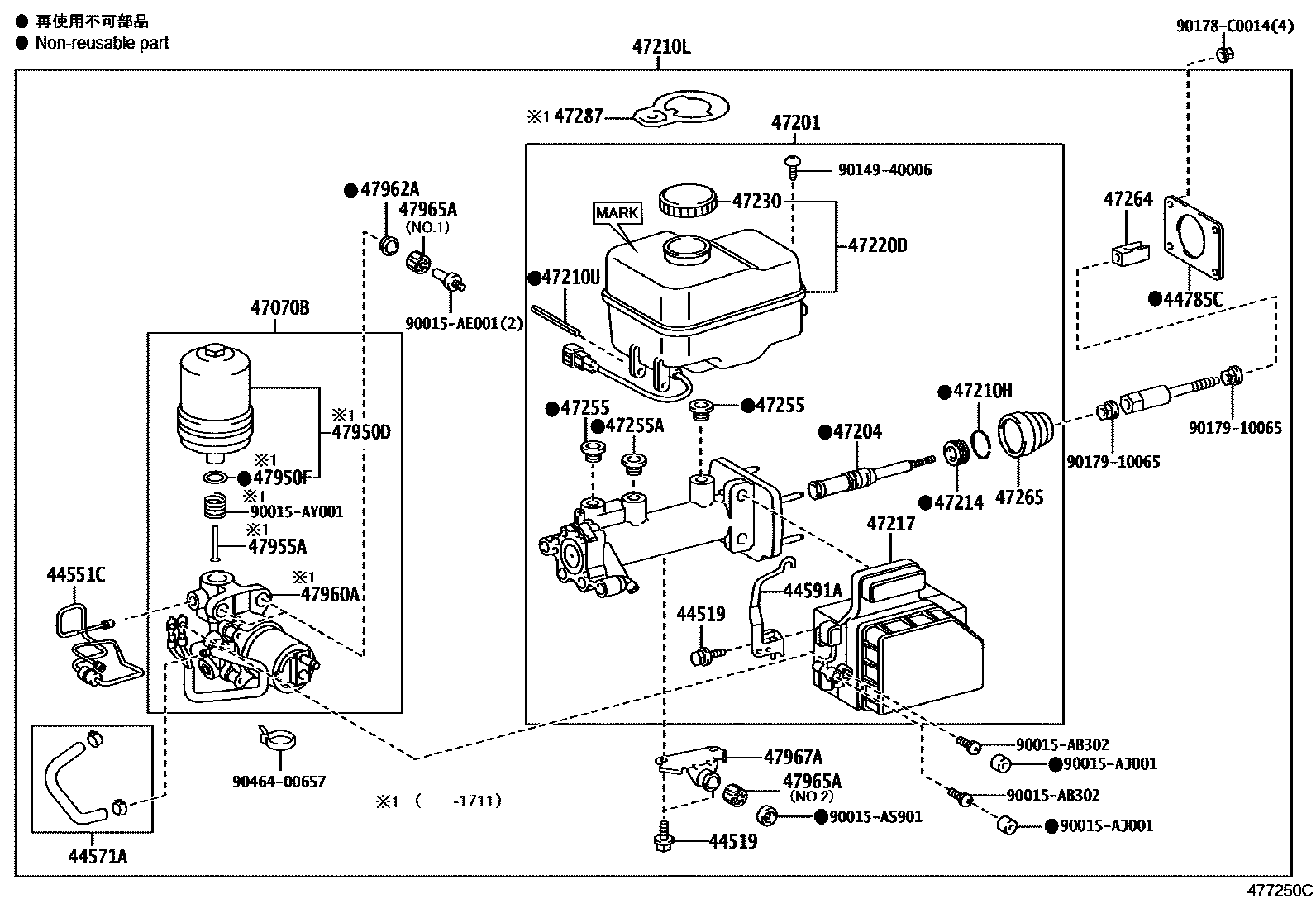

BRAKE MASTER CYLINDER

0001 1 0002 1

44519BOLT, BRAKE ACTUATOR

main44519-24020iGRJ150201005-202006

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-60060iGRJ150201005-202006

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-60020iGRJ150201005-202006

44591ABRACKET, BRAKE ACTUATOR, NO.1

main44591-35070iGRJ150201005-202006

44785CGASKET, BRAKE BOOSTER

main44785-60020iGRJ150201005-202006

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-60050iGRJ150201005-202006

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47025-60230iGRJ150201005-201311

PNC 47210L=MARK K

main47025-60420iGRJ150201311-201509

main47025-60421iGRJ152201509-201711

main47025-60450iGRJ150201109-201306

PNC 47210L=MARK GE

main47025-60660iGRJ152201711-201807

sub47025-60661

main47025-60661iGRJ152201807-202001

sub47025-60662

main47025-60662iGRJ152202001-202006

main47201-0G010iTRJ152..6FC201509-201711

main47201-0G020iTRJ152..5F201509-201711

main47201-60A22iTRJ150..4FC201503-201509

main47201-60A32iTRJ150..5F201503-201509

47204PISTON, MASTER CYLINDER

main47026-60090iGRJ152201005-202006

47210HRING, SNAP(FOR BRAKE MASTER CYLINDER)

main90520-32012iGRJ152201005-202006

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-60200iGRJ150201005-201311

MARK=K

main47050-60410iGRJ150201109-201306

MARK=GE

main47050-60590iGRJ150201311-201509

MARK=PN

main47050-60591iGRJ152201509-201711

MARK=P9

main47050-60850iGRJ152201711-201806

sub47050-60851

main47050-60851iGRJ152201807-201912

sub47050-60852

main47050-60852iGRJ152202001-202006

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGRJ150201005-202006

47214PLUG, MASTER CYLINDER

main47027-60090iGRJ150201005-202006

47217SOLENOID, MASTER CYLINDER

main47217-60130iGRJ150201005-201311

PNC 47210L=MARK K

main47217-60131iGRJ150201109-201306

PNC 47210L=MARK GE

main47217-60440iGRJ150201311-201509

main47217-60441iGRJ152201509-201711

main47217-60750iGRJ152201711-201807

sub47217-60751

main47217-60751iGRJ152201807-202001

sub47217-60752

main47217-60752iGRJ152202001-202006

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0G010iTRJ152..6FC201509-201711

main47220-0G020iTRJ152..5F201509-201711

main47220-60180iGRJ150201005-202006

main47220-60230iTRJ150..4FC201503-201509

main47220-60240iTRJ150..5F201503-201509

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0R030iTRJ152201509-201711

main47230-20140iTRJ150201503-201509

main47230-24010iGRJ150201005-201109

sub47230-47090

main47230-47090iGRJ152201612-202006

main47230-60210iGRJ150201109-201612

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGRJ150201005-202006

main90016-AT002iTRJ152201509-201711

main90029-48001iTRJ150201503-201509

sub90016-AT001

47255AGROMMET, MASTER CYLINDER RESERVOIR, NO.2

main31417-35010iGRJ150201005-202006

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iGRJ150201005-202006

47265BOOT, MASTER CYLINDER

main90029-70001iGRJ152201005-202006

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iTRJ152201509-201711

main47287-20010iTRJ150201503-201509

main47287-60180iGRJ150201005-201201

sub47287-60181

main47287-60181iGRJ15#201202-201612

main47287-60182iGRJ152201612-201711

47950DACCUMULATOR ASSY, BRAKE BOOSTER

main47950-60020iGRJ150201005-201711

47950FRING, O(FOR BRAKE BOOSTER ACCUMULATOR)

main90301-13014iGRJ150201005-201711

47955APIPE, BRAKE BOOSTER ACCUMULATOR

main47955-60010iGRJ150201005-201711

47960APUMP ASSY, BRAKE BOOSTER

main47960-60050iGRJ150201005-201711

47962ACOLLAR, BRAKE BOOSTER PUMP

main47962-60090iGRJ150201005-202006

47965ABUSH, BRAKE BOOSTER PUMP

main47965-30010iGRJ150201005-202006

NO.1

main90015-AL001iGRJ152201005-202006

NO.2

47967ABRACKET, BRAKE BOOSTER PUMP, NO.1

main47967-60090iGRJ150201005-202006

90015AB302

main90015-AB302

90015AE001

main90015-AE001

90015AJ001

main90015-AJ001

90015AS901

main90015-AS901

90015AY001

main90015-AY001

9014940006

main90149-40006

90178C0014

main90178-C0014

9017910065

main90179-10065

9046400657

main90464-00657

36 parts on this diagram · 2 diagrams in section
