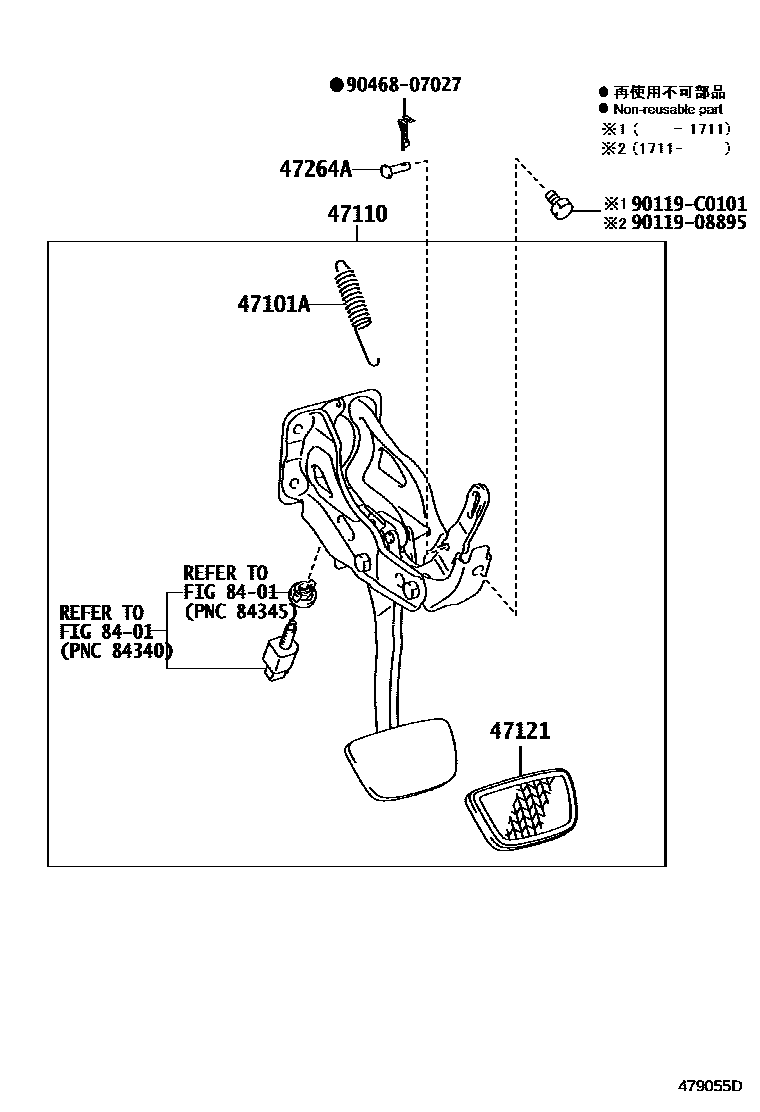

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20034iGRJ152201005-202006

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0G010iGRJ150201212-201311

main47110-0G011iGRJ150201311-201711

main47110-0G020iGRJ152201711-202006

main47110-60312iTRJ150..4FC201503-201511

sub47110-60313

main47110-60313iTRJ152..6FC201512-201711

main47110-60322iTRJ152..5F201503-201511

sub47110-60323

main47110-60323iTRJ152..5F201512-201711

sub47110-60324

main47110-60351iGRJ150201005-201212

47121PAD, BRAKE PEDAL

main31321-52010iTRJ150..5F201503-201512

main31321-52020iTRJ152..5F201512-201711

main47121-50020iGRJ150201005-202006

47264APIN(FOR PUSH ROD)

main90240-06027iGRJ150201005-202006

main90249-06180iTRJ152201503-201711

8401

9011908895

main90119-08895

90119C0101

main90119-C0101

9046807027

main90468-07027

8 parts on this diagram · 3 diagrams in section
