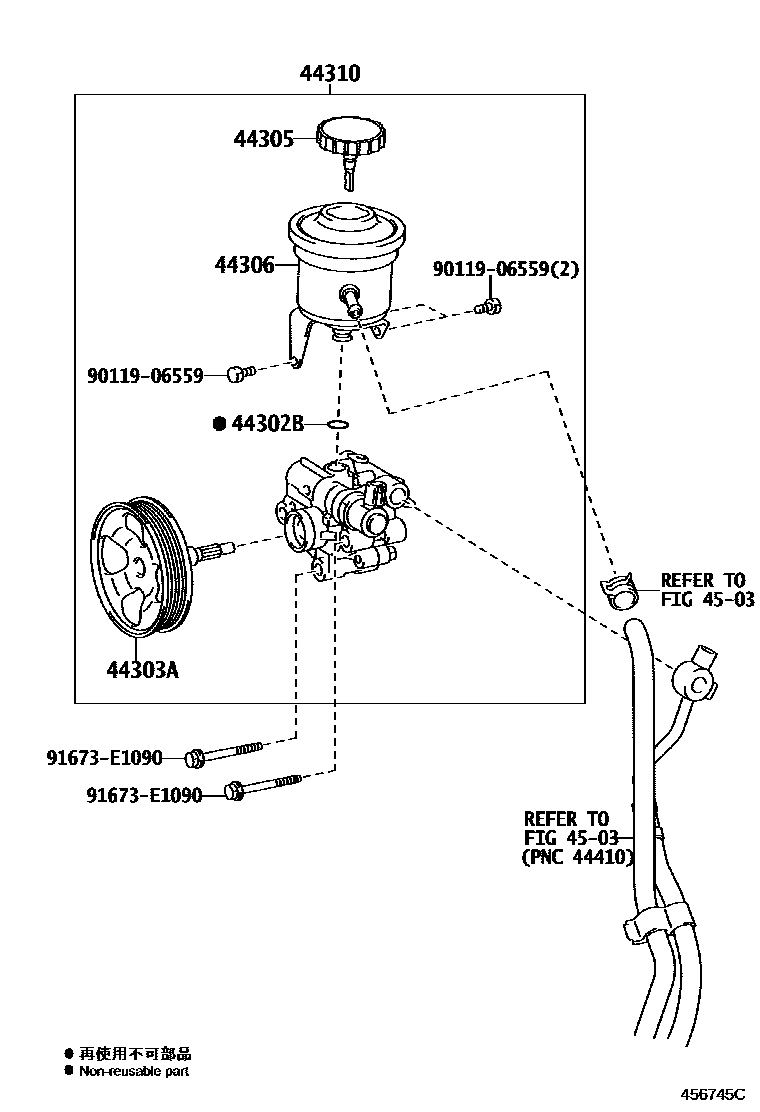

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-11020iTRJ152201503-201711

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iTRJ152201503-201711

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-02070iGRJ150201311-202006

TYPE B:REFER ILLUST.

main44305-22061iTRJ152201503-201711

main44305-28060iGRJ150201005-201207

sub44305-28061

main44305-28061iGRJ152201311-202006

TYPE A:REFER ILLUST.

main44305-28061iGRJ150201208-201311

44306RESERVOIR SUB-ASSY, VANE PUMP OIL

main44306-25060iTRJ152201503-201711

44310PUMP ASSY, VANE

main44310-0G020iGRJ150201005-201212

sub44310-0G021

main44310-0G021iGRJ150201301-202006

main44310-60562iTRJ150201503-201711

sub44310-60563

4503

9011906559

main90119-06559

91673E1090

main91673-E1090

8 parts on this diagram · 2 diagrams in section
