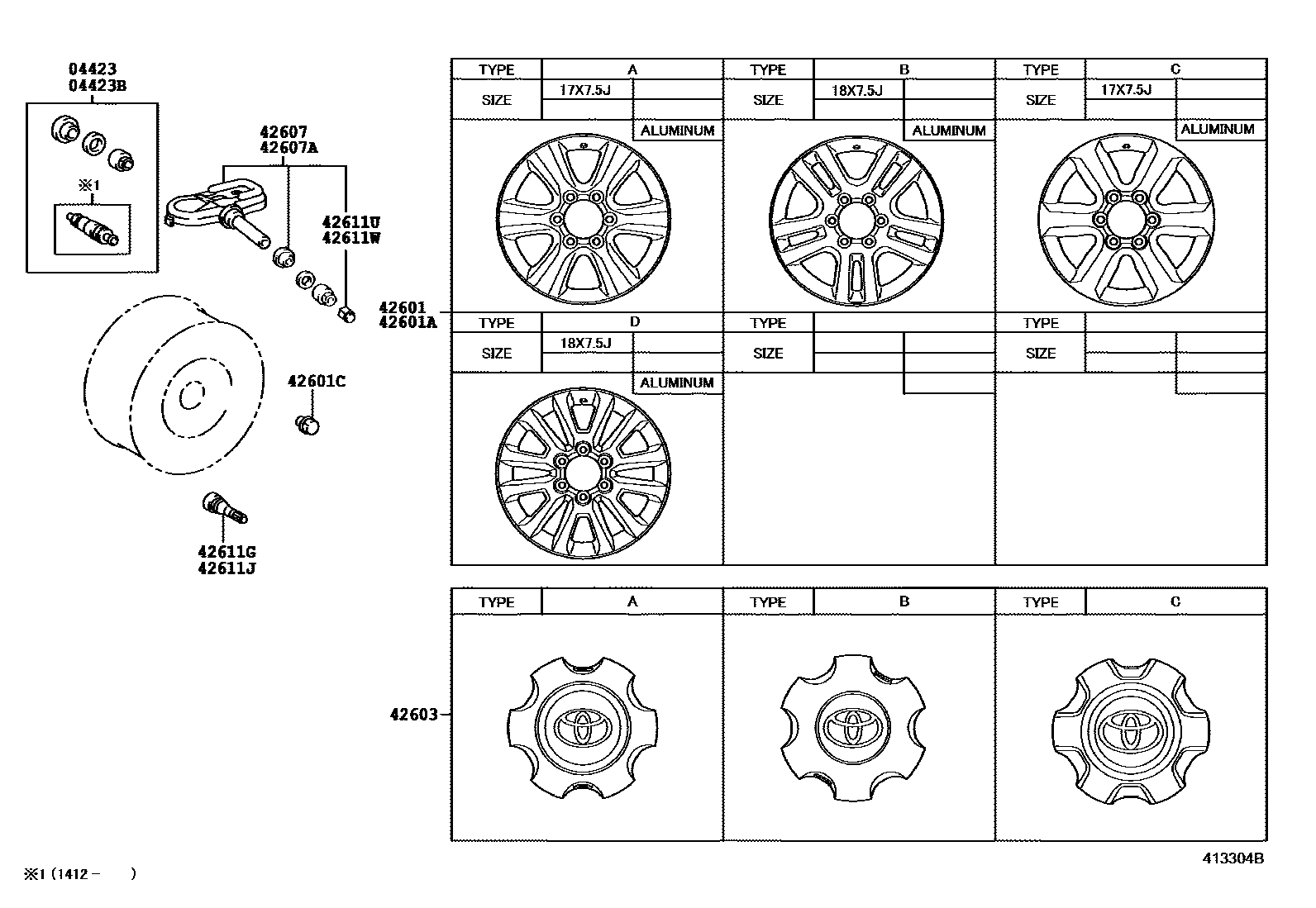

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
TX-L NAVI PACKAGE
TX-L PACKAGE
TX-L PACKAGE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
TX-L NAVI PACKAGE
TX-L PACKAGE
TX-L PACKAGE
42601WHEEL, DISC
17X7.5J,#,TYPE A:REFER ILLUST.
18X7.5J,#,TYPE B:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE D:REFER ILLUST.
18X7.5J,#,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J,#,TYPE A:REFER ILLUST.
18X7.5J,#,TYPE B:REFER ILLUST.
17X7.5J, #,TYPE C:REFER ILLUST.
18X7.5J,#,TYPE D:REFER ILLUST.
18X7.5J,#,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE C:REFER ILLUST.
*ALU,TYPE C:REFER ILLUST.
*ALU,TYPE A:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TX-L NAVI PACKAGE
TX-L PACKAGE
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
TX-L NAVI PACKAGE
TX-L PACKAGE
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
TX-L PACKAGE
TX-L PACKAGE
TX-L NAVI PACKAGE
42611WCAP, TIRE VALVE (FOR SPARE)
TX-L PACKAGE
TX-L PACKAGE
TX-L NAVI PACKAGE
12 parts on this diagram · 2 diagrams in section
