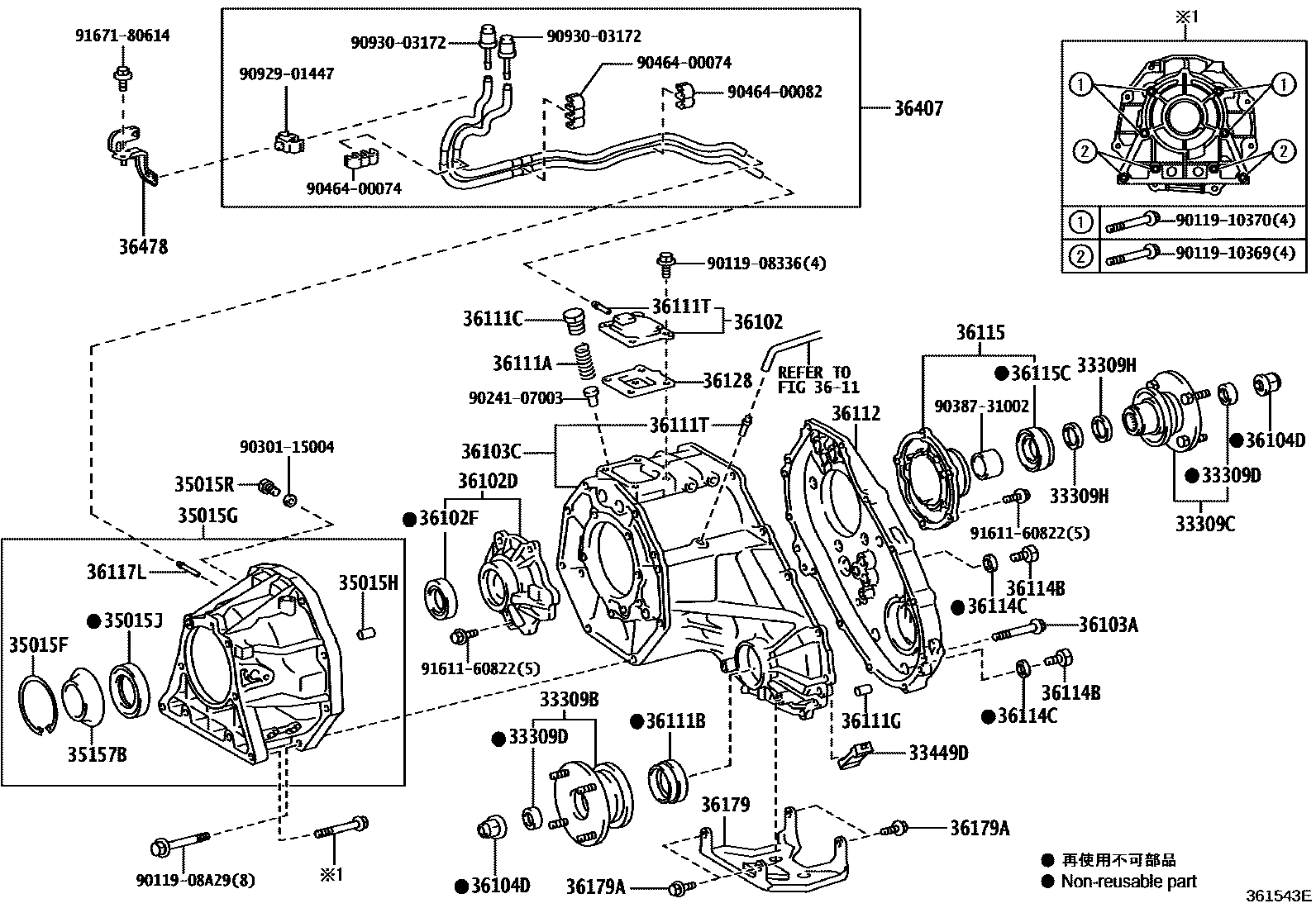

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35111iGRJ150201005-201411

sub33309-35112

sub90311-41017

main33309-35112iGRJ150,TRJ150201411-201904

sub33309-35113

main33309-35113iGRJ152201905-202006

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-35120iGRJ150201005-201711

main33309-71030iGRJ152201711-202006

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001iGRJ150201005-202006

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35030iGRJ152,TRJ152201005-201711

N=31,OD=38

main36275-71010iGRJ152201711-202006

T=0.8

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iGRJ150,TRJ150201005-202006

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-72001iGRJ150201005-202006

35015GADAPTER, TRANSFER, REAR

main35015-35080iTRJ150..4FC201503-201509

main35015-35120iGRJ150201005-201509

main35015-71030iGRJ152,TRJ152..6FC201509-202006

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iGRJ150201005-202006

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-43007iGRJ150,TRJ150..ATM201005-201509

35015RPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRJ150201005-202006

35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL

main35157-60010iGRJ150201005-202006

36102COVER SUB-ASSY, TRANSFER CASE

main36102-35040iGRJ150201005-202006

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-35060iGRJ150201005-201711

36102FSEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)

main90311-43008iGRJ150201005-201711

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28iGRJ150201005-202006

*8-1.25PX55-30

36103CCASE, TRANSFER, FRONT

main36103-35060iGRJ152201711-202006

sub36101-71020

main36103-35070iGRJ150201005-201711

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016iGRJ150201005-201711

main90179-22016iGRJ152201711-202006

NO.1

main90179-24011iGRJ152201711-202006

NO.2

3611

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iGRJ150201005-202006

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41013iGRJ150201005-201411

main90311-41017iGRJ152,TRJ152201411-202006

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iGRJ150201005-202006

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iGRJ150201005-202006

L=14,OD=10

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iGRJ150201005-202006

sub90406-T0007

36112CASE, TRANSFER, REAR

main36112-35090iGRJ150201005-201711

main36112-71010iGRJ152201711-202006

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iGRJ150201005-202006

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iGRJ150201005-202006

36115HOUSING, TRANSFER EXTENSION

main36105-35050iGRJ150201005-201711

main36105-71010iGRJ152201711-202006

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iGRJ152,TRJ152201005-201711

sub90311-41020

main90311-45034iGRJ152201711-202006

36117ADAPTER, TRANSFER

main36107-60080iTRJ150..5F201503-201711

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iGRJ150201005-202006

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-35060iGRJ150201005-202006

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0G010iGRJ150201005-202006

36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)

main91611-G0820iGRJ150201005-202006

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-0G010iGRJ150201005-201509

main36407-0G020iGRJ152201509-201711

main36407-0G030iTRJ152..6FC201509-201711

main36407-0G040iGRJ152201711-202006

main36407-60260iTRJ152..5F201503-201711

main36407-60270iTRJ150..4FC201503-201509

36478BRACKET, TRANSFER BREATHER

main36478-0G030iGRJ152201711-202006

main36478-60060iGRJ150201005-201509

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910369

main90119-10369

9011910370

main90119-10370

9024107003

main90241-07003

9030115004

main90301-15004

9038731002

main90387-31002

9046400074

main90464-00074

9046400082

main90464-00082

9092901447

main90929-01447

9093003172

main90930-03172

9161160822

main91611-60822

9167180614

main91671-80614

48 parts on this diagram · 6 diagrams in section
