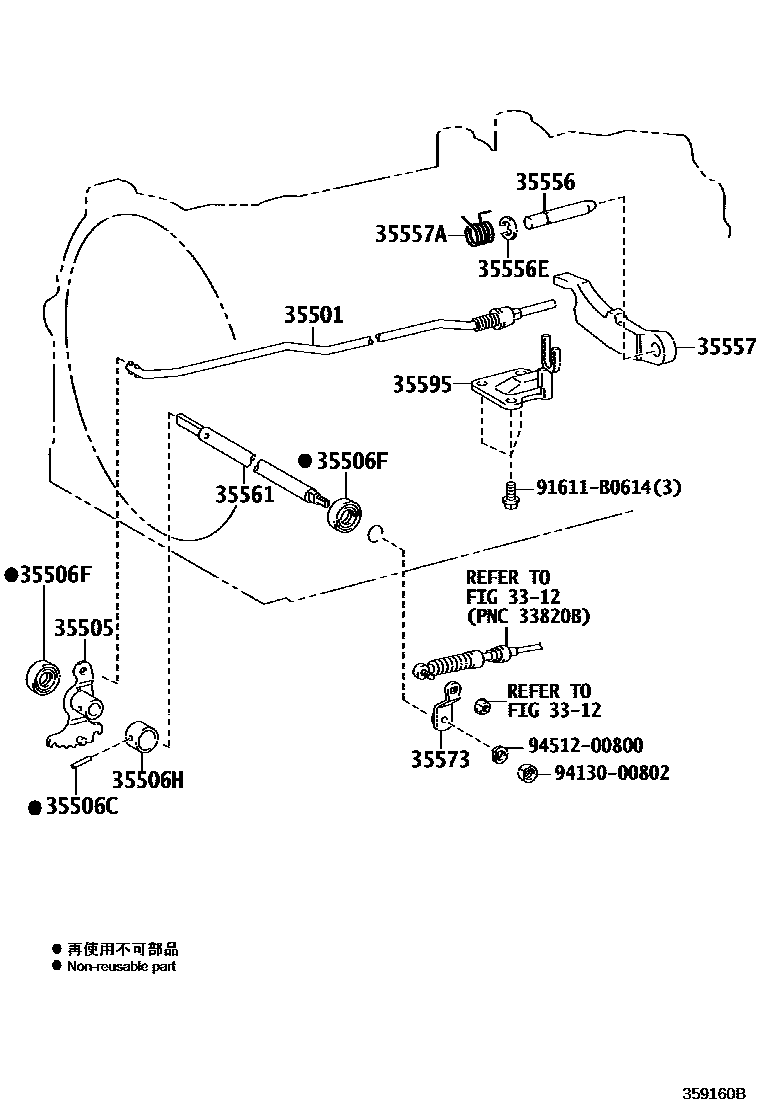

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A343F 0002 1A750F 0003 1AC60F

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-71010iTRJ150..4FC¥2,730201503-201509

main35501-71020iGRJ152,TRJ152..6FC¥1,610201509-202006

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26010iGRJ152,TRJ152..6FC¥870201509-202006

main35505-60030iTRJ150..4FC¥1,840201503-201509

sub35505-26020¥1,530

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRJ152¥160201503-202006

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRJ150¥270201005-202006

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iTRJ150..4FC¥210201503-202006

35556SHAFT, PARKING LOCK PAWL

main35556-30020iTRJ150..4FC¥440201503-201509

main35556-60020iGRJ152,TRJ152..6FC¥380201509-202006

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTRJ150..4FC¥110201503-202006

35557PAWL, PARKING LOCK

main35557-60020iTRJ150..4FC¥2,490201503-201509

main35557-71010iGRJ152,TRJ152..6FC¥2,810201509-202006

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iTRJ150..4FC¥190201503-201509

main90949-03123iGRJ152,TRJ152..6FC¥120201509-202006

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iTRJ150..4FC¥2,070201503-201509

main35561-60030iGRJ152,TRJ152..6FC¥1,860201509-202006

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-60020iGRJ150¥610201005-201509

main35573-71010iGRJ152,TRJ152..6FC¥510201509-202006

35595BRACKET, PARKING LOCK PAWL

main35595-60010iTRJ150..4FC¥1,460201503-201509

main35595-71010iGRJ152,TRJ152..6FC¥800201509-202006

91611B0614

main91611-B0614¥110

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

16 parts on this diagram · 3 diagrams in section
