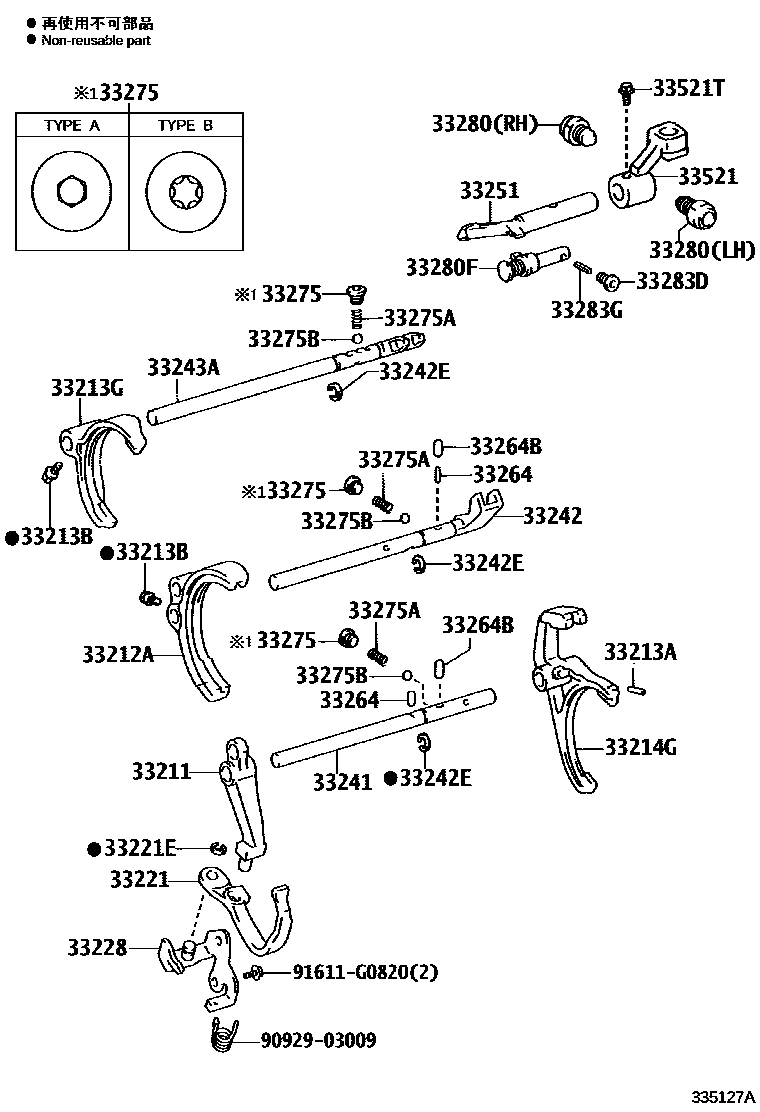

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221ERING(FOR REVERSE SHIFT ARM END SHAFT)
33228BRACKET, REVERSE SHIFT ARM
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33251LEVER, SHIFT & SELECT
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.6,OD=9.5
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18,TYPE B:REFER ILLUST.
OD=17,TYPE A:REFER ILLUST.
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=33.8
33275BBALL, SHAFT DETENT
33280PIN ASSY, REVERSE RESTRICT
RH
LH
33280FPIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
9092903009
main90929-03009
91611G0820
main91611-G0820
27 parts on this diagram · 1 diagram in section
