CLUTCH RELEASE CYLINDER

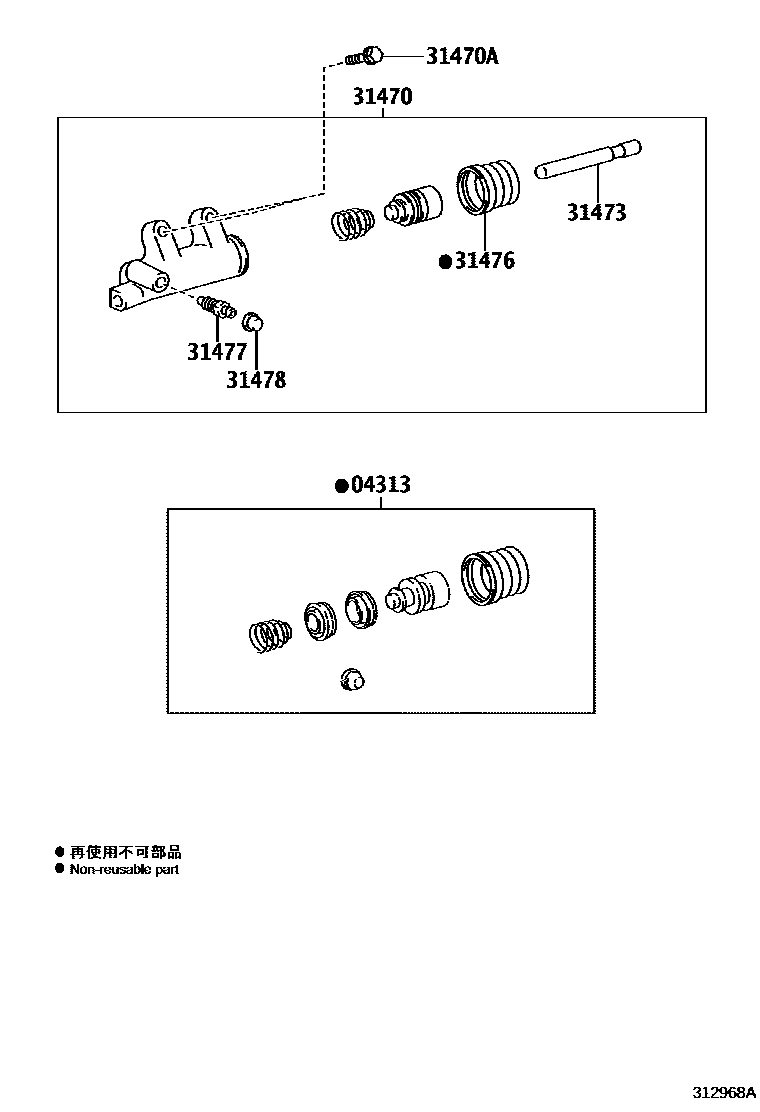

Parts diagram

04313CYLINDER KIT, CLUTCH RELEASE

main04313-60170i201503-201509

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35191i201503-201509

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825i201503-201509

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030i201503-201509

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010i201503-201509

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010i201503-201509

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010i201503-201509

7 parts on this diagram · 1 diagram in section
