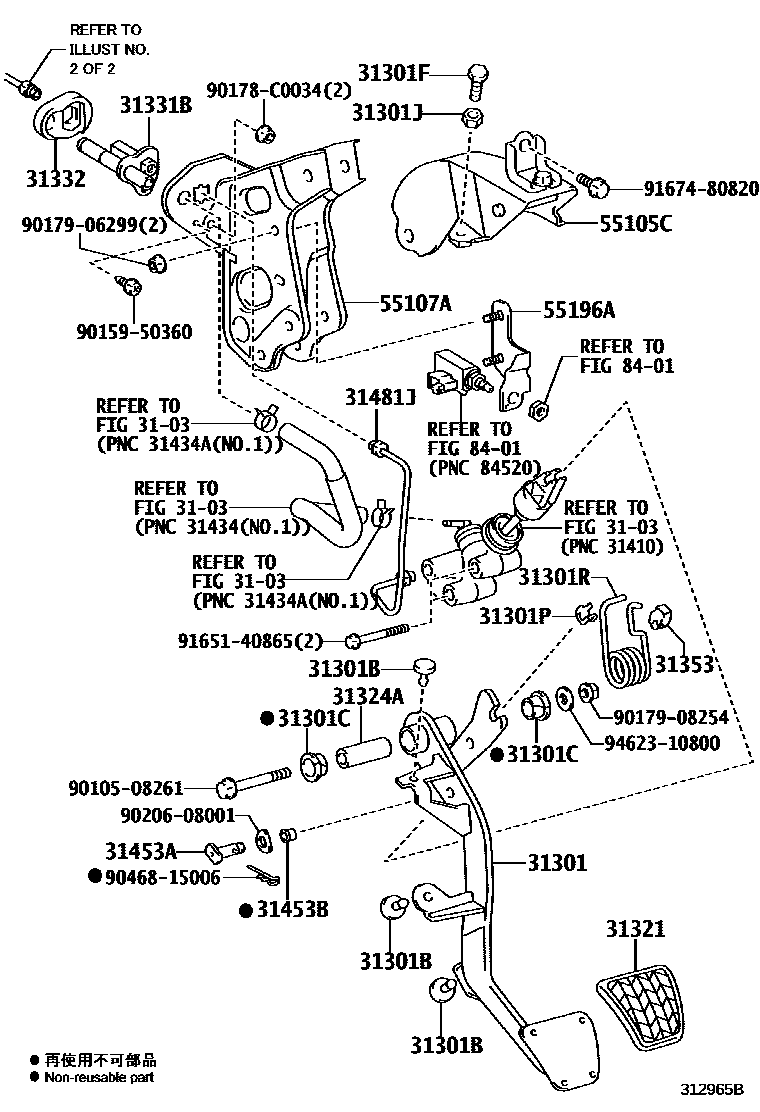

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

3103

31301PEDAL SUB-ASSY, CLUTCH

main31301-60360iTRJ150..5F201503-201509

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iTRJ150..5F201503-201509

31301CBUSH(FOR CLUTCH PEDAL)

main90386-14015iTRJ150..5F201503-201509

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iTRJ150..5F201503-201509

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iTRJ150..5F201503-201509

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iTRJ150..5F201503-201509

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03125iTRJ150..5F201503-201509

31321PAD, CLUTCH PEDAL

main31321-52010iTRJ150..5F201503-201512

main31321-52020iTRJ152..5F201512

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-08160iTRJ150..5F201503-201509

31331BWAY, CLUTCH PEDAL SUPPORT

main31331-60010iTRJ150..5F201503-201509

31332GROMMET, CLUTCH PEDAL SUPPORT

main31332-60010iTRJ150..5F201503-201509

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iTRJ150..5F201503-201509

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-T0002iTRJ150..5F201503-201509

L=31.9

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iTRJ150..5F201503-201509

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-60B20iTRJ150..5F201503-201509

31481JTUBE, CLUTCH MASTER CYLINDER TO 2 WAY

main31481-6A050iTRJ150..5F201503-201509

55105CSUPPORT, PEDAL BRACKET CLUTCH WIRE

main55105-60010iTRJ150..5F201503-201509

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-60190iTRJ150..5F201503-201509

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-35020iTRJ150..5F201503-201509

8401

9010508261

main90105-08261

9015950360

main90159-50360

90178C0034

main90178-C0034

9017906299

main90179-06299

9017908254

main90179-08254

9020608001

main90206-08001

9046815006

main90468-15006

9165140865

main91651-40865

9167480820

main91674-80820

9462310800

main94623-10800

31 parts on this diagram · 2 diagrams in section
