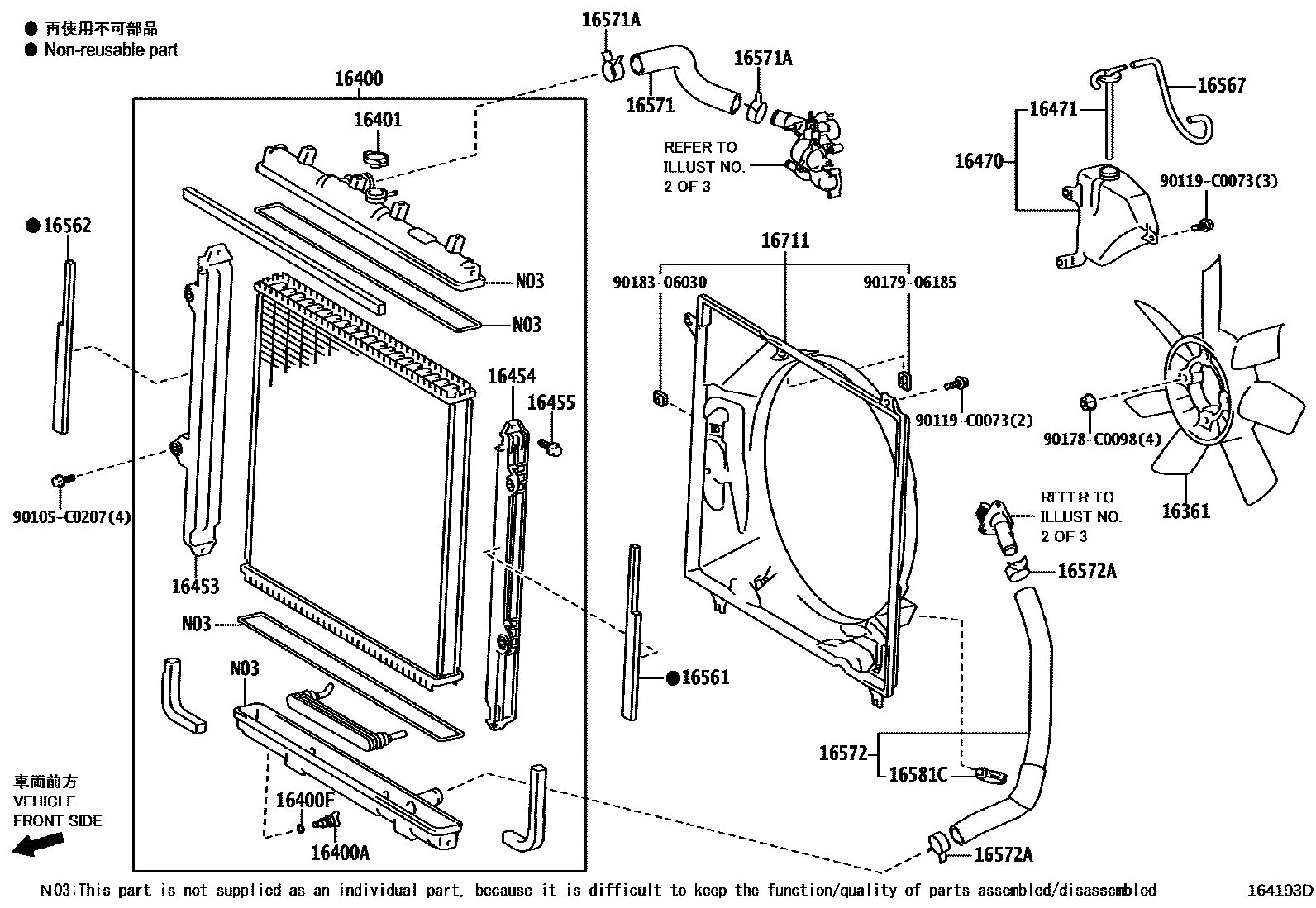

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

16361FAN

main16361-31060i1GRFE..GRJ150201005-202006

main16361-75021i2TRFE..TRJ150201503-201509

16400RADIATOR ASSY

main16400-0C500i2TRFE..TRJ152..6FC201509

main16400-0C510i2TRFE..TRJ152..5F201503-201509

main16400-0P210i7GRFKS..GRJ152201509-202006

main16400-0P320i1GRFE..GRJ150201005-201509

main16400-75442i2TRFE..TRJ150..4FC201503-201509

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-0H290i7GRFKS..GRJ152201005-202006

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-0P460i7GRFKS..GRJ152201906-202006

main16492-21050i2TRFE..TRJ152201005-201906

16401CAP SUB-ASSY, RADIATOR

main16401-0P160i1GRFE..GRJ150201005-201205

sub16401-31791

main16401-0P170i2TRFE..TRJ152201311-202006

main16401-31791i2TRFE..TRJ150..4FC201206-201509

16453PLATE, RADIATOR SIDE

main16453-0P210i7GRFKS..GRJ152201509-202006

main16453-31710i1GRFE..GRJ150201005-201509

16454PLATE, RADIATOR SIDE

main16454-0P210i7GRFKS..GRJ152201509-202006

main16454-31710i1GRFE..GRJ150201005-201509

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820i1GRFE..GRJ150201005-202006

16470TANK ASSY, RADIATOR RESERVE

main16470-0P070i1GRFE..GRJ150201005-202006

16471CAP SUB-ASSY, RESERVE TANK

main16405-0P070i1GRFE..GRJ150201005-202006

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0P100i2TRFE..TRJ152201212-202006

main16561-31080i1GRFE..GRJ150201005-201212

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-0P050i1GRFE..GRJ150201212-202006

main16562-31020i1GRFE..GRJ150201005-201212

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-31010i2TRFE..TRJ150201503-201509

main16567-31020i7GRFKS..GRJ152201005-202006

16571HOSE, RADIATOR, INLET

main16571-0P240i1GRFE..GRJ150201005-202006

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96136-44301i1GRFE..GRJ150201005-202006

16572HOSE, RADIATOR, OUTLET

main16572-0P250i1GRFE..GRJ150201005-201509

main16572-0P370i7GRFKS..GRJ152201509-202006

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96136-44301i7GRFKS..GRJ152201005-202006

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-26040i1GRFE..GRJ150201005-201101

main16581-28070i1GRFE..GRJ150201102-201509

16711SHROUD, FAN

main16711-0C260i2TRFE..TRJ150201503-201509

(L)

main16711-0P360i7GRFKS..GRJ152201509-202006

main16711-31490i1GRFE..GRJ150201005-201509

sub16711-31491

sub90183-06030

90105C0207

main90105-C0207

90119C0073

main90119-C0073

90178C0098

main90178-C0098

9017906185

main90179-06185

9018306030

main90183-06030

24 parts on this diagram · 10 diagrams in section
