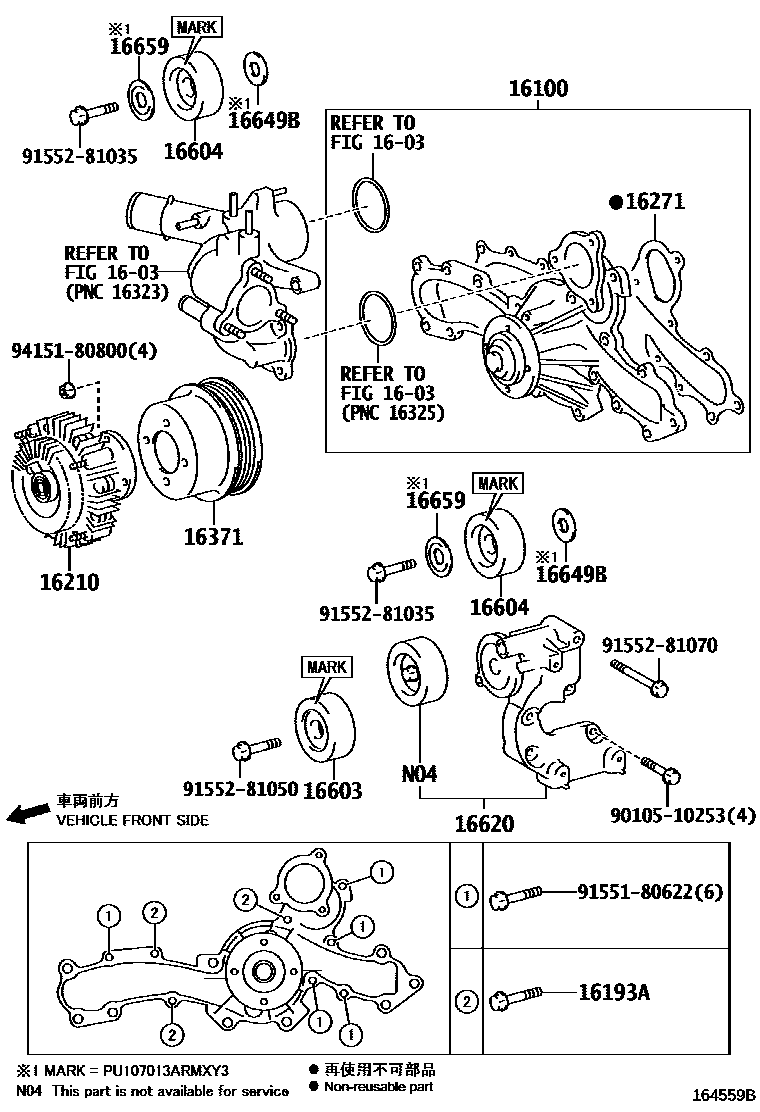

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39545i1GRFE..GRJ150201005-201311

main16100-39625i7GRFKS..GRJ152201711-202004

main16100-39626i7GRFKS..GRJ152202004-202006

main16100-79445i2TRFE..TRJ152201509

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i7GRFKS..GRJ152201711-202006

16210COUPLING ASSY, FLUID

main16210-31040i7GRFKS..GRJ152201711-202006

main16210-75100i2TRFE..TRJ152201509

16271GASKET, WATER PUMP

main16271-31040i1GRFE..GRJ150201005-201311

main16271-31060i7GRFKS..GRJ152201509-201711

16371PULLEY, FAN

main16371-31040i1GRFE..GRJ150201311-201509

main16371-31050i7GRFKS..GRJ152201711-202006

main16371-75040i2TRFE..TRJ152201509

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31040i2TRFE..TRJ15#201503-201602

main16603-31050i7GRFKS..GRJ152201711-202006

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31020×2i1GRFE..GRJ150201311-201509

MARK=PU107013ARMXY3

main16604-31030×2i1GRFE..GRJ150201105-201311

MARK=PU107016RMXY

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31051i1GRFE..GRJ150201005-201311

main16620-31090i7GRFKS..GRJ152201509-201711

16649BPLATE, IDLER PULLEY COVER

main16649-31020×2i1GRFE..GRJ150201005-201311

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011×2i1GRFE..GRJ150201005-201311

9010510253

main90105-10253

9155180622

main91551-80622

9155281035

main91552-81035

9155281050

main91552-81050

9155281070

main91552-81070

9415180800

main94151-80800

17 parts on this diagram · 3 diagrams in section
