VENTILATION HOSE

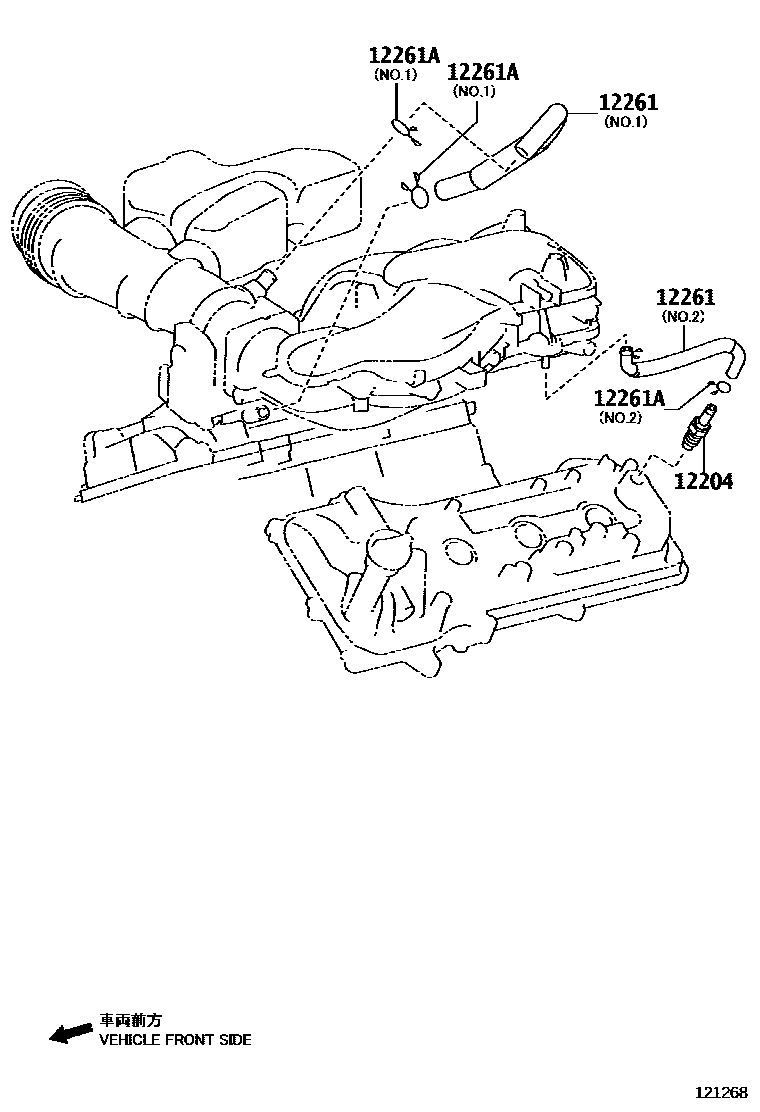

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-0C010i201503-201509
main12204-0C030i201509
main12204-31110i201005-201509
main12204-31150i201509-202006
12261HOSE, VENTILATION
main12261-0P100i201311-201509
NO.1
main12261-31130i201005-201509
NO.2
main12261-31140i201005-201311
NO.1
main12261-31190i201509-202006
main12261-75100i201503-201509
main12261-75140i201509
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-14001i201503-201509
main90467-14017i201005-201509
NO.2
main90467-15120i201509-202006
main90467-21004i201005-201509
NO.1

3 parts on this diagram · 4 diagrams in section
