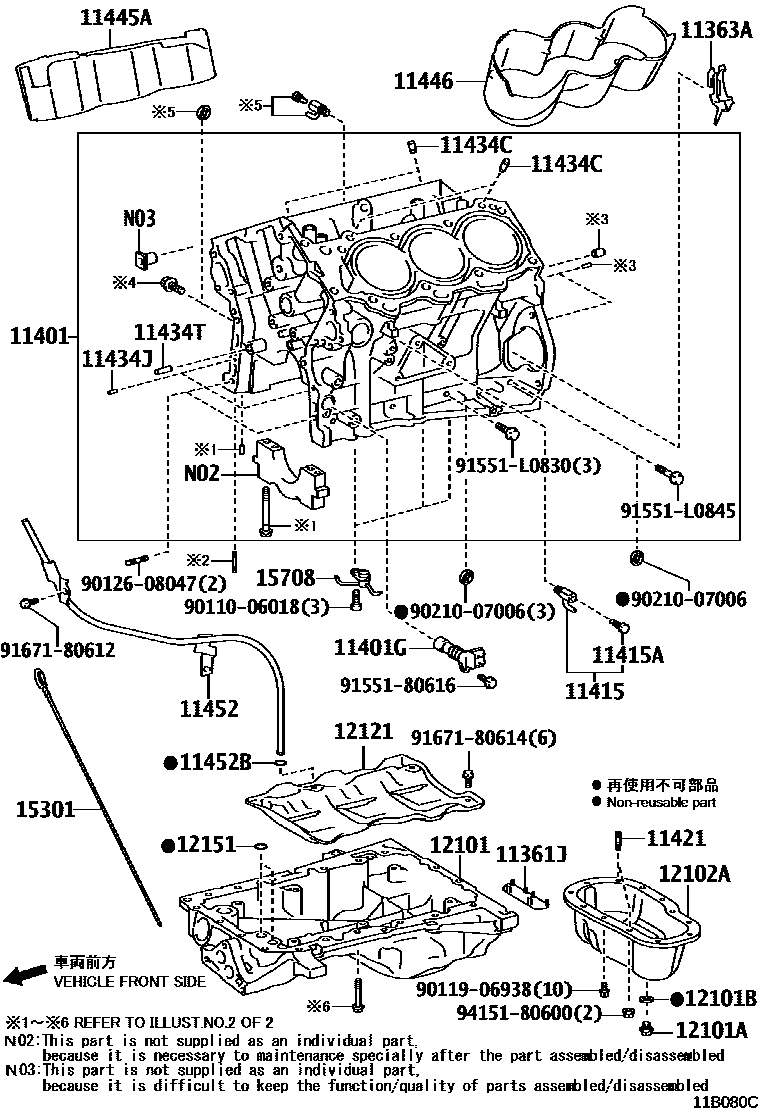

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-31040i1GRFE..GRJ150201005-202006

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31020i1GRFE..GRJ150201005-201410

sub11363-31050

main11363-31050i1GRFE..GRJ150201411-202006

11401BLOCK SUB-ASSY, CYLINDER

main11401-75081i2TRFE..TRJ150201503-201509

sub11401-75082

main11401-80794i1GRFE..GRJ150201005-201509

sub11401-80846

main11401-80835i7GRFKS..GRJ152201509-201911

sub11401-80862

main11401-80862i7GRFKS..GRJ152201911-202006

11401GSENSOR, CRANK POSITION

main90919-05057i1GRFE..GRJ150201005-201509

main90919-05098i7GRFKS..GRJ152201509-201711

main90919-05099i7GRFKS..GRJ152201711-202006

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-52001i7GRFKS..GRJ152201509-201911

LH

main90910-09118i2TRFE..TRJ150201503-201509

main90910-09129i1GRFE..GRJ150201005-201509

main90910-09129i7GRFKS..GRJ152201509-202006

RH

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1GRFE..GRJ150201005-202006

11421BOLT, STUD(FOR OIL PAN)

main90126-06028i1GRFE..GRJ150201005-201509

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1GRFE..GRJ150201005-202006

L=18,OD=8

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097i1GRFE..GRJ150201005-201509

main90253-15001i2TRFE..TRJ150201503-201509

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GRFE..GRJ150201005-201509

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-31050i7GRFKS..GRJ152201509-202006

11445ASPACER, CYLINDER BLOCK WATER JACKET, RH

main11445-31040i1GRFE..GRJ150201005-201509

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-31040i1GRFE..GRJ150201005-201509

main11446-31050i7GRFKS..GRJ152201509-202006

11452GUIDE, OIL LEVEL GAGE

main11409-75071i2TRFE..TRJ152201503-201509

main11452-31080i1GRFE..GRJ150201005-201509

main11452-31150i7GRFKS..GRJ152201509-202006

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i7GRFKS..GRJ152201509-202006

main96723-19010i1GRFE..GRJ150201005-201509

12101PAN SUB-ASSY, OIL

main12101-31160i1GRFE..GRJ150201005-201509

main12101-31220i7GRFKS..GRJ152201509-202006

main12101-75160i2TRFE..TRJ150201503-201509

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1GRFE..GRJ150201005-202006

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2TRFE..TRJ150201005-202006

12102APAN SUB-ASSY, OIL, NO.2

main12102-31010i1GRFE..GRJ150201005-201509

main12102-31090i7GRFKS..GRJ152201509-202006

main12102-75021i2TRFE..TRJ152201503-201509

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31080i7GRFKS..GRJ152201509-202006

main12121-31090i1GRFE..GRJ150201005-201509

12151GASKET, OIL PAN

main12151-31010i7GRFKS..GRJ152201005-202006

15301GAGE SUB-ASSY, OIL LEVEL

main15301-50140i7GRFKS..GRJ152201005-202006

main15301-75091i2TRFE..TRJ150201503-201509

main15301-75130i2TRFE..TRJ152201509

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31030i1GRFE..GRJ150201005-201509

main15708-31050i7GRFKS..GRJ152201509-202006

main15708-75020i2TRFE..TRJ150201503-201509

9011006018

main90110-06018

9011906938

main90119-06938

9012608047

main90126-08047

9021007006

main90210-07006

9155180616

main91551-80616

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167180612

main91671-80612

9167180614

main91671-80614

9415180600

main94151-80600
