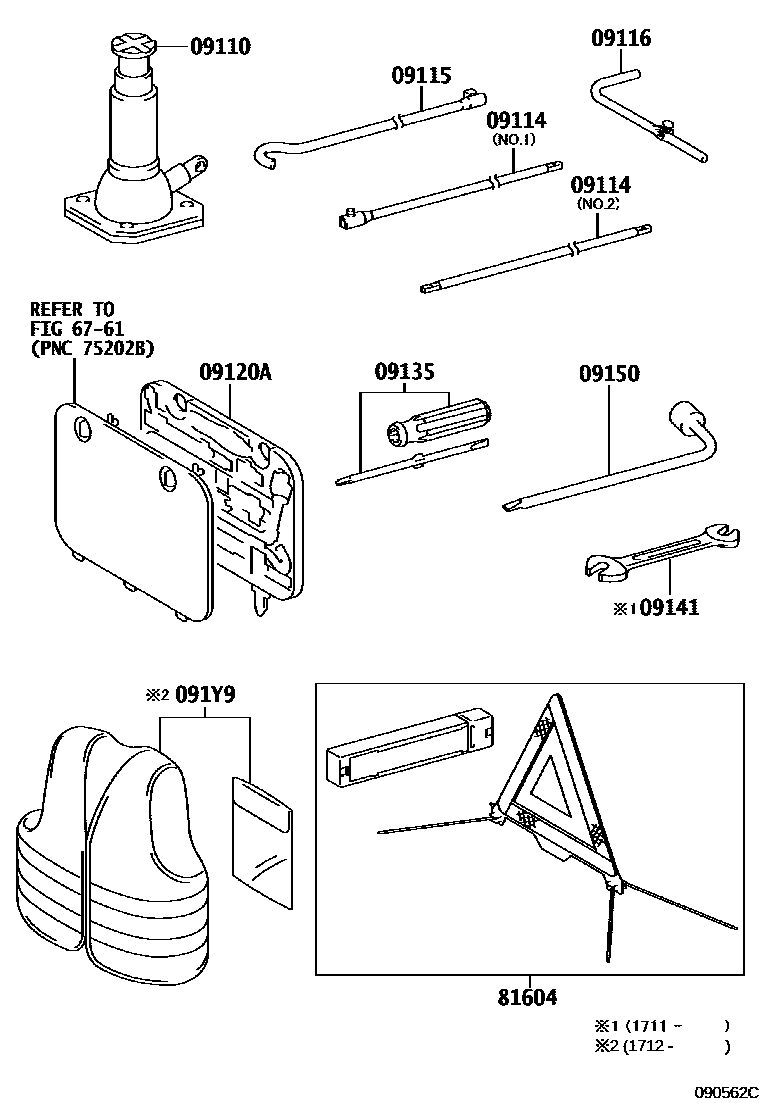

STANDARD TOOL

09110JACK ASSY

main09111-60130iGRJ152,TRJ152201311-201602

main09111-60131iGRJ152,TRJ152201603-201711

sub09111-60132

main09111-60140iGRJ150201005-201108

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0G010supersedes 09114-0G020iGRJ150,TRJ150201311-201509

NO.2

main09114-0G020iGRJ150,TRJ150201311-201509

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-0G010supersedes 09115-0G010iGRJ150,TRJ150201311-201509

09116LEVER, JACK HANDLE

main09116-0G010supersedes 09116-0G010iGRJ150,TRJ150201311-201509

09120ACASE, TOOL

main09120-0G020supersedes 09120-0G020iGRJ150,TRJ150201311-201509

09135DRIVER, SCREW

main09135-0G010supersedes 09135-0G010iGRJ150,TRJ150201311-201509

09141SPANNER

main99914-11214iGRJ152201711-202006

12 X 14,SPARE TIRE-WITH(BACK DOOR)

09150WRENCH, HUB NUT BOX

main09150-0G020supersedes 09150-0G020iGRJ15#,TRJ15#201311-201711

091Y9JACKET, W/REFLECTOR

main091Y9-0G010iGRJ152201712-202006

6761

81604REFLECTOR SET, TRIANGLE

main81604-02030iGRJ150201005-201311

11 parts on this diagram · 1 diagram in section
