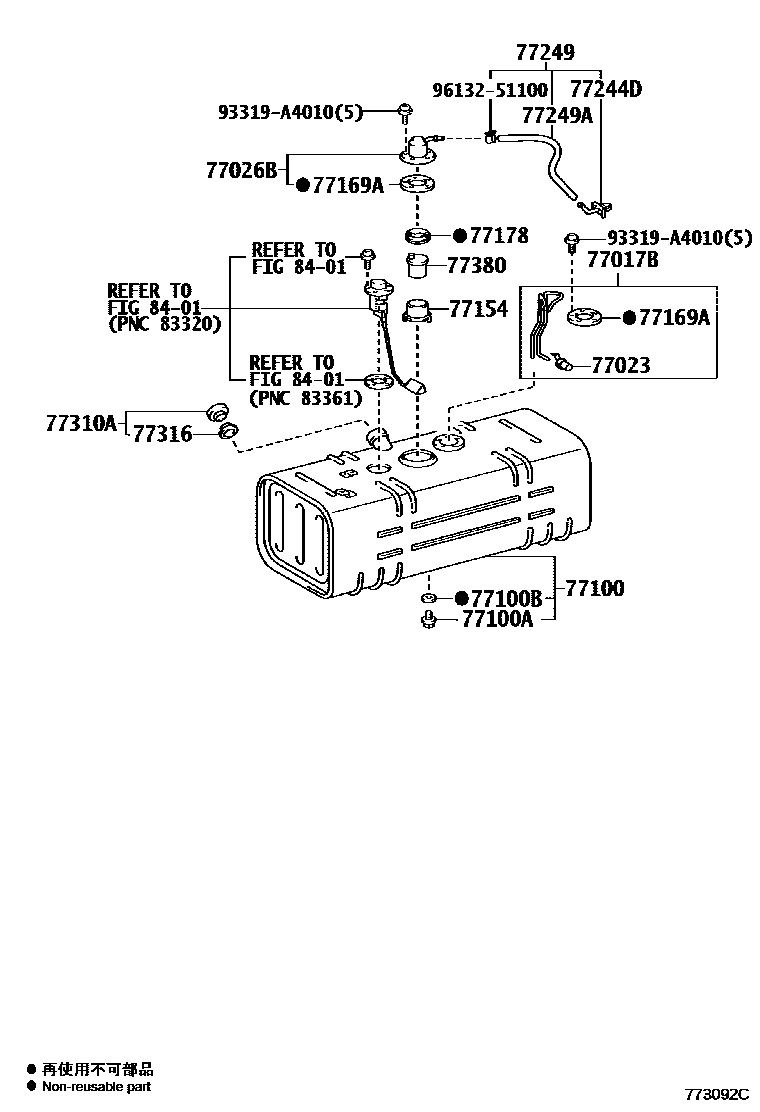

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK(SUB TANK) 0003 1FUEL TANK 0004 1FUEL TANK STAY 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TANK 0010 1FUEL TANK-150L 0011 1FUEL TUBE 0012 1FUEL TANK-150

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-37070iXZU710,720..GEN201911

main77017-37090iXZU710,720,730..EUR201107-202005

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-36010iXZU710,720..GEN201911

main77023-60010iXZU710..CBU201107-202005

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-37010iXZU710,720..GEN201107-201512

main77026-37010iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

77100TANK ASSY, FUEL

main77001-37500iXZU710,720,730..EUR201306-201512

main77001-37650iXZU710..CBU201107-202005

main77100-37841iXZU710,720..GEN201911-202004

FUEL TANK-150L

sub77100-37842

main77100-37842iXZU710,720..GEN202005-202006

FUEL TANK-150L

sub77100-37843

main77100-37843iXZU710,720..GEN202007

FUEL TANK-150L

main77100-37C70iXZU710,720..GEN201911

77100APLUG(FOR FUEL TANK)

main90105-12116iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main90105-12116iXZU710,720,730..EUR201107-201512

77100BGASKET(FOR FUEL TANK)

main90430-12245iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main90430-12245iXZU710,720,730..EUR201107-201512

77154PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT

main77154-25010iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main77154-25010iXZU710,720,730..EUR201107-201512

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iXZU710,720,730..EUR201107-201512

main77169-14020iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-44010iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main77178-44010iXZU710,720,730..EUR201107-201512

77244DTUBE, FUEL EVAPORATION BREATHER, NO.1

main77244-37010iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main77244-37030iXZU710,720..GEN201911-202111

sub77244-37031

main77244-37031iXZU710,720..GEN202112

77249HOSE, FUEL EMISSION

main77249-37190iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main77249-37540iXZU710,720..GEN201911

main77249-37580iXZU710,720..GEN201911

FUEL TANK-150L

77249AHOSE, FUEL EMISSION

main95333-06040iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

77310ACAP ASSY, FUEL TANK

main77310-60100iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main77310-60100iXZU710,720..GEN201911

77316GASKET, FUEL TANK CAP

main77316-12050iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main77316-12050iXZU710,720..GEN201911

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iXZU710..CBU201107-202005

FUEL TANK-100L & W(SUB TANK)

main77380-26010iXZU710,720,730..EUR201107-201512

8401

93319A4010

main93319-A4010

9613251100

main96132-51100

18 parts on this diagram · 12 diagrams in section
