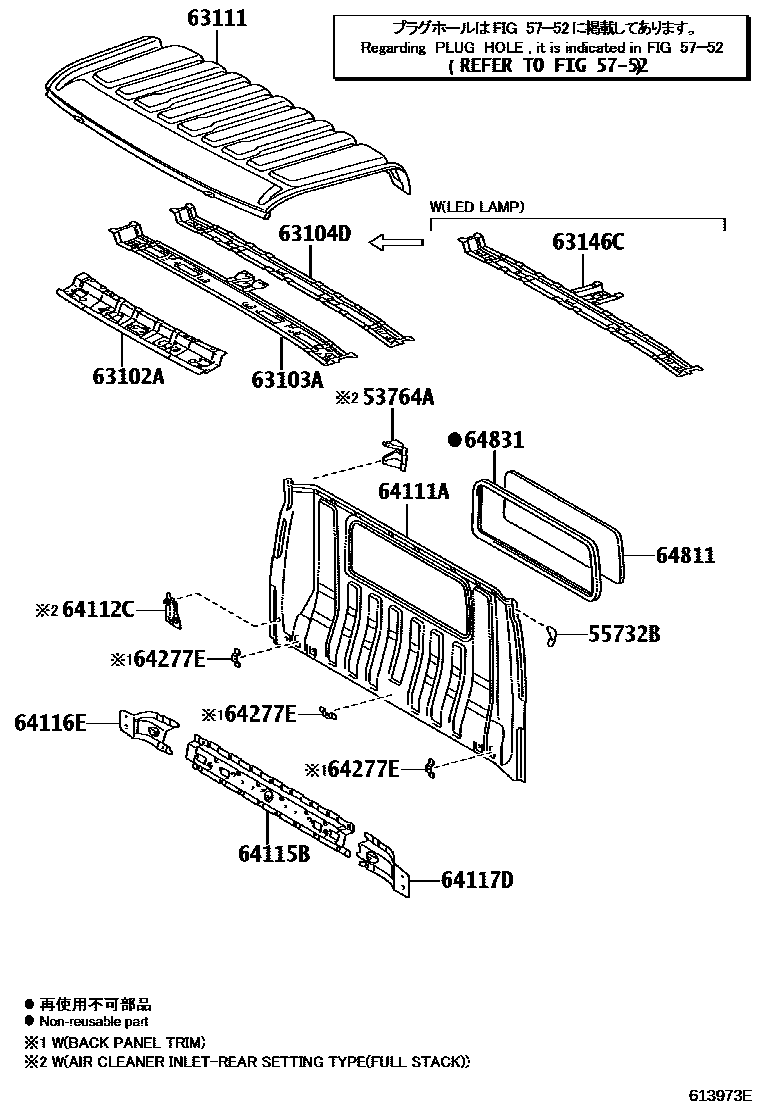

ROOF PANEL & BACK PANEL
53764ABRACKET, AIR CLEANER INLET, NO.1
AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY)
AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)
AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)
55732BBRACKET, FRONT PANEL, NO.2
5752
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
ROOM LAMP-WITH(LED LAMP)
64111APANEL, BACK
64112CPANEL, UPPER BACK, INNER
AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)
AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY)
64116EREINFORCEMENT, UPPER BACK, RH
64117DREINFORCEMENT, UPPER BACK, LH
64277EBRACKET, BACK PANEL TRIM, LOWER
AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)&BACK PANEL TRIM-WITH(LOWER ONLY)
BACK PANEL TRIM-WITH(LOWER ONLY)
64811GLASS, BACK WINDOW
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
64831WEATHERSTRIP, BACK WINDOW GLASS
16 parts on this diagram · 2 diagrams in section
