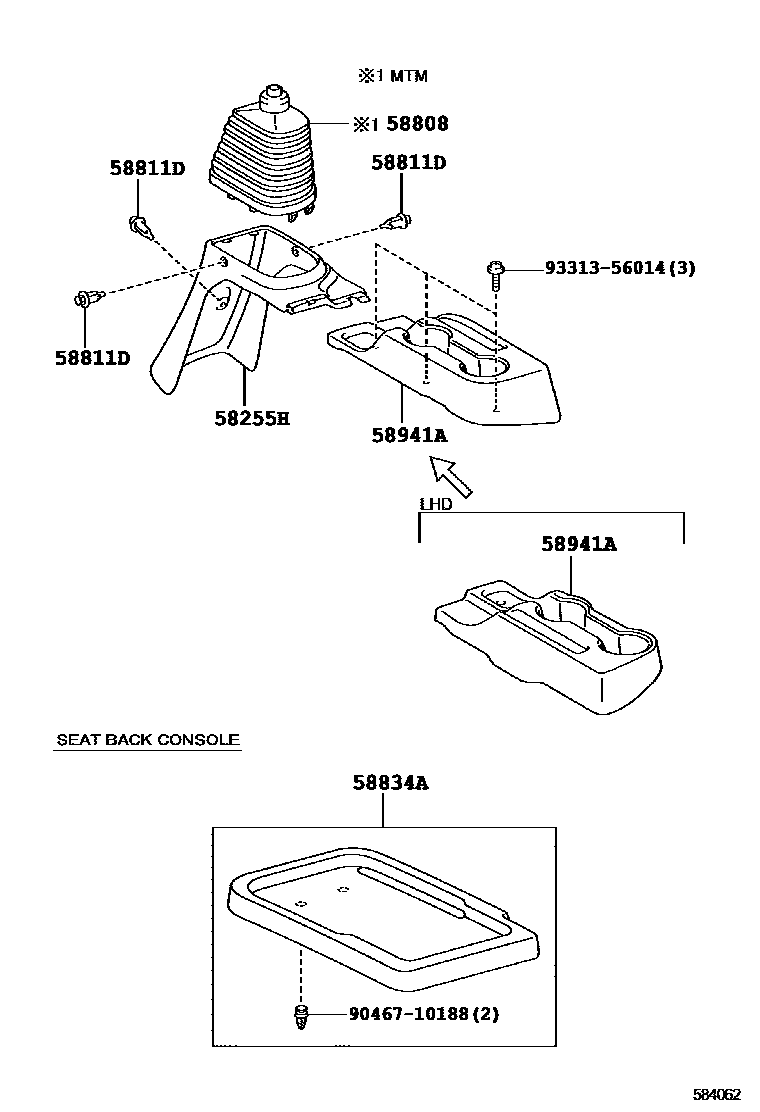

CONSOLE BOX & BRACKET
58255HCOVER, SHIFT LEVER BOOT
GRAY,TRIM1#
GRAY,TRIM1#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM1#
58811DCLIP(FOR CONSOLE BOX)
58834ACOVER, CONSOLE, LOWER
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE,GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#
GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER,GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SRS AIR BAG-WITH(DRIVER & PASSENGER),
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-PVC LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-FABRIC&SEAT BELT WARNING-WITH(DRIVER),GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT COVER MATERIAL-MOQUETTE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)&SEAT BELT WARNING-WITH(DRIVER),GRAY,T
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT BELT WARNING-WITH(DRIVER),GRAY,TRIM1#
FRONT SEAT-*PAS=TWO PERSONS,SEAT BACK SEPARATE TYPE&SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION),GRAY,TRIM1#
58941ACOVER, PARKING BRAKE HOLE
GRAY,TRIM1#
GRAY,TRIM1#
9046710188
main90467-10188
9331356014
main93313-56014
7 parts on this diagram · 2 diagrams in section
