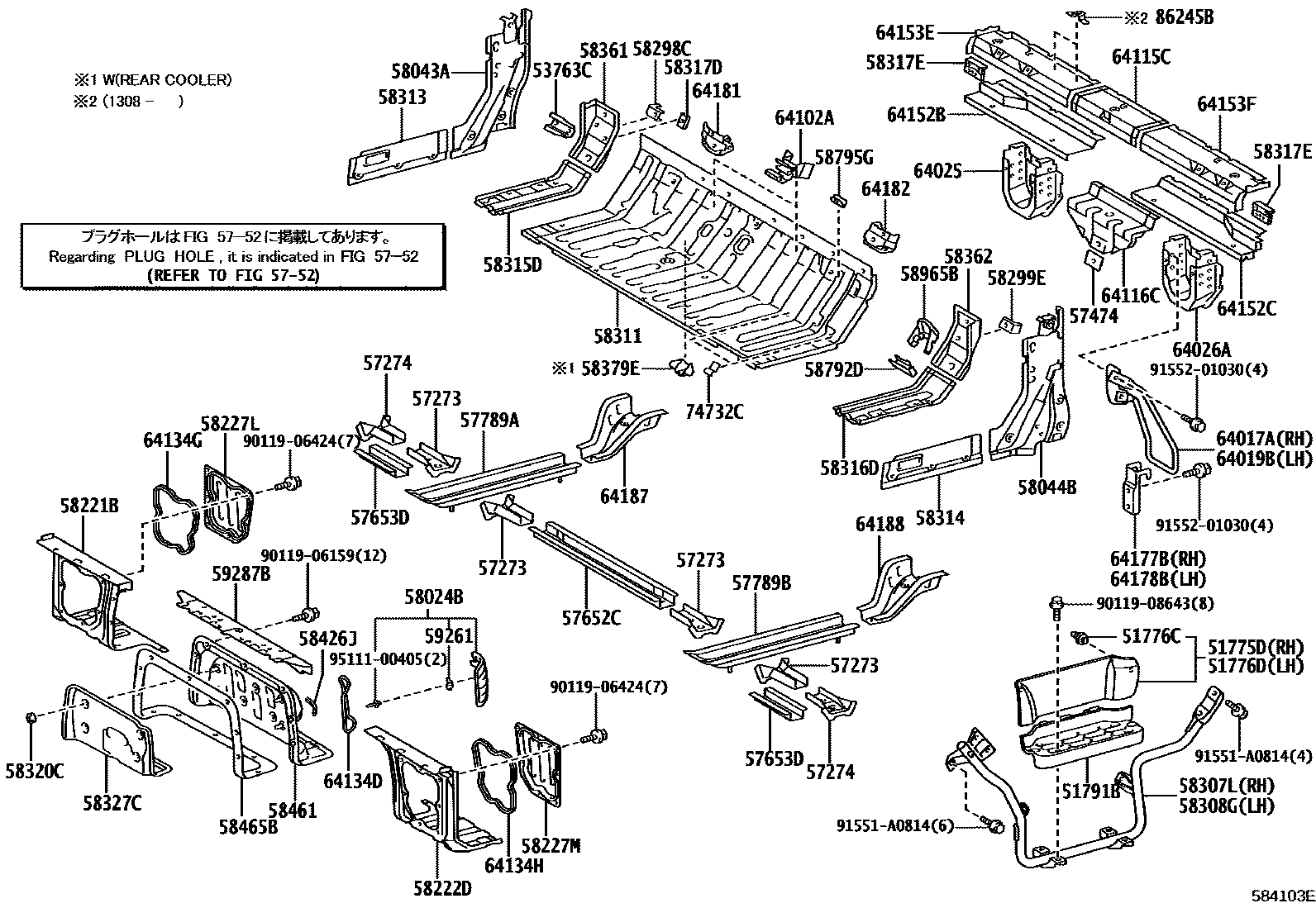

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51775DPLATE, SIDE STEP, RH

main51775-37090iXZU710..GCC..IV3¥5,100201108-201408

sub51775-37091¥5,100

main51775-37091iXZU710..DCB¥5,100201409-202005

51776CCLIP(FOR STEP PLATE)

main67771-89109iXZU710..GCC..IV3¥130201108-201408

main90467-10161iXZU710..DCB¥90201409-202005

51776DPLATE, SIDE STEP, LH

main51776-37110iXZU710..GCC..IV3¥5,100201108-201408

sub51776-37111¥5,100

main51776-37111iXZU710..DCB¥5,100201409-202005

51791BPANEL, REAR STEP

main51791-37040iXZU710..GCC..IV3¥6,200201108-201410

sub51791-37041¥6,200

main51791-37041iXZU710..GCC..IV3¥6,200201411-201501

sub51791-37042¥6,200

main51791-37042iXZU710..DCB¥6,200201501-202005

53763CBRACKET, AIR CLEANER INLET MOUNTING

main53763-37100iXZU710..DCB¥1,260201108-202005

57273GUSSET, REAR FLOOR CROSS, NO.1

main57273-37011iXZU710..DCB¥670201108-202005

57274GUSSET, REAR FLOOR CROSS, NO.2

main57274-37040iXZU710..DCB¥620201108-202005

57474PLATE, BELT ANCHOR, NO.1

main57474-37010iXZU710..DCB¥570201108-202005

5752

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-37020iXZU710..DCB¥6,500201108-202005

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-37011iXZU710..DCB¥1,470201108-202005

57789AREINFORCEMENT, REAR FLOOR MOUNTING, RH

main57789-37050iXZU710..DCB¥7,800201108-201709

sub57789-37070

main57789-37051iXZU710..DCB201703-201706

sub57789-37050¥7,800

main57789-37070iXZU710..DCB201709-202005

57789BREINFORCEMENT, REAR FLOOR MOUNTING, LH

main57789-37050iXZU710..DCB¥7,800201108-201709

sub57789-37070

main57789-37051iXZU710..DCB201703-201706

sub57789-37050¥7,800

main57789-37080iXZU710..DCB201709-202005

58024BCOVER SUB-ASSY, HEADER PANEL

main58024-37030iXZU710..DCB¥2,050201108-202005

58043APANEL SUB-ASSY, FLOOR SIDE, REAR RH

main58043-37120iXZU710..DCB¥5,200201108-202005

58044BPANEL SUB-ASSY, FLOOR SIDE, REAR LH

main58044-37130iXZU710..DCB¥7,500201108-202005

58221BPANEL, HEADER, RH

main58221-37120iXZU710..DCB¥14,500201108-202005

58222DPANEL, HEADER, LH

main58222-37150iXZU710..DCB¥15,000201108-202005

58227LCOVER, HEADER PANEL, RH

main58227-37090iXZU710..DCB201108-202005

58227MCOVER, HEADER PANEL, LH

main58227-37100iXZU710..DCB¥4,500201108-202005

58298CREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-95400iXZU710..DCB¥880201108-202005

58299EREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58298-95400iXZU710..DCB¥880201108-202005

58307LPANEL SUB-ASSY, STEP, RH

main58307-37090iXZU710..DCB¥12,000201108-202005

58308GPANEL SUB-ASSY, STEP, LH

main58308-37060iXZU710..DCB¥12,000201108-202005

58311PAN, REAR FLOOR

main58311-37440iXZU710..GCC..IV3¥26,000201108-201409

main58311-37441iXZU710..DCB201409-202005

58313PANEL, REAR FLOOR SIDE, RH

main58313-37110iXZU710..DCB¥3,350201108-202005

58314PANEL, REAR FLOOR SIDE, LH

main58314-37110iXZU710..DCB¥3,350201108-202005

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-37120iXZU710..DCB¥5,300201108-202005

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-37090iXZU710..DCB¥5,300201108-202005

58317DRETAINER, REAR SEAT ANCHOR, NO.1

main58317-37010iXZU710..DCB¥390201108-202005

58317ERETAINER, REAR SEAT, NO.2

main58317-37020iXZU710..DCB¥1,260201108-201704

sub58317-37030

main58317-37030iXZU710..DCB201705-202005

58320CCLIP(FOR REAR FLOOR SERVICE HOLE COVER)

main90467-06206-C0iXZU710..DCB201108-202005

BLACK

58327CINSULATOR, TRANSMISSION SERVICE HOLE COVER

main58327-37140iXZU710..DCB¥3,800201108-202005

58361REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, RH

main58361-37020iXZU710..DCB¥5,300201108-202005

58362REINFORCEMENT, REAR FLOOR PAN TO BODY LOWER BACK, LH

main58362-37020iXZU710..DCB¥5,300201108-202005

58379EBRACKET, HEATER HOSE CLAMP

58426JPROTECTOR, ENGINE SUB COVER

main58426-95405iXZU710..DCB¥190201108-202005

58461COVER, TRANSMISSION SERVICE HOLE

main58461-37170iXZU710..DCB¥9,600201108-202005

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-37130iXZU710..DCB¥2,800201108-202005

58792DSUPPORT, JACK

main58792-37010iXZU710..DCB¥570201108-202005

58795GPLATE, JACK CLAMP

main58795-95500iXZU710..DCB¥230201108-202005

58965BHOLDER, JACK

main58965-95400iXZU710..DCB¥820201108-202005

59261HOLDER, INSPECTION HOLE COVER LOCK

main59261-37020iXZU710..DCB¥140201108-202005

59287BBASE, TRANSMISSION COVER, CENTER

main59287-37060iXZU710..DCB¥5,400201108-202005

64017AREINFORCE SUB-ASSY, REAR MOUNTING BRACKET

main64017-37020iXZU710..DCB¥3,050201108-202005

64019BREINFORCE SUB-ASSY, REAR MOUNTING BRACKET, LH

main64019-37060iXZU710..DCB¥3,050201108-202005

64025BRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-37160iXZU710..GCC..IV3¥8,800201108-201409

64026ABRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37230iXZU710..GCC..IV3¥8,800201108-201409

64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT

main64102-37010iXZU710..DCB¥660201108-202005

64115CREINFORCEMENT, UPPER BACK, CENTER

main64115-37140iXZU710..DCB¥3,010201108-202005

64116CREINFORCEMENT, UPPER BACK, NO.2

main64116-37020iXZU710..DCB¥4,800201108-202005

64134DPACKING, HEADER PANEL COVER

main64134-37040iXZU710..DCB¥340201108-202005

64134GPACKING, HEADER PANEL COVER, RH

main64134-37050iXZU710..DCB201108-202005

64134HPACKING, HEADER PANEL COVER, LH

main64134-37060iXZU710..DCB¥7,300201108-202005

64152BFRAME, BACK, LOWER RH

main64152-37031iXZU710..DCB¥4,420201108-202005

64152CFRAME, BACK, LOWER LH

main64152-37051iXZU710..DCB¥4,420201108-202005

64153EFRAME, BACK, REAR RH

main64153-37090iXZU710..DCB¥7,400201108-202005

64153FFRAME, BACK, REAR LH

main64153-37100iXZU710..DCB¥7,400201108-202005

64177BSTOPPER, REAR MOUNTING BRACKET, RH

main64177-37100iXZU710..DCB¥3,100201108-202005

64178BSTOPPER, REAR MOUNTING BRACKET, LH

main64177-37100iXZU710..DCB¥3,100201108-202005

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64181-37060iXZU710..GCC..IV3¥2,450201108-201409

main64181-37080iXZU710..DCB¥3,100201409-202005

64182REINFORCEMENT, REAR SEAT BELT ANCHOR, NO.2

main64182-37190iXZU710..GCC..IV3¥2,450201108-201409

main64182-37220iXZU710..DCB¥3,100201409-202005

64187REINFORCE, REAR MOUNTING BRACKET, LOWER RH

main64187-37050iXZU710..DCB¥7,200201108-202005

64188REINFORCE, REAR MOUNTING BRACKET, LOWER LH

main64187-37050iXZU710..DCB¥7,200201108-202005

74732CBRACKET, TOOL BAG SET BAND

main74732-95600iXZU710..DCB¥390201108-202005

86245BBRACKET, VOLTAGE CONVERTER

main86245-37080iXZU710..DCB¥300201309-202005

9011906159

main90119-06159¥70

9011906424

main90119-06424¥70

9011908643

main90119-08643¥90

91551A0814

main91551-A0814¥80

9155201030

main91552-01030¥120

9511100405

main95111-00405¥190

72 parts on this diagram · 2 diagrams in section
