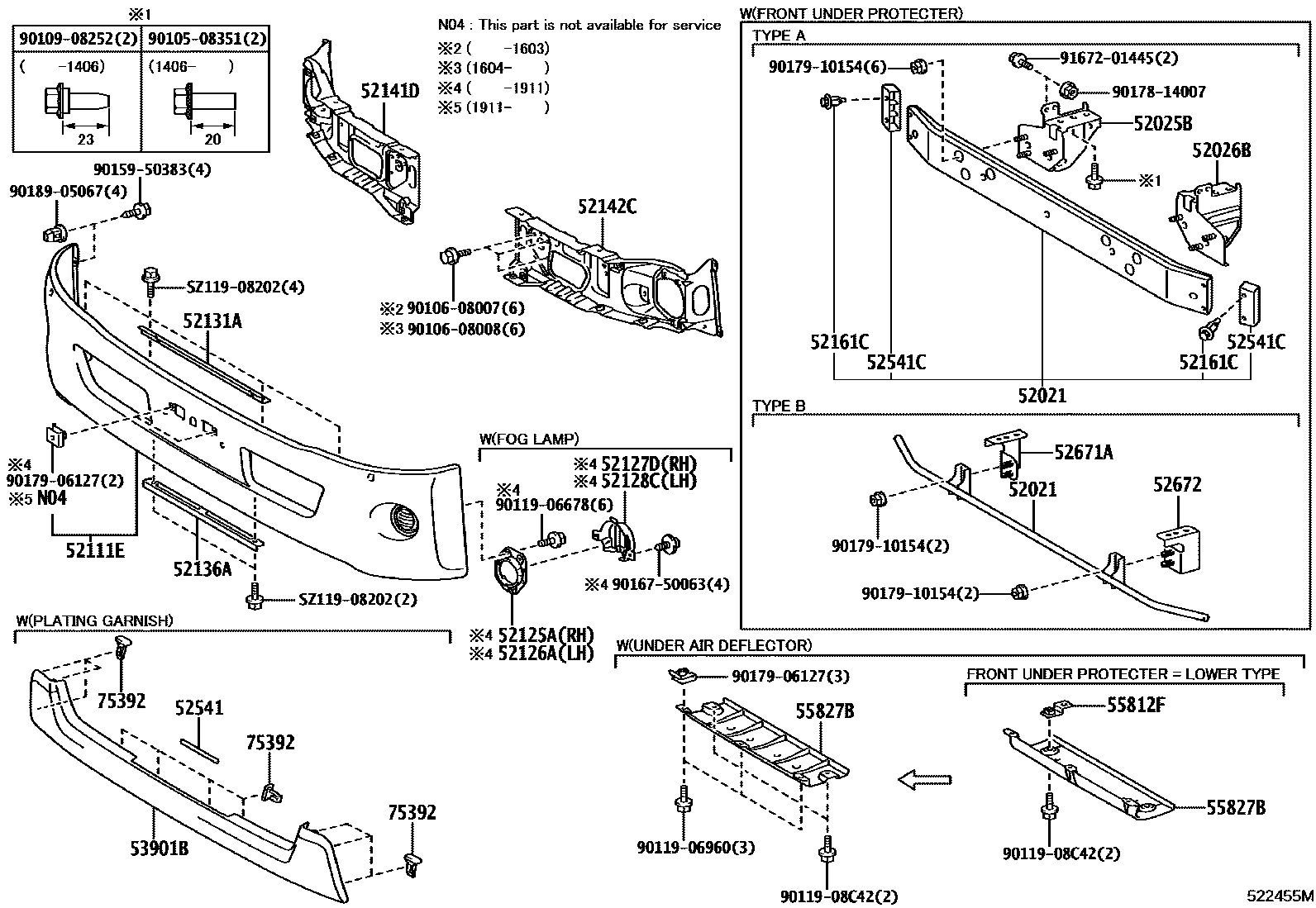

FRONT BUMPER & BUMPER STAY

0001 1 0004 1W(FRONT BUMPER SPOILER)

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-37022iWU710,720,XZU710,720..85T201605-201704

TYPE A:REFER ILLUST.

sub52021-37023

main52021-37022iWU710,720,XZU710,720..85T201605-201704

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER),TYPE A:REFER ILLUST.

sub52021-37023

main52021-37110iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.

main52021-37110iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 RIB,TYPE B:REFER ILLUST.

main52021-37110iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 LUG,TYPE B:REFER ILLUST.

main52021-37110iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.

main52021-37110iWU720,XZU720..75T..GCC201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER),TYPE B:REFER ILLUST.

main52021-37110iXZU710..5F201605-201705

TYPE B:REFER ILLUST.

main52021-37110iXZU710..5F201605-201705

TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.

main52021-37110iXZU710..5F201605-201705

TIRE & DISK WHEEL-750R16-10 RIB,TYPE B:REFER ILLUST.

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-37023iWU710,720,XZU710,720..85T201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-37023iWU710,720,XZU710,720..85T201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

52111EBAR, FRONT BUMPER

main52111-37360iXZU710,720..GEN201107-201505

NO PAINT REQ.

main52111-37360iWU700,710,720;XZU710,720..MTM..GCC201107-202005

main52111-37380iXZU710,720,730..EUR201306-201512

NO PAINT REQ.

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-37020iXZU710,720,730..EUR201306-201512

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-37020iXZU710,720,730..EUR201306-201512

52127DCOVER, FRONT BUMPER HOLE, RH

main81610-37180iXZU710,720,730..EUR201306-201512

52128CCOVER, FRONT BUMPER HOLE, LH

main81620-37180iXZU710,720,730..EUR201306-201512

52131AREINFORCEMENT, FRONT BUMPER

main52131-37110iXZU710..CBU201107-201705

sub52131-37111

main52131-37111iWU710,720;XZU710,720..MTM..GCC201705-202005

52136AREINFORCEMENT, FRONT BUMPER

main52136-37010iWU700,710,720,XZU710,720..MTM..(GCC,GEN)201107-201803

sub52136-37011

main52136-37011iWU710,720;XZU710,720..MTM..GCC201804-202005

52141DSTAY, FRONT BUMPER, RH

main52141-37220iWU700,710,720,XZU710201107-201111

sub52141-37221

main52141-37221iXZU710..CBU201112-201811

sub52141-37222

main52141-37222iWU710,720;XZU710,720..MTM..GCC201812-202005

52142CSTAY, FRONT BUMPER, LH

main52142-37200iWU700,710,720,XZU710201107-201111

sub52142-37201

main52142-37201iXZU710..CBU201112-201811

sub52142-37202

main52142-37202iWU710,720;XZU710,720..MTM..GCC201812-202005

52161CPIECE, FRONT BUMPER

main52161-16010iWU710,720,XZU710,720..85T201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

sub52161-0K040

52541PROTECTOR, FRONT BUMPER

main52541-37010

main52541-35030

52541CPROTECTOR, FRONT BUMPER, NO.1

main52541-37010iWU710,720,XZU710,720..85T201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

52671AEXTENSION, FRONT BUMPER ARM, RH

main52671-37070iXZU710..5F201605-201705

TIRE & DISK WHEEL-750R16-12 LUG

main52671-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-215/75R17.5 126 RIB

main52671-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-10 RIB

main52671-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG

main52671-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 RIB

main52671-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG

main52671-37070iWU720,XZU720..75T..GCC201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

52672EXTENSION, FRONT BUMPER ARM, LH

main52672-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-215/75R17.5 126 RIB

main52672-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-10 RIB

main52672-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG

main52672-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 RIB

main52672-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 LUG

main52672-37070iWU720,XZU720..75T..GCC201605-201705

TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG

main52672-37070iWU720,XZU720..75T..GCC201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

53901BPANEL SUB-ASSY, FRONT VALANCE

55812FBRACKET, VENTILATOR DUCT

main55812-37032iWU710,720,XZU710,720..85T201605-201705

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

55827BDUCT, VENTILATOR AIR GUIDE

main55827-37081iWU710,720,XZU710,720..85T201605-201706

FRONT UNDER PROTECTOR-WITH(INTEGRATED FRONT BUMPER)

75392RETAINER, OUTSIDE MOULDING

main75392-35220

9010508351

main90105-08351

9010608007

main90106-08007

9010608008

main90106-08008

9010908252

main90109-08252

9011906678

main90119-06678

9011906960

main90119-06960

9011908C42

main90119-08C42

9015950383

main90159-50383

9016750063

main90167-50063

9017814007

main90178-14007

9017906127

main90179-06127

9017910154

main90179-10154

9018905067

main90189-05067

9167201445

main91672-01445

SZ11908202

mainSZ119-08202

36 parts on this diagram · 2 diagrams in section
