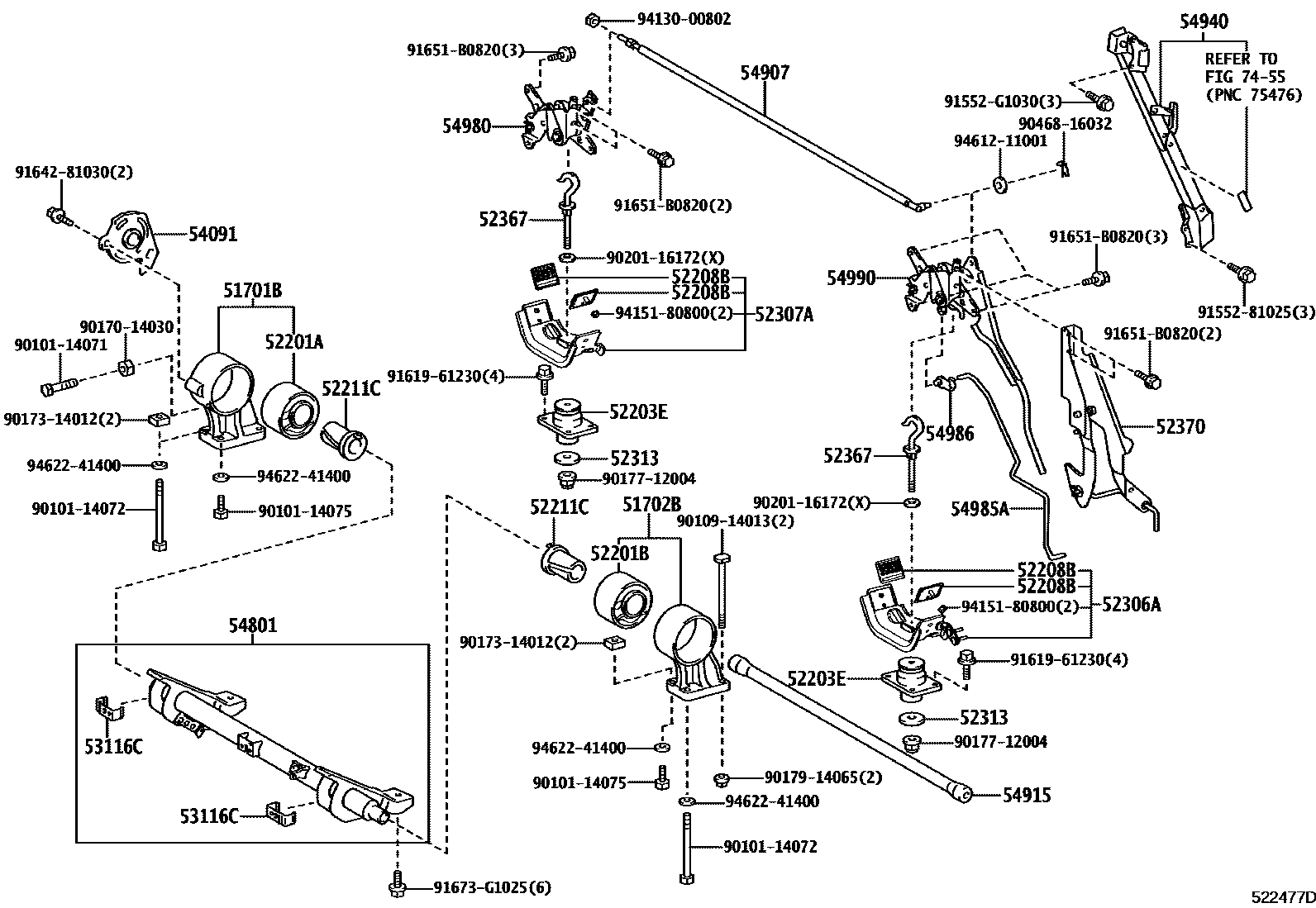

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1

51701BBRACKET SUB-ASSY, CAB FRONT MOUNTING, RH

main51701-37450iXZU710..DCB201107-202005

main51701-37460iXZU710,720,730..EUR201306-201512

main51701-37470iXZU710..CBU201107-202005

main51701-37480iXZU710,720..GEN201107-202005

51702BBRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37370iWU710..RHD201107-202005

main51702-37380iXZU710,720,730..EUR201306-201512

main51702-37390iWU700,710,720,XZU710,720..SCB..MTM..GCC201107-202005

main51702-37400iXZU710,720..GEN201107-202005

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37110iXZU710,720,730..EUR201306-201512

main52201-37120iXZU710..CBU201107-202005

main52201-37130iXZU710,720..GEN201107-202005

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37110iXZU710,720,730..EUR201306-201512

main52201-37120iXZU710..CBU201107-202005

main52201-37130iXZU710..DCB;WU710,720..GEN201107-202005

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37060iXZU710,720..GEN201107-202005

main52203-37070iXZU710..DCB201108-202005

main52203-37080iXZU710,720,730..EUR201306-201512

52208BCUSHION SUB-ASSY, CAB MOUNTING, REAR

main52208-37011iWU700,710,720;XZU710,720..SCB..MTM..GCC201108-202005

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37030iXZU710,720,730..EUR201107-202005

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-37090iXZU710..CBU201107-202005

main52306-37100iWU710,720..GEN..IV3201107-202005

SKD PACKAGE

main52306-37100iWU710,720..GEN..IV3201107-202005

CKD PACKAGE

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-37030iXZU710..CBU201107-202005

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37040iXZU710..CBU201107-202005

52367HOOK, CAB REAR MOUNTING

main52367-37060iXZU710,720..GEN201107-202005

52370LATCH ASSY, CAB MOUNTING SAFETY

main52370-37010iWU700,710,720,XZU710,720..SCB201107-201302

sub52370-37011

main52370-37011iXZU710,720,730..EUR201303-202005

53116CBRACKET, RADIATOR GRILLE, NO.2

main53116-37030iXZU710..CBU201107-202005

54091ARM SUB-ASSY, TILT CAB SPRING SUPPORT, NO.1

main54091-37050iWU710..RHD201107-201112

sub54091-37051

main54091-37051iWU710..RHD201201-202005

main54091-37060iWU700,710,720,XZU710..LHD..SCB201107-201112

sub54091-37061

main54091-37061iXZU710,720..GEN201201-202005

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37230iWU710..RHD201107-202005

main54801-37260iXZU710..CBU201107-202005

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-37040iXZU710..CBU201107-202005

54915SPRING, TILT CAB, NO.1

main54915-37200iWU710..RHD201107-201904

sub54915-37240

main54915-37210iXZU710,720..SCB..MTM..GCC201107-201904

SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)

sub54915-37280

main54915-37220iXZU710..CBU201107-201904

sub54915-37270

main54915-37240iWU710..RHD201905-202005

main54915-37270iXZU710,720..GEN201905-202005

main54915-37280iXZU710,720..GEN201905-202005

SEAT SUSPENSION-WITH(SEAT CUSHION SUSPENSION)

54940STAY ASSY, TILT CAB

main54940-37271iXZU710..CBU201107-201702

sub54940-37272

main54940-37272iWU710,720,XZU710,720..SCB..MTM..(GCC,GEN)201703-201910

sub54940-37273

main54940-37273iWU710,720;XZU710,720..SCB..MTM..GCC201911-202005

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-37040iWU700,710,720;XZU710,720..SCB..MTM..GCC201107-202005

54985AROD, TILT CAB LOCK HANDLE

main54985-37060iXZU710..CBU201107-202005

54986SUPPORT, TILT CAB LOCK

main54986-37030iXZU710..CBU201107-202005

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37080iWU700,710,720,XZU710,720,730..SCB201107-201310

sub54990-37081

main54990-37081iXZU710..CBU201311-202005

7455

9010114071

main90101-14071

9010114072

main90101-14072

9010114075

main90101-14075

9010914013

main90109-14013

9017014030

main90170-14030

9017314012

main90173-14012

9017712004

main90177-12004

9017914065

main90179-14065

9020116172

main90201-16172

9046816032

main90468-16032

9155281025

main91552-81025

91552G1030

main91552-G1030

9161961230

main91619-61230

9164281030

main91642-81030

91651B0820

main91651-B0820

91673G1025

main91673-G1025

9413000802

main94130-00802

9415180800

main94151-80800

9461211001

main94612-11001

9462241400

main94622-41400

43 parts on this diagram · 3 diagrams in section
