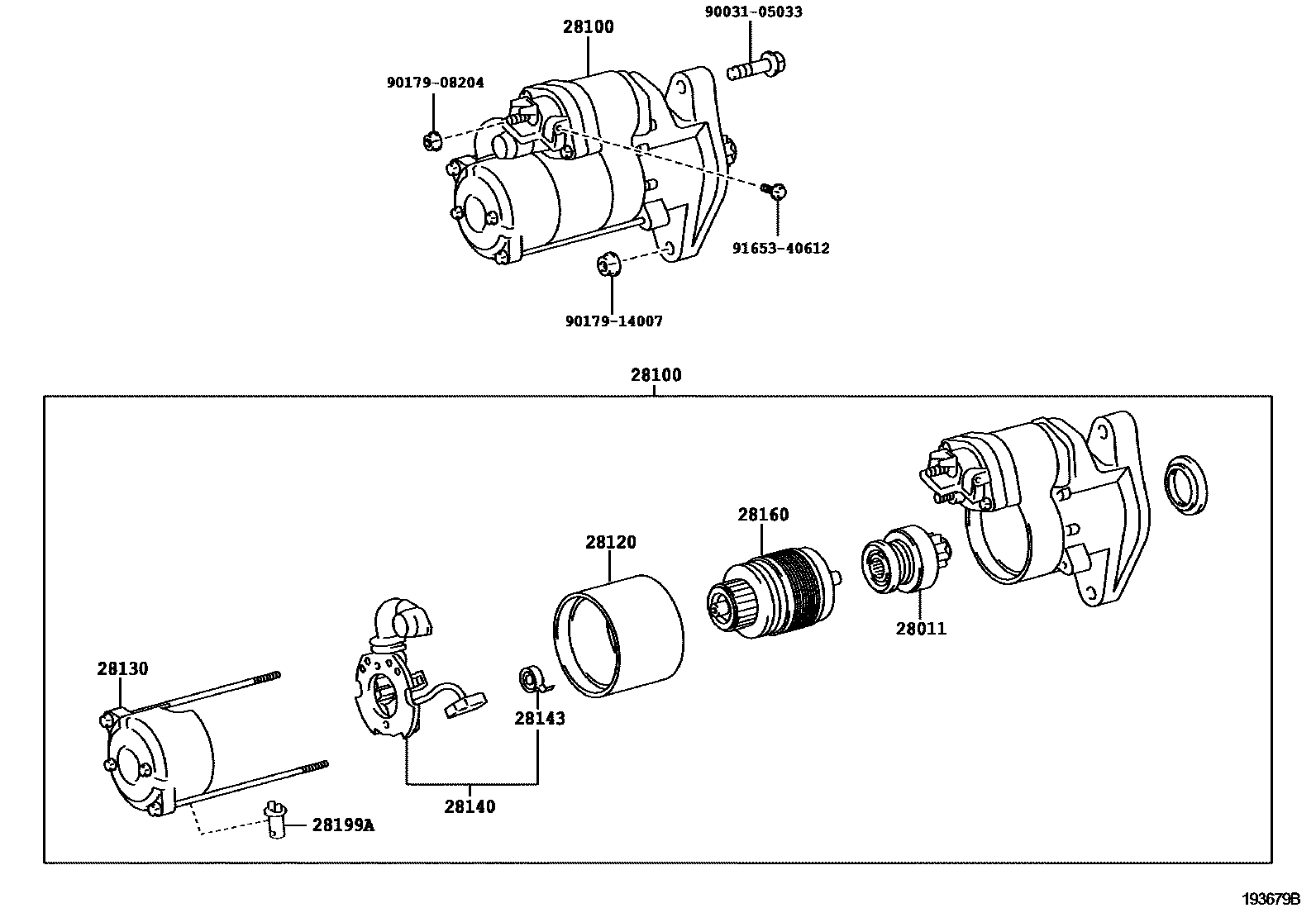

STARTER

0001 124V 5.0KW 0003 124V 4.5KW 0005 124V 4.5KW 0007 124V 4.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-54010iW04D..WU710,720..LHD..(75T,85T)201107-202005

main28011-78090iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

sub28011-78091

main28011-78111iN04C..XZU710,720,730..EUR201107-201512

sub28011-78112

main28011-78240iN04C..XZU710,720..GEN201911-202011

main28011-78241iN04C..XZU710,720..GEN202011

28100STARTER ASSY

main28100-78090iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

24V 4.5KW

main28100-78113iN04C..XZU710,720,730..EUR201107-201512

24V 5.0KW

main28100-78114iN04C..XZU710,720..MTM..GCC201604-201609

24V 5.0KW

main28100-78115iN04C..XZU710,720..MTM..GCC201610-201711

24V 5.0KW

main28100-78160iW04D..WU710,720..LHD..(75T,85T)201107-202005

24V 4.5KW

main28100-78240iN04C..XZU710,720..GEN201911

24V 4.0KW

main28100-78370iN04C..XZU710,720..MTM..GCC201711-202005

24V 5.0KW

28120YOKE ASSY, STARTER

main28120-56221iW04D..WU710,720..LHD..(75T,85T)201107-202005

main28120-78090iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

main28120-78111iN04C..XZU710,720..MTM..GCC201107-202005

main28120-78240iN04C..XZU710,720..GEN201911-202112

main28120-78241iN04C..XZU710,720..GEN202112

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-56260iW04D..WU710,720..LHD..(75T,85T)201107-202005

main28130-78110iN04C..XZU710,720,730..EUR201107-201512

28140HOLDER ASSY, STARTER BRUSH

main28140-77090iW04D..WU710,720..LHD..(75T,85T)201107-202005

main28140-78110iN04C..XZU710,720,730..EUR201107-201512

main28140-78240iN04C..XZU710,720..GEN201911

mainS281401600iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

28143SPRING, STARTER BRUSH

mainS281431200×4iN04C..XZU710..CBU201107-201505

28160ARMATURE ASSY, STARTER

main28160-77090iW04D..WU710,720..LHD..(75T,85T)201107-202005

main28160-78110iN04C..XZU710,720,730..EUR201107-201512

main28160-78111iN04C..XZU710,720..MTM..GCC201604-202005

sub28160-78112

main28160-78240iN04C..XZU710,720..GEN201911

mainS281601690iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

28199COVER, STARTER

main28199-46080iW04D..WU710,720..LHD..(75T,85T)201107-202005

28199APROTECTOR, DUST STARTER

main28199-58020iW04D..WU710,720..LHD..(75T,85T)201107-202005

mainS281991100×2iN04C..XZU710,720..GCC..IV3201107-201604

9003105033

main90031-05033

9017908204

main90179-08204

9017914007

main90179-14007

9165340612

main91653-40612

13 parts on this diagram · 4 diagrams in section
