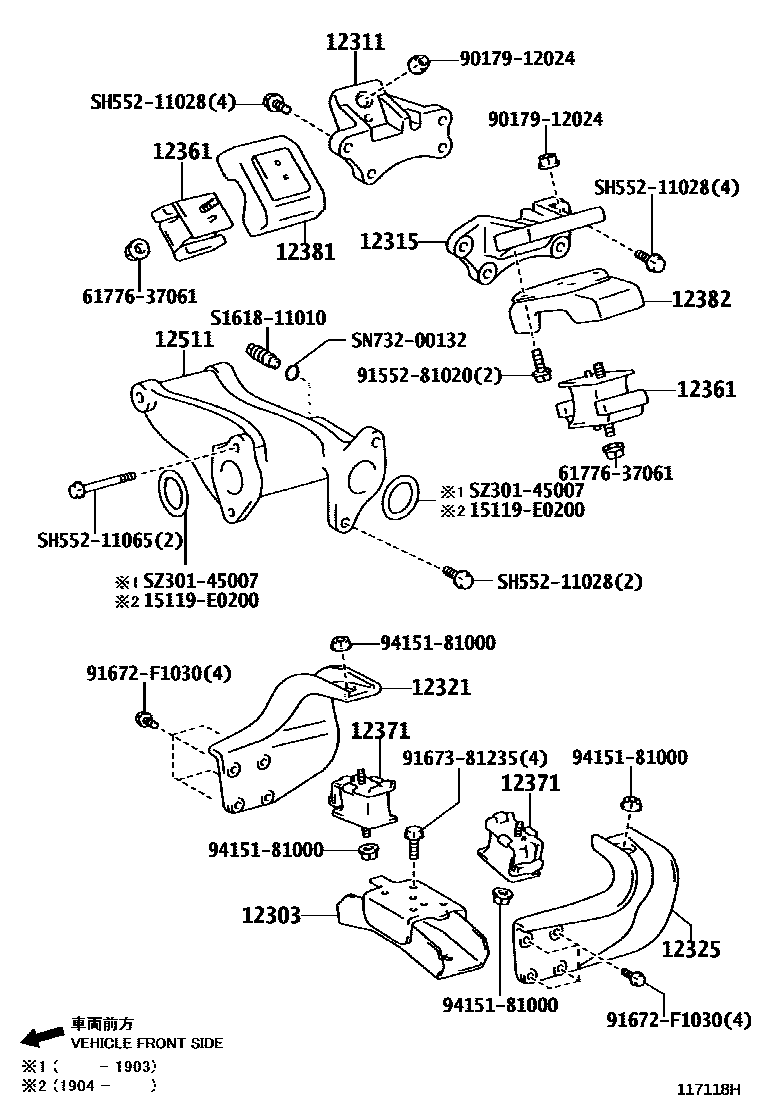

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-78010iW04D..WU700,710,720201107-202203

sub12303-78011

main12303-78011iN04C..XZU710,720..GEN202204

main12303-78030iN04C..XZU710..CBU201107-201505

sub12303-78031

main12303-78060iN04C..XZU710,720,730..EUR201306-201512

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-E0230iN04C..XZU710,720,730..EUR201107-201903

sub12311-E0231

main12311-E0231iN04C..XZU710,720..MTM..GCC201904-202005

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-78110iN04C..XZU710,720..MTM..GCC201904-202005

mainS123151940iW04D..WU700,710,720201107-202005

mainS123152000iN04C..XZU710..CBU201107-201903

sub12315-78110

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-78171iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

main12321-78231iW04D..WU710,720..6F201107-202005

main12321-78231iN04C..XZU710,720,730..EUR201211-202005

TYPE D:REFER ILLUST.

main12321-78331iN04C..XZU710..CBU201107-201505

TYPE B:REFER ILLUST.

main12321-78481iW04D..WU710,720..LHD..75T..GEN201107-202005

main12321-78481iN04C..XZU710..5F..GCC201108-202005

TYPE A:REFER ILLUST.

main12321-78620iN04C..XZU710,720..GEN201911

TYPE E:REFER ILLUST.

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-78151iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

main12325-78211iN04C..XZU710,720..6F..GCC201211-202005

TYPE D:REFER ILLUST.

main12325-78211iW04D..WU710,720..6F201107-202005

main12325-78312iN04C..XZU710..CBU201107-201505

TYPE B:REFER ILLUST.

main12325-78451iW04D..WU710,720..LHD..75T..GEN201107-202005

main12325-78451iN04C..XZU710..5F..GCC201108-202005

TYPE A:REFER ILLUST.

main12325-78620iN04C..XZU710,720..GEN201911

TYPE E:REFER ILLUST.

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58130iN04C..XZU710201107-201110

sub12361-58131

main12361-58131iN04C..XZU710,720..GEN201111-202005

main12361-78080iW04D..WU710,720..LHD..(75T,85T)201107-201110

sub12361-78081

main12361-78081iW04D..WU710,720..LHD..(75T,85T)201111-202005

main12361-78110iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-201110

sub12361-78111

main12361-78111iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201111-202005

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-78010iW04D..WU700,710,720201107-201905

NO.1 & NO.2

sub12371-78060

main12371-78010iN04C..XZU710,720,730..EUR201306-201512

NO.1

sub12371-78060

main12371-78041iN04C..XZU710,720,730..EUR201306-201512

NO.2

main12371-78060iN04C..XZU710,720..MTM..GCC201906-202005

NO.1 & NO.2

12381STABILIZER, ENGINE MOUNTING

main12381-58011iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

main12381-78030iW04D..WU710,720..LHD..(75T,85T)201107-201505

sub12381-78032

main12381-78032iW04D..WU710,720..LHD..(75T,85T)201506-202005

main12381-78040iN04C..XZU710..CBU201107-202005

12382STABILIZER, ENGINE MOUNTING, LH

main12381-78040iN04C..XZU710,720..MTM..GCC201107-202005

main12382-78010iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

main12382-78040iW04D..WU710,720..LHD..(75T,85T)201107-202005

12511BRACKET, ALTERNATOR, NO.1

mainS125081660iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS125082080iW04D..WU710,720..LHD..(75T,85T)201107-202005

15119E0200GASKET, OIL PUMP COVER

main15119-E0200

6177637061STRENGTH, QUARTER PANEL HORIZONTAL, LOWER CENTER RH

main61776-37061

9017912024

main90179-12024

9155281020

main91552-81020

91672F1030

main91672-F1030

9167381235

main91673-81235

9415181000

main94151-81000

S161811010

mainS1618-11010

SH55211028

mainSH552-11028

SH55211065

mainSH552-11065

SN73200132

mainSN732-00132

SZ30145007

mainSZ301-45007

22 parts on this diagram · 5 diagrams in section
